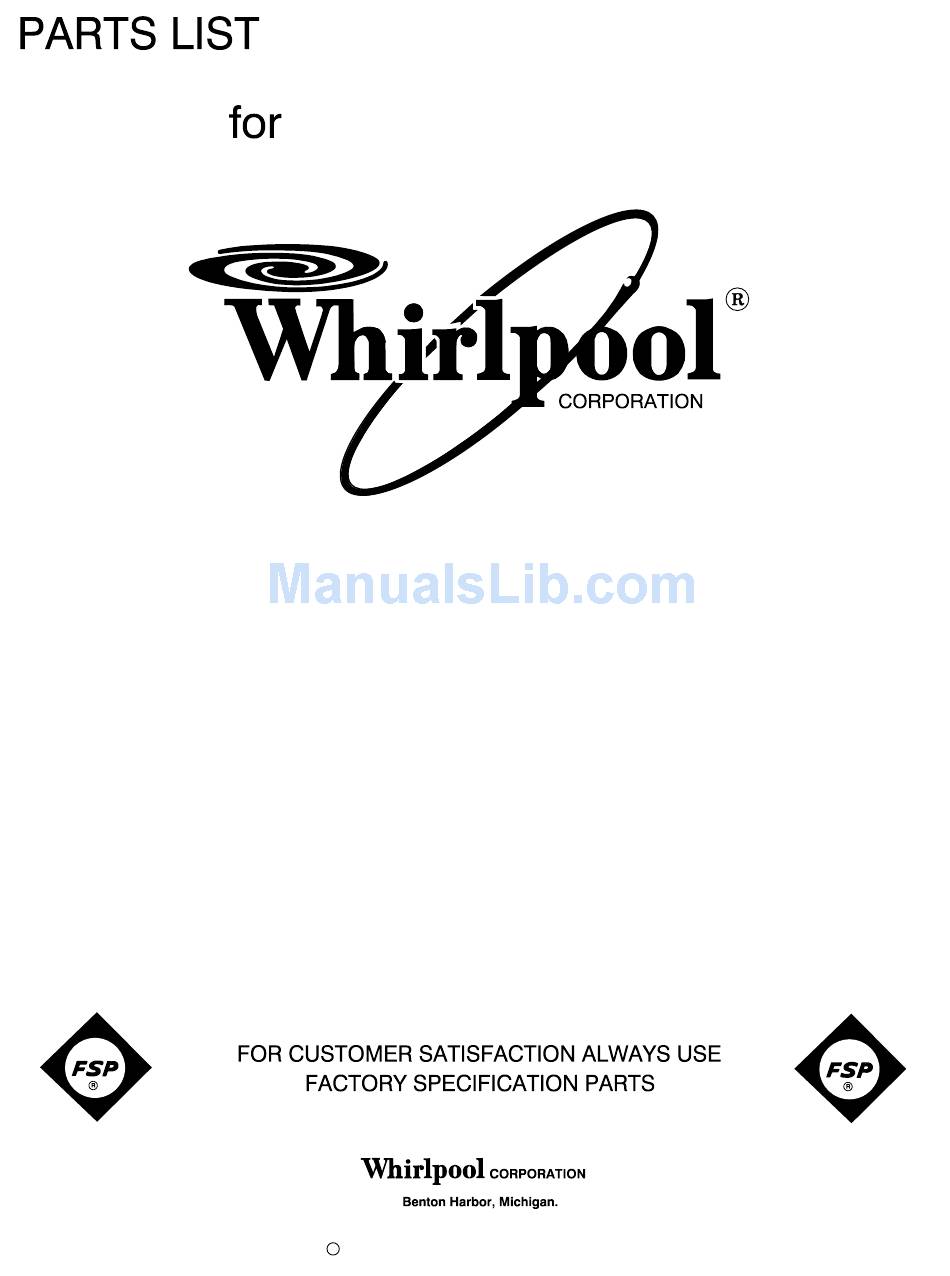

- Page 1 COMMERCIAL GAS DRYER MODELS GCGM2991TQ0 (WHITE) GCGM2991TQ1 (WHITE) 2008 WHIRLPOOL CORPORATION 11−08 Litho in U.S.A. (LT) (psw) Part No. W10119636 Rev. B...
- Page 2 TOP AND CONSOLE PARTS For Model: GCGM2991TQ0,GCGM2991TQ1 (White) (White) W10119636...
- Page 3 TOP AND CONSOLE PARTS For Model: GCGM2991TQ0,GCGM2991TQ1 (White) Illus. Part DESCRIPTION Literature Parts 8527907 Use & Care Guide 8576818 Wiring Diagram 8577213 Instructions, Installation W10119636 Repair Parts List 8283378 Cover, Lint Screen 8316433 Pushbutton 8316437 Switch, Pushbutton 357572 Clip, Ground 3949737 End Cap (R.H.)
-
Page 4: Cabinet Parts
CABINET PARTS For Model: GCGM2991TQ0,GCGM2991TQ1 (White) (White) W10119636... - Page 5 3396795 Cover, Block 238088 Hinge, Top (2) 3406109 Door Switch Assembly 3401401 Cord, Power 341029 Clamp, Pipe (Rear) CABINET PARTS For Model: GCGM2991TQ0,GCGM2991TQ1 (White) (White) Illus. Part DESCRIPTION 342055 Screw, 8−18 x 1/2 98234 Clip, Ground (2) 3406129 Seal & Bearing...
- Page 6 BULKHEAD PARTS For Model: GCGM2991TQ0,GCGM2991TQ1 (White) (White) W10119636...
- Page 7 Illus. 15) 3387134 Thermostat, Internal Bias 3406022 Bracket, Bulkhead 694089 Wheel, Blower (Includes Illus. 19) 8577230 Housing, Blower BULKHEAD PARTS For Model: GCGM2991TQ0,GCGM2991TQ1 (White) (White) Illus. Part DESCRIPTION 3398161 Clip 343641 Screw, 10−16 x 1/2 8530285 Box, Heater 3403140 Thermostat,...
-
Page 8: Burner Assembly
3401771 BURNER ASSEMBLY For Model: GCGM2991TQ0,GCGM2991TQ1 (White) (White) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−128−A W10119636... - Page 9 3401771 BURNER ASSEMBLY For Model: GCGM2991TQ0,GCGM2991TQ1 USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES Illus. Part Following Parts Not Illustrated (White) (White) DESCRIPTION 1 3401771 Burner Assembly 60 Hz.
