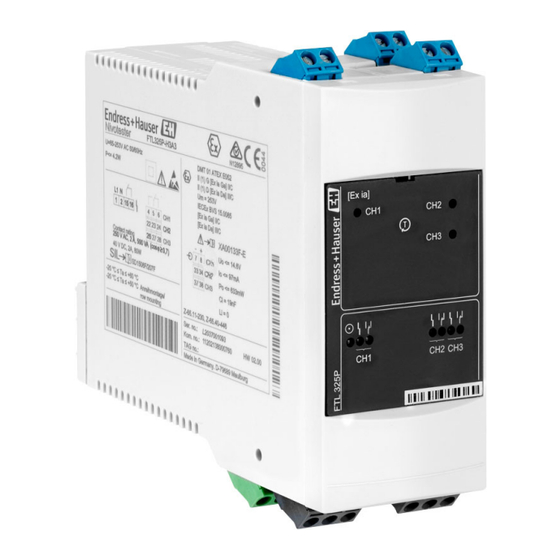

Endress+Hauser Nivotester FTL325P Operating Instructions Manual

3-channel level detector with pfm input and intrinsically safe signal circuit for connecting to liquiphant and soliphant sensors
Hide thumbs Also See for Nivotester FTL325P:
Table of Contents

Advertisement

Quick Links

BA01970F/00/EN/01.19
71441905
2019-06-28
Products
Operating Instructions
Nivotester FTL325P, 3-channel
Vibronic
Level detector with PFM input and intrinsically safe
signal circuit for connecting to Liquiphant and Soliphant
sensors
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Nivotester FTL325P

Summary of Contents for Endress+Hauser Nivotester FTL325P

  • Page 1 Products Solutions Services BA01970F/00/EN/01.19 71441905 2019-06-28 Operating Instructions Nivotester FTL325P, 3-channel Vibronic Level detector with PFM input and intrinsically safe signal circuit for connecting to Liquiphant and Soliphant sensors...
  • Page 2 Nivotester FTL325P, 3-channel Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    Nivotester FTL325P, 3-channel Table of contents Table of contents About this document ....4 Repair ......37 Document function .

  • Page 4: About This Document

    About this document Nivotester FTL325P, 3-channel About this document Document function These Operating Instructions provide all of the information that is required in the various phases of the life cycle of the device. Symbols 1.2.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury.

  • Page 5: Supplementary Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number from nameplate • Endress+Hauser Operations app: Enter serial number from nameplate. 1.3.1 Standard documentation Technical Information (TI) Planning aid—contains technical data for planning and ordering information.

  • Page 6: Basic Safety Instructions

    Personnel must follow instructions and comply with general policies. Designated use • Use only as a transmitter supply unit • Use only for point level switches from Endress+Hauser with two-wire-PFM signal • Use only tools that have been insulated against ground • Use only original parts 2.2.1...

  • Page 7: Product Safety

    The device meets the legal requirements of the applicable EU Directives. These are listed in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. 2.5.2 EAC conformity The device meets the legal requirements of the applicable EAC Directives.

  • Page 8: Incoming Acceptance And Product

     All the information about the measuring device and all associated Technical Documentation are displayed. ‣ Enter the serial number from the nameplate in the Endress+Hauser Operations app.  All the information about the measuring device and all associated Technical Documentation are displayed.

  • Page 9: Storage, Transport

    Nivotester FTL325P, 3-channel Incoming acceptance and product identification 4.2.1 Nameplate Ser. no.: Kom. no.: TAG no.: A0039180  2 Nameplate Manufacturer' s logo, product name Supply voltage Electrical connection Temperature specifications and reference to additional safety-related documentation (only for certified device...

  • Page 10: Installation

    Installation Nivotester FTL325P, 3-channel Installation Mounting conditions • If using outside the hazardous area, mount the device in a cabinet. • Mount the device so that it is protected against weather and impact. If operating outdoors and in warmer climates, avoid direct sunlight.
  • Page 11 Nivotester FTL325P, 3-channel Installation 5.2.2 Vertical orientation 50 (2) £ A0026420  4 Minimum spacing, vertical orientation. Unit of measurement mm (in) Connection of another device type 5.2.3 Mounting the device A0039139  5 Mounting; DIN rail as per EN 60715 TH35-7.5/EN 60715 TH35-15...

  • Page 12: Post-Installation Check

    Installation Nivotester FTL325P, 3-channel 5.2.4 Removing the device L– FTL325 A0039140  6 Removing Remove from DIN rail. For quick replacement of devices without a cable, remove the terminal strips. Post-installation check  Is the measuring device undamaged (visual inspection)? ...

  • Page 13: Electrical Connection

    Nivotester FTL325P, 3-channel Electrical connection Electrical connection Connection conditions WARNING Risk of explosion due to faulty connection. ‣ Observe applicable national standards. ‣ Comply with the specifications in the Safety Instructions (XA). ‣ Check to ensure that the power supply matches the information on the nameplate.
  • Page 14 Electrical connection Nivotester FTL325P, 3-channel 6.2.2 Connecting the sensor – A0039153  8 Connecting the sensor to the Nivotester Connectable sensors: • Liquiphant FTL51B/62/64 with FEL67 • Liquiphant M FTL50(H), FTL51(H), FTL51C with FEL57 • Liquiphant S FTL70/71 with FEL57 •...

  • Page 15: Special Connection Instructions

    Nivotester FTL325P, 3-channel Electrical connection Special connection instructions 6.3.1 Connecting the sensors for two-point control Δs 33 34 37 38 33 34 37 38 A0039179  9 Connecting the sensors for two-point control Δs 6.3.2 Connecting the outputs 4 5 6...

  • Page 16: Operation Options

    Operation options Nivotester FTL325P, 3-channel Operation options Operation concept Onsite configuration with DIL switches behind fold-down front panel. Opening the front panel A0039235  11 Opening the front panel Display elements A0039237  12 Nivotester, light emitting diodes (LEDs) Green LED; ready for operation...

  • Page 17: Operating Elements

    Nivotester FTL325P, 3-channel Operation options Operating elements A0026422  13 Operating elements Test button, can also be operated when the front panel is closed DIL switch, single-channel (CH1): MAX/MIN, fault ON/OFF DIL switch, 2-/3-channel (CH2+CH3): MAX/MIN Switch for MODE settings...

  • Page 18: Commissioning

    Commissioning Nivotester FTL325P, 3-channel Commissioning Function check  Perform installation check.  Perform function check. Setting the functions s CH2+CH3, CH1 / s CH2+CH3 CH2 / CH1 + CH2 CH1+CH2+CH3 A0039195  14 Switch for setting the functions DIL switch CH1 •...
  • Page 19 Nivotester FTL325P, 3-channel Commissioning 8.2.1 Switch position on electronic insert A0039743  15 Switch position on electronic insert (FEL67) A0039561  16 Switch position on electronic insert FEL57 STD (standard) EXT (extended) This setting is only relevant for the function test.
  • Page 20 Commissioning Nivotester FTL325P, 3-channel 8.2.2 CH2, MAX safety mode without fault signaling CH1 MODE 2 CH2(+3) ca. 150 Hz 22 23 24 15 16 26 27 28 ca. 50 Hz 22 23 24 2 15 16 26 27 28 3...
  • Page 21 Nivotester FTL325P, 3-channel Commissioning Point level at one tank 1 sensor connected at input channel 2 (terminals 33 and 34) Relay outputs of output channels 2 and 3 switch simultaneously Fault signaling for channel 1 must be switched off. 8.2.4...
  • Page 22 Commissioning Nivotester FTL325P, 3-channel 8.2.5 CH1 + CH2, MAX safety mode without fault signaling CH1 MODE 2 CH1, CH2(+3) CH1, CH2 ca. 150 Hz 15 16 22 23 24 26 27 28 ca. 50 Hz 22 23 24 15 16...
  • Page 23 Nivotester FTL325P, 3-channel Commissioning 8.2.6 CH1 + CH2, MIN safety mode with fault signaling CH1 MODE 2 CH1, CH2(+3) CH1, CH2 ca. 50 Hz 15 16 22 23 24 26 27 28 ca. 150 Hz 22 23 24 15 16...
  • Page 24 Commissioning Nivotester FTL325P, 3-channel 8.2.7 CH1 + CH2, MIN safety mode without fault signaling CH1 MODE 2 CH2(+3) CH1, CH2 ca. 50 Hz 15 16 22 23 24 26 27 28 ca. 150 Hz 22 23 24 15 16 26 27 28...
  • Page 25 Nivotester FTL325P, 3-channel Commissioning 8.2.8 CH1 + CH2 + CH3, MAX safety mode with fault signaling CH1 MODE 3 CH2(+3) CH1, CH2 ca. 150 Hz 15 16 22 23 24 26 27 28 ca. 50 Hz 22 23 24 15 16...
  • Page 26 Commissioning Nivotester FTL325P, 3-channel 8.2.9 CH1 + CH2 + CH3, MAX safety mode without fault signaling MODE 3 CH1...3 CH1, , CH3 ca. 150 Hz 15 16 22 23 24 26 27 28 ca. 50 Hz 22 23 24 15 16...
  • Page 27 Nivotester FTL325P, 3-channel Commissioning 8.2.10 CH1 + CH2 + CH3, MIN safety mode with fault signaling CH1 MODE 3 CH1...3 CH1, , CH3 ca. 50 Hz 15 16 22 23 24 26 27 28 ca. 150 Hz 22 23 24...
  • Page 28 Commissioning Nivotester FTL325P, 3-channel 8.2.11 CH1 + CH2 + CH3, MAX safety mode without fault signaling MODE 3 CH1...3 CH1, , CH3 ca. 50 Hz 15 16 22 23 24 26 27 28 ca. 150 Hz 22 23 24 15 16...
  • Page 29 Nivotester FTL325P, 3-channel Commissioning 8.2.12 CH2 + CH3 (Δs), MAX safety mode without fault signaling CH1 MODE 1 – 33 34 – 37 38 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24...
  • Page 30 Commissioning Nivotester FTL325P, 3-channel 8.2.13 CH2 + CH3 (Δs), MIN safety mode without fault signaling CH1 MODE 1 – 33 34 – 37 38 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24...
  • Page 31 Nivotester FTL325P, 3-channel Commissioning 8.2.14 CH2 - CH3 (Δs) + CH1, MAX safety mode with fault signaling MODE 1 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24...
  • Page 32 Commissioning Nivotester FTL325P, 3-channel 8.2.15 CH2 + CH3 (Δs) + CH1, MAX safety mode without fault signaling CH1 MODE 1 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24...
  • Page 33 Nivotester FTL325P, 3-channel Commissioning 8.2.16 CH2 - CH3 (Δs) + CH1, MIN safety mode with fault signaling MODE 1 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24...
  • Page 34 Commissioning Nivotester FTL325P, 3-channel 8.2.17 CH2 + CH3 CH1(Δs), MIN safety mode without fault signaling MODE 1 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 22 23 24 26 27 28...

  • Page 35: Function Testing Of Measuring System

    Nivotester FTL325P, 3-channel Commissioning Function testing of measuring system Function testing of measuring system without a change in level • Function testing of Liquiphant M/S FTL50/51/50H/51H/51C; FTL70/71 with electronic insert FEL57, see KA00147F • Proof testing of Liquiphant FTL51B with electronic insert FEL67 as per SIL...

  • Page 36: Diagnostics And Troubleshooting

    Diagnostics and troubleshooting Nivotester FTL325P, 3-channel Diagnostics and troubleshooting Does not switch • Possible cause: no supply voltage present (green LED is not lit) Corrective measure: check supply voltage • Cause: electronics are defective Corrective measure: replace Nivotester • Cause: welded contacts (following a short-circuit) Corrective measure: replace Nivotester;...

  • Page 37: Repair

    WARNING Limitation of electrical safety due to incorrect connection! Risk of explosion! ‣ Only specialist personnel or the Endress+Hauser service team may carry out repairs on Ex-certified devices. ‣ Relevant standards and national regulations on hazardous areas, safety instructions and certificates must be observed.

  • Page 38: Disposal

    (WEEE), our products are marked with the depicted symbol in order to minimize the disposal of WEEE as unsorted municipal waste. Such products may not be disposed of as unsorted municipal waste and can be returned to Endress+Hauser for disposal at conditions stipulated in our General Terms and Conditions or as individually agreed.

  • Page 39: Technical Data

    Nivotester FTL325P, 3-channel Technical data Technical data 13.1 Supply voltage 13.1.1 Alternating current version (AC) Voltage range: 85 to 253 V , 50/60 Hz 13.1.2 Direct current version (DC) • Voltage range: 20 to 30 V / 20 to 60 V •...

  • Page 40: Index

    Index Nivotester FTL325P, 3-channel Index About this document ......4 Types of information ......4 CE mark .
  • Page 44 *71441905* 71441905 www.addresses.endress.com...
