Emerson Fisher FIELDVUE DVC6200 Mounting Instructions

Mounting Instructions
D103449X012
May 2010

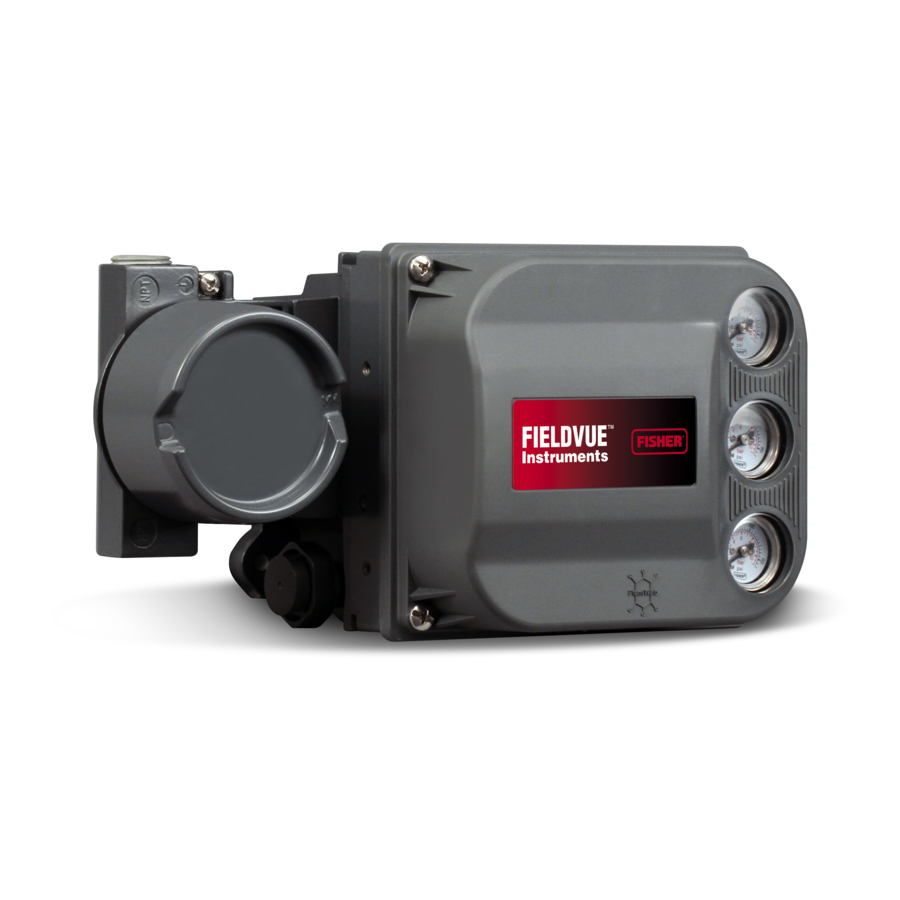

Use these instructions to mount a Fisher
DVC6200 or DVC2000 digital valve controller on Fisher
1051 and 1052 Size 40-70 actuators.
Avoid personal injury or property damage from
sudden release of process pressure or bursting of
parts. Before performing any installation
operations:

Always wear protective clothing, gloves, and
eyewear.

Do not remove the actuator from the valve while
the valve is still pressurized.

Disconnect any operating lines providing air
pressure, electric power, or a control signal to
the actuator. Be sure the actuator cannot
suddenly open or close the control valve.

Use bypass valves or completely shut off the
process to isolate the control valve from
process pressure. Relieve process pressure
from both sides of the control valve.

Vent the pneumatic actuator loading pressure
and relieve any actuator spring
precompression.

Use lock-out procedures to be sure that the
above measures stay in effect while you work
on the equipment.

Check with your process or safety engineer for
any additional measures that must be taken to
protect against process media.
Refer to figure 2 and the parts list for mounting parts
identification. Refer to the DVC6200 or DVC2000 digital
valve controller instruction manual for digital valve
controller parts identification. Refer to the appropriate
actuator instruction manual for actuator installation,
operation, maintenance, and parts identification.
Figure 1 shows the arced feedback assembly.
1. Isolate the control valve from the process line
pressure and release pressure from both sides of the
valve body. Shut off all pressure lines to the actuator,
releasing all pressure from actuator.
Use lock-out procedures to be sure that the above
measures stay in effect while you work on the
equipment.
______________________________________________________________________________________________________
www.Fisher.com
DVC6200 or DVC2000 Digital
Valve Controller on 1051 and 1052
Size 40-70 Actuators (Window Mount)
®
FIELDVUE™
2. Remove the cover plate screws and cover plate from
the actuator, if present.
3. Install the cam (key 1) on to the lever of actuator using
hex head mach screws (key 2). It will be necessary for
use of the arced feedback mechanism. Consult the
appropriate actuator instruction manual for proper
actuator disassembly and reassembly. Ensure that the
cam is oriented as shown in figure 2.
4. Attach the digital valve controller to the arced
feedback assembly (key 3) and tighten the hex socket
cap screws (key 4).
5. Attach the arced feedback assembly (key 3), along
with the digital valve controller to the actuator yoke using
hex socket cap screws (key 5) as shown in figure 2.
Ensure that the roller of arced feedback assembly is
centered and resting on the cam surface.
6. Make pneumatic and electrical connections to the
digital valve controller as described in the digital valve
controller instruction manual.
7. It may be necessary to fine tune the placement of the
cam so that the digital valve controllers receives the
proper feedback.
8. Setup and calibrate the digital valve controller as
described in instruction manual or quick start guide.
For additional information concerning mounting, setup,
calibration, and maintenance of the DVC6200 or
DVC2000 digital valve controller, refer to the appropriate
instruction manual.
Note
Neither Emerson, Emerson Process
Management, nor any of their affiliated
entities assumes responsibility for the
selection, use or maintenance of any
product. Responsibility for the selection,
use and maintenance of any product
remains with the purchaser and end user.
