Clutch drum

12.1 Dismantling

Separate the engine body and shaft as described in "11.1
Dismantling" on page 48.
1. Loosen the two screws (A) holding the clutch cover
against the shaft. See figure 1.
2. Loosen the screw (B) preventing the shaft from
rotating. See figure 1.
3. Pull away the clutch cover, the clutch drum and the
drive axle from the shaft.
4. The clutch drum is tightly screwed to the drive axle.
Hold the drive axle in a vice and remove the clutch
drum using the special tool (See service tools pos.
12). See figure 2.
5. Remove the circlip that holds the ball bearing in
place in the clutch housing. See figure 3. Use circlip
pliers.
6. Heat the clutch housing to approximately 110 °C
using a hot air gun.
7. Knock the clutch housing against a wooden block so
that the bearing falls out. See figure 4.
52 – English
12 Clutch drum

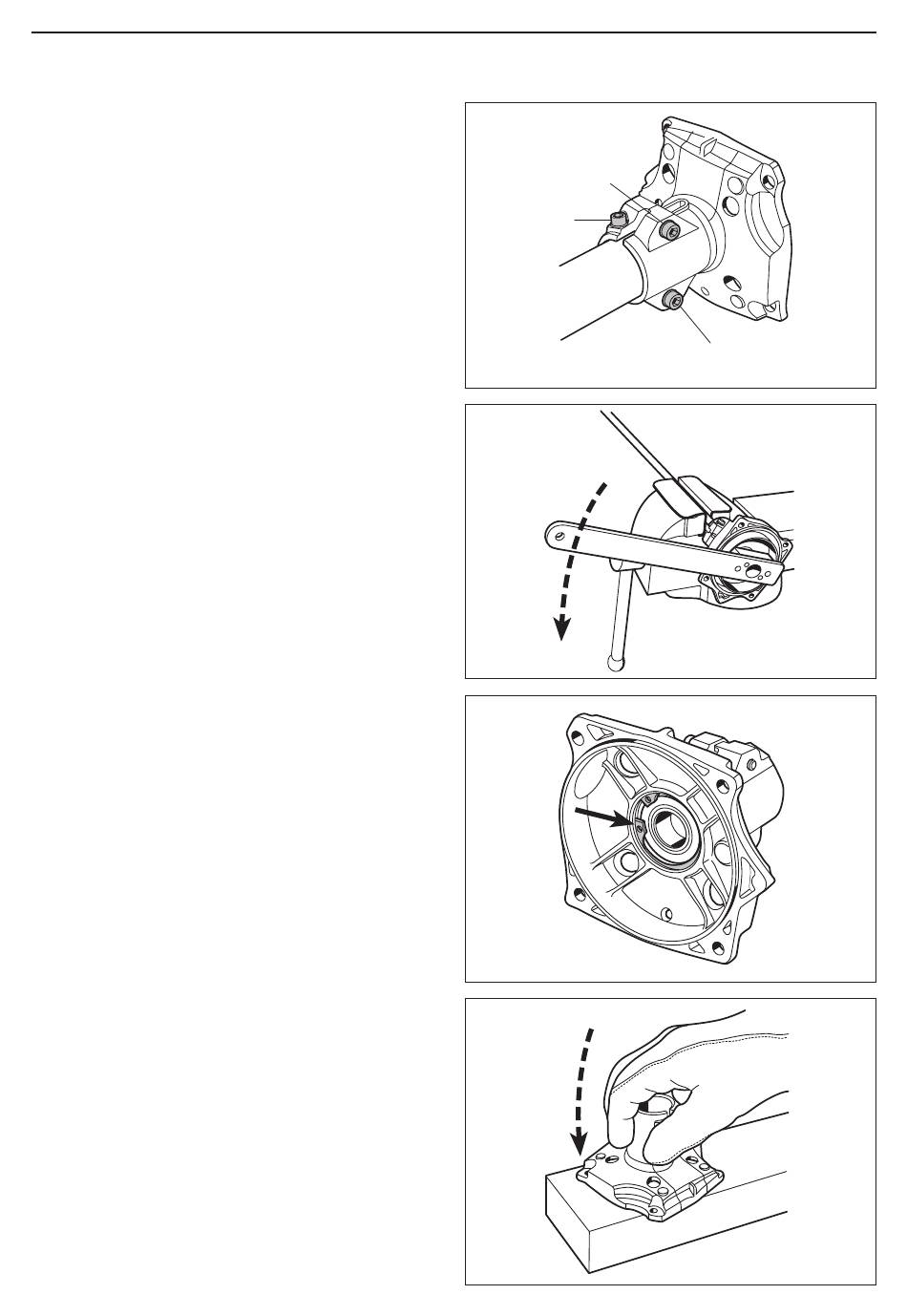

Fig. 1
Fig. 2
Fig. 3
Fig. 4
A
B
A
