Vulcan-Hart KE SERIES Specifications

SpECIFICATIONS:
(6) (12) gallon capacity, /
2
3
counter tilting kettle, Vulcan-Hart Model No. (K6ETT) (K12ETT).
Ellipsoidal bottom kettle liner formed and fully welded type 316
and type 304 stainless steel designed to operate at a maximum
of 50 PSI (3.4 kg/cm ). Jacket contains water, rust inhibitor
2
and antifreeze mixed to protect to 30° below zero. Removable
electric elements are field serviceable. Stainless steel tilt handle
can be mounted on either the right or left. Two position tilt lock,
upright, 100° for emptying and cleaning. Stainless steel water
tight control housing located on the right. Controls include a
power switch, indicator light, solid state temperature control,
vacuum/pressure gauge, pressure relief valve, low water light
and low water shut-off. Mounting base includes lugs for bolt-
ing to counter top or floor stand. Shipped for 208/60-50/3
electrical service. Can be field converted to 208/60-50/1 and
240/60-50/3 and 240/60-50/1.
Exterior dimensions:
K6ETT: 21 / "w x 15 / "d x 30
3 1
4 2
K12ETT: 25 / "w x 19 / "d x 33"h.
1 1
2 2
UL listed. UL Classified for sanitation in accordance with
ANSI/NSF Standard #4. Meets ASME code.
VULCAN-HART COmpANy, p.O. BOX 696, LOUISVILLE, Ky 40201, TEL. 1-800-814-2028
F-37450 (09-08)
jacketed self-contained electric
/ "h.
1
2
502-778-2791 QUOTE & ORDER FAX: 1-800-444-0602
Item # _____________________________
KE SERIES

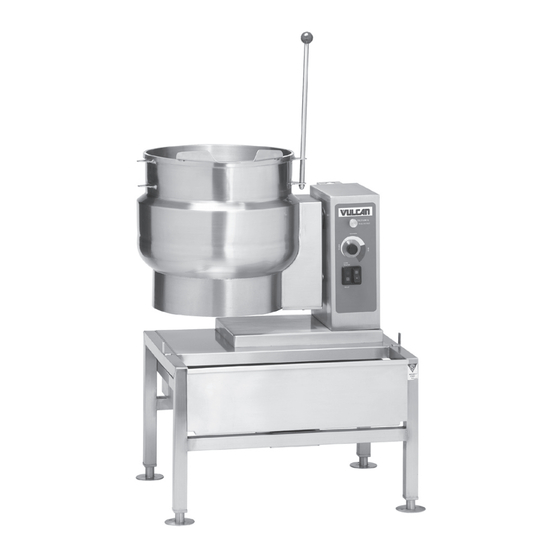

ELECTRIC COUNTER TILTING KETTLE
K6ETT
6 gallons/24 quarts/23 liters capacity
■
K12ETT 12 gallons/48 quarts/46 liters capacity
■
STANDARD FEATURES
/ jacketed self-contained electric counter tilting steam
2
■
3
kettle.
■ Ellipsoidal bottom kettle liner formed and fully welded
type 316 and type 304 exterior stainless steel. Designed to
operate at a maximum 50 PSI (3.4 kg/cm
■ Jacket contains water, rust inhibitor and antifreeze mixed to
protect to 30° below zero.
■ Removable electric elements are field serviceable.
■ Stainless steel tilt handle can be mounted on either the right
or left. Two position tilt lock, upright, 100° for emptying and
cleaning.
■ Stainless steel water tight control housing located on the right.
Controls include a power switch, indicator light, solid state
temperature control, vacuum/pressure gauge, pressure relief
valve, low water light and low water shut-off.
■ Faucet bracket.
■ Mounting base includes lugs for bolting to counter top or floor
stand.
■ Shipped for 208/60-50/3 electrical service. Can be field con-
verted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
■ One year limited parts and labor warranty.
OpTIONS
Correction facility package.
■
a. Security type tamper resistant fasteners with tack welds.
480 volt, 60 Hz, 3 phase power supply.
■
Second year extended limited parts and labor warranty.
■
ACCESSORIES
One piece lift-off stainless steel cover.
■
Tilting kettle strainer.
■
Kettle tables (see spec F-31898).
■
Kettle stand (see spec F-32474 or F-32603).
■
Single perforated stainless steel basket assembly.
■
(12") (18" double jointed) single pantry faucet.
■
(12") (18" double jointed) double pantry faucet.
■
Double pantry washdown hose with 16" add-on faucet with
■
backflow preventer.
Double pantry washdown hose with backflow preventer.
■
Double pantry pot filler and backflow preventer.
■
C.S.I. Section 11420
).
