Panel and Interface LED
Ethernet cable
2-port 10/100 FIC
Table 1
Attribute
Connector
Connector number
Cable
Operating mode
Supported frame format

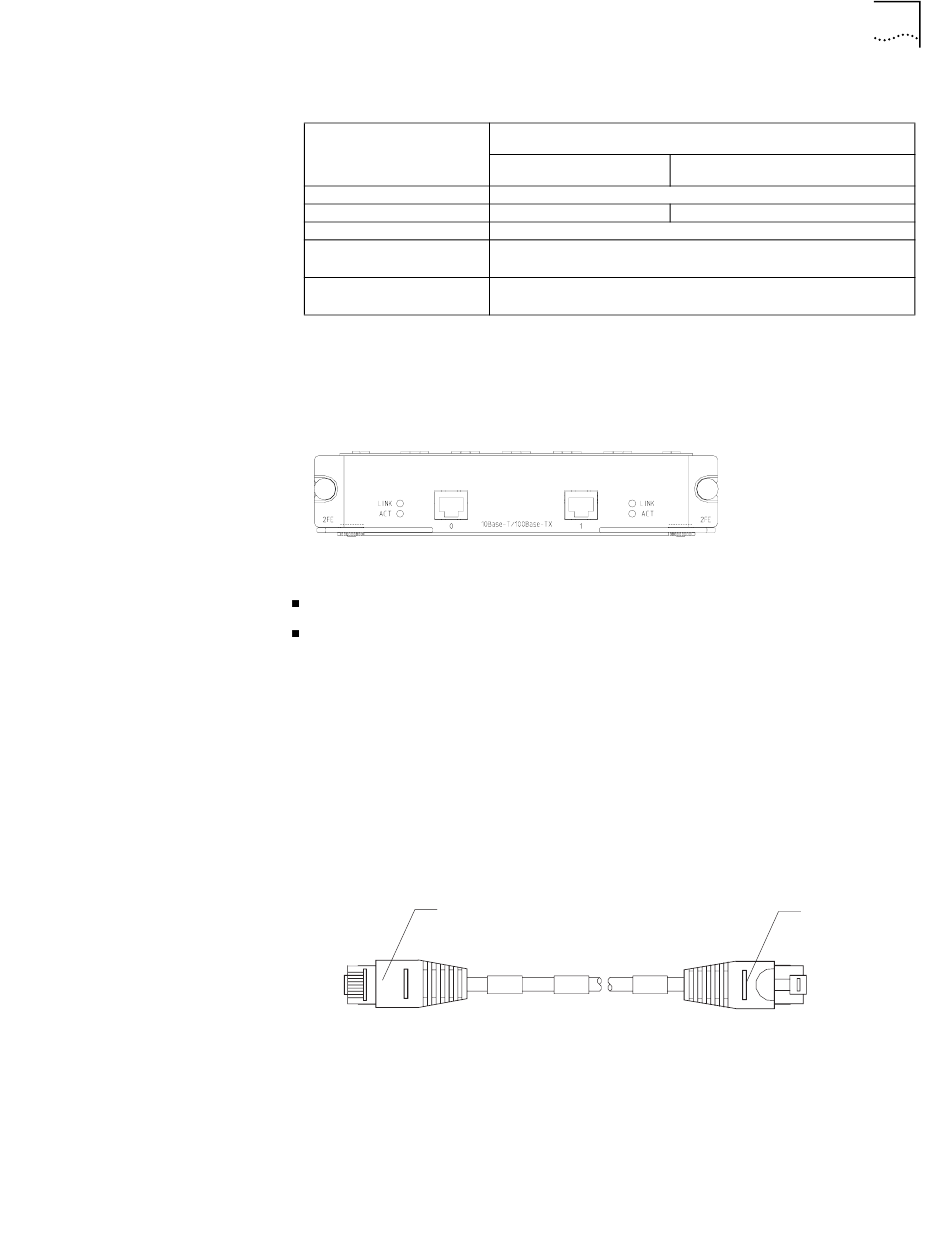

The following figure illustrates an 2-port 10/100 FIC panel.
Figure 1 2-port 10/100BASE-T FIC Panel
LINK-OFF means the link is not connected and ON means the link is connected
ACTIVE-OFF means no data is being transceived on the interface and blinking
means data is being transceived.
As shown in the following figure, Ethernet cable of 2-port 10/100 FIC cards is a
category-5 twisted pair with RJ45 connectors. Pins 1 and 2 of the interface are at
the transmitting terminal, and Pins 3 and 6 are at the receiving terminal.
Figure 2 Ethernet Cable
RJ45
8
1
Make Ethernet cable
Ethernet cable uses the category-5 twisted pair composed of eight cores that are
identified and grouped by their insulation layer colors. Usually a unicolor wire and
the white/unicolor wire for it are in pairs. But sometimes, color dots are used to
indicate which wires belong in pairs.
interface attributes
Description
2-port 10/100 FIC
RJ45
2
Standard Ethernet cable
Full duplex/Half-duplex
10M/100Mbps auto-sensing
Ethernet_II
Ethernet_SNAP
2-port 10/100 FIC (3C13861)
RJ45
8
1
