3Com 6000 Series Installation Manual page 28

28 C 3: I
HAPTER NSTALLING
Connecting the AUX
cable
Verify Installation
T R
HE OUTER

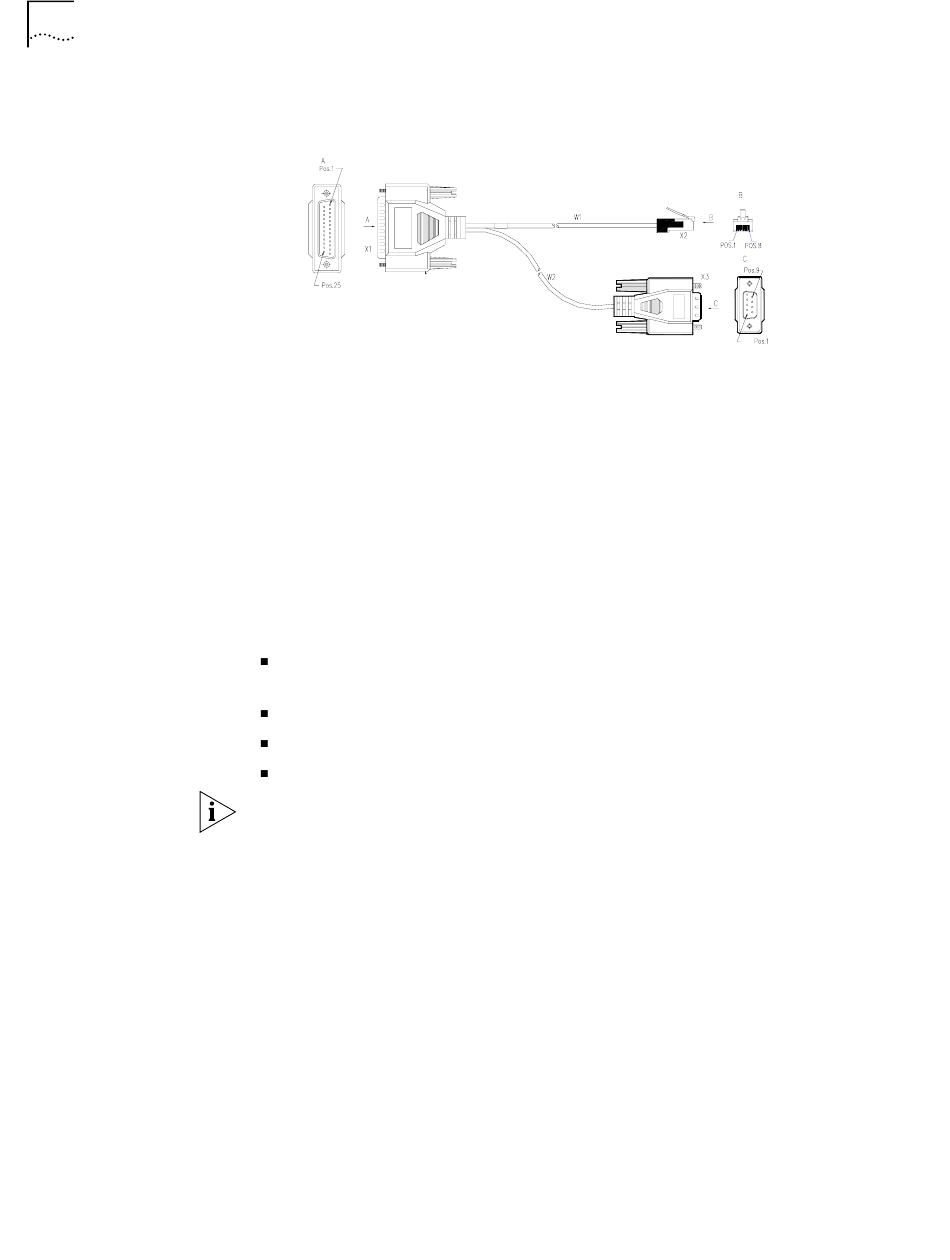

Figure 7 AUX Cable
Follow these steps to connect the AUX cable.
1 Insert the RJ45 connector of the cable into the AUX port on the RPU.
2 Insert the DB25 or DB9 connector into the serial port of the analog modem. AUX
port is usually used for remote configuration or dial-up backup. Therefore, you
need to connect the local modem to the remote modem via PSTN and then to the
remote equipment.
During router installation, you must verify the installation each time you power
on the Router, making sure that:
Enough clearance has reserved around the Router for adequate dissipation and
the cabinet is stable enough.
The correct power supply is used.
The connection of the PGND wire of the Router is correct and secure.
The connections with other devices, such as the console terminal, are correct.
It is very important for you to check the router installation, as the secure
connection, well grounding, and use of the correct power supply are essential to
the normal operation of the Router.
