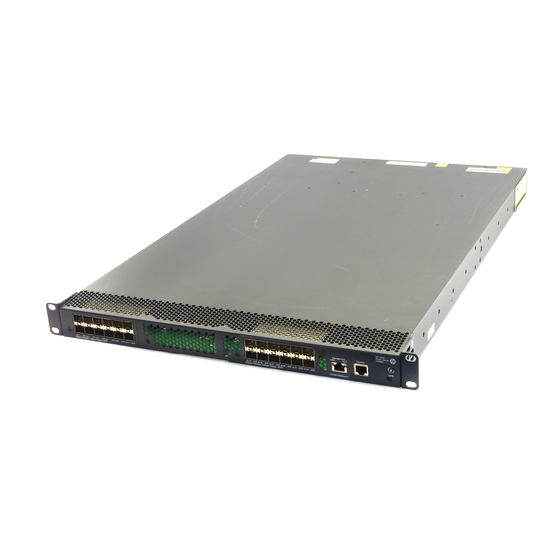

HP 5920 Series Installation Manual

Hide thumbs Also See for 5920 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
HP 5920 & 5900 Switch Series
Installation Guide
Part number: 5998-2852
Document version: AW100-20111117

Advertisement

Table of Contents
loading

Related Manuals for HP 5920 Series

Summary of Contents for HP 5920 Series

  • Page 1 HP 5920 & 5900 Switch Series Installation Guide Part number: 5998-2852 Document version: AW100-20111117...
  • Page 2 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3: Table Of Contents

    Contents Product overview ·························································································································································· 1   HP 5920AF-24XG panel views ······································································································································· 1   HP 5900AF-48XG-4QSFP+ panel views ························································································································ 2   Preparing for installation ············································································································································· 4   Safety recommendations ·················································································································································· 4   Examining the installation site ········································································································································· 4   Temperature/humidity ············································································································································· 4  ...
  • Page 4 SFP+ port LED ························································································································································ 49   QSFP+ port LED ····················································································································································· 49   Management Ethernet port LEDs ·························································································································· 50   Appendix D Cooling system ······································································································································ 51   HP 5920AF-24XG cooling system ······························································································································· 51   HP 5900AF-48XG-4QSFP+ cooling system ················································································································ 52   Index ··········································································································································································· 54  ...

  • Page 5: Product Overview

    650W DC power supply IMPORTANT: • For regulatory identification purposes, the HP 5920AF-24XG switch is assigned a regulatory model number (RMN) BJNGA-AC0007. This regulatory number should not be confused with the marketing name HP 5920AF, or product code JG296A. For regulatory identification purposes, the HP 5900AF-48XG-4QSFP+ switch is assigned a regulatory •...

  • Page 6: Hp 5900Af-48Xg-4Qsfp+ Panel Views

    You can install one or two power supplies for the switch as needed. In this figure, two 650W AC power supplies are installed. The HP 5920AF-24XG switch also comes with the fan tray slots empty. You must install two fan trays for •...
  • Page 7 650W AC power supplies are installed. • The HP 5900AF-48XG-4QSFP+ switch also comes with the fan tray slots empty. You must install two fan trays for the 5900AF-48XG-4QSFP+ for adequate heat dissipation, and their models must be the same.

  • Page 8: Preparing For Installation

    • to avoid damaging the units. Examining the installation site The HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches must be used indoors. Mount your switch in a rack and make sure: • Adequate clearance is reserved at the air inlet and exhaust vents for ventilation.

  • Page 9: Cleanness

    Lasting high relative humidity can cause poor insulation, electricity creepage, mechanical property • change of materials, and metal corrosion. Lasting low relative humidity can cause washer contraction and ESD and bring problems including • loose captive screws and circuit failure. High temperature can accelerate the aging of insulation materials and significantly lower the •...

  • Page 10: Laser Safety

    Laser safety The HP 5920 and 5900 series switches are Class 1 laser devices. WARNING! Do not stare into any fiber port when the switch has power. The laser light emitted from the optical fiber may hurt your eyes. Installation tools •...

  • Page 11: Installing The Switch

    Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact HP for permission. Otherwise, HP shall not be liable for any consequence caused thereby. Figure 7 Hardware installation flow...

  • Page 12: Mounting Bracket And Rack Mounting Rail Kits

    Mounting bracket and rack mounting rail kits The HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches come with a pair of mounting brackets (see Figure 8) and a pair of chassis rails and a pair of slide rails (see Figure 9). Figure 8 1U mounting bracket kit...

  • Page 13: Attaching The Mounting Brackets, Chassis Rails, And Grounding Cable To The Chassis

    (near the power supplies). The HP 5920AF-24XG has one primary grounding point (with a grounding sign) and one auxiliary grounding point, and the HP 5900AF-48XG-4QSFP+ switch has one primary grounding point (with a grounding sign) and two auxiliary grounding points.
  • Page 14 NOTE: HP recommends that you use the primary grounding point or auxiliary grounding point 1 because the • grounding cable and grounding screw that come with the switch are suitable only for these two grounding points.

  • Page 15: Attaching The Slide Rails To The Rack

    Figure 13 Attaching the rear mounting brackets/chassis rails/grounding cable to the chassis Figure 14 Attaching the front mounting brackets/chassis rails to the chassis Attaching the slide rails to the rack To attach the slide rails to the rack: Identify the rack attachment position for the slide rails. Install cage nuts (user-supplied) in the mounting holes in the rack posts.

  • Page 16: Mounting The Switch In The Rack

    Figure 15 Installing the slide rails Mounting the switch in the rack This task requires two people. To mount the switch in the rack: Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.

  • Page 17: Grounding The Switch

    Figure 16 Mounting the switch in the rack (I) Figure 17 Mounting the switch in the rack (II) Grounding the switch WARNING! Correctly connecting the switch grounding cable is crucial to lightning protection and EMI protection.

  • Page 18: Grounding The Switch With A Grounding Strip

    The power input end of the switch has a noise filter, whose central ground is directly connected to the chassis to form the chassis ground (commonly known as PGND). You must securely connect this chassis ground to the earth so the faradism and leakage electricity can be safely released to the earth to minimize EMI susceptibility of the switch.

  • Page 19: Grounding The Switch By Using The Ac Power Cord

    NOTE: HP recommends that you use the primary grounding point or auxiliary grounding point 1, because the • grounding cable and grounding screw provided with the switch are applicable only to these two grounding points. To use auxiliary grounding point 2 on the HP 5900AF-48XG-4QSFP+ switch, you must prepare a •...

  • Page 20: Installing/Removing A Fan Tray

    Installing/removing a fan tray CAUTION: The HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches require two same direction air flow fan trays to function properly. Do not operate the system with only one fan tray for more than 24 hours. • Do not operate the system without any fan tray for more than 2 minutes.

  • Page 21: Removing A Fan Tray

    The switches do not support intermixing of AC and DC power supplies. The HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches come with both power supply slots empty and the power filler modules as accessories. You can install one or two power supplies for these switches as needed. For more information about the power supplies available for the switches, see “Hot swappable power...

  • Page 22: Installing A Power Supply

    Figure 23 Removal procedure NOTE: The HP A58x0AF 650W AC power supply and the HP A58x0AF 650W DC power supply are referred to as the 650W AC power supply and the 650W DC power supply throughout this installation guide. Installing a power supply...

  • Page 23: Removing A Power Supply

    Figure 24 Installing a power supply Figure 25 Installing a power filler module Removing a power supply CAUTION: If the switch has two power supplies, removing one power supply does not affect the operation of the switch. If the switch has only one power supply, removing the power supply powers off the switch. To remove a 650W AC or DC power supply from the switch: Wear an ESD-preventive wrist strap and make sure it makes good skin contact and is well grounded.

  • Page 24: Connecting The Power Cord

    Figure 26 Removing the DC power cord (1) Press the tabs on the power cord connector with (2) Pull the power cord connector out your thumb and forefinger Figure 27 Remove the power supply (1) Pivot the latch to the right with your thumb (2) Pull the power supply out Connecting the power cord Connecting the 650W AC power supply...

  • Page 25: Connecting The 650W Dc Power Supply

    Insert the female connector of the AC power cord supplied with the power supply into the power receptacle on the power supply. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure Connect the other end of the power cord to an AC power outlet.
  • Page 26 There is enough space for heat dissipation around the switch, and the rack is stable. • • The grounding cable is securely connected. The correct power source is used. • The power cords are properly connected. • • All the interface cables are cabled indoors. If any cable is routed outdoors, verify that the socket strip with lightning protection and lightning arresters for network ports have been properly connected.

  • Page 27: Accessing The Switch For The First Time

    Accessing the switch for the first time Setting up the configuration environment The first time you access the switch you must use a console cable to connect a console terminal, for example, a PC, to the console port on the switch. Figure 30 Connecting the console port to a terminal Connecting the console cable Console cable...

  • Page 28: Setting Terminal Parameters

    Connect the RJ-45 connector to the console port of the switch. NOTE: Identify the mark on the console port and make sure that you are connecting to the correct port. • The serial ports on PCs do not support hot swapping. If the switch has been powered on, connect the •...
  • Page 29 Figure 33 Setting the serial port used by the HyperTerminal connection Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None, and click OK. Figure 34 Setting the serial port parameters Select File >...
  • Page 30 Figure 35 HyperTerminal window On the Settings tab, set the emulation to VT100 and click OK. Figure 36 Setting terminal emulation in Switch Properties dialog box...

  • Page 31: Powering On The Switch

    The console cable is properly connected, the terminal or PC used for configuration has started, and • the configuration parameters have been set. Powering on the switch Power on the switch (for example, an HP 5900AF-48XG-4QSFP+ switch), and you can see the following information: Starting..********************************************************************************...
  • Page 32 Boot ROM recovery is enabled. You can disable this function to protect system security. CAUTION: If Boot ROM recovery is enabled, you can contact the HP support to get 8. Set BootRom password recovery a super Boot ROM password to access the Boot menu after your Boot ROM password is lost.

  • Page 33: Changing The Startup Mode

    User interface aux0 is available. Press ENTER to get started. Press Enter at the prompt, and you can configure the switch when the prompt <HP> appears. Changing the startup mode The system by default starts up in fast mode. To change the startup mode to full, press Ctrl + B within one...
  • Page 34 Enter your choice(0-9): Enter 0 at the prompt. The system reboots in full startup mode and displays the following information: Starting..******************************************************************************** HP 5900AF-48XG-4QSFP+ Switch BOOTROM, Version 112 ******************************************************************************** Copyright (c) 2010-2011 Hewlett-Packard Development Company, L.P. Creation Date : Nov 14 2011,16:32:02...
  • Page 35 Please check leds....FINISHED! User interface aux0 is available. Press ENTER to get started. Press Enter at the prompt, and you can configure the switch when the prompt <HP> appears. NOTE: HP 5920 & 5900 Switch Series For more information about the configuration commands and CLI, see Configuration Guides HP 5920 &...

  • Page 36: Setting Up An Irf Fabric

    Setting up an IRF fabric You can use HP IRF technology to connect and virtualize HP 5920 and 5900 switches into a large virtual switch called an “IRF fabric” for flattened network topology, and high availability, scalability, and manageability. To set up IRF links between HP 5920 and 5900 series switches, use SFP+ ports or QSFP+ ports.

  • Page 37: Planning Irf Fabric Setup

    Distribute the IRF member switches in different racks to implement the top-of-rack (ToR) access solution for a data center. NOTE: As your business grows, you can plug an HP 5920 or 5900 switch into an IRF fabric to increase the • switching capacity without any topology change or replacement.

  • Page 38: Planning Irf Topology And Connections

    QSFP+ ports, respectively. You can bind several SFP+ or QSFP+ ports to an IRF port for increased bandwidth and availability. The HP 5920AF-24XG switch can provide 10-GE IRF connections through SFP+ ports. You can bind several SFP+ ports to an IRF port for increased bandwidth and availability.

  • Page 39: Identifying Physical Irf Ports On The Member Switches

    Identify the SFP+ or QSFP+ ports to be used for IRF connections on the member switches according to your topology and connection scheme. The HP 5920 and 5900 series switches do not have any IRF port binding restriction. You can bind any SFP+ or QSFP+ port on the switch chassis to any IRF port.
  • Page 40 Figure 40 Connecting the switches in one rack Figure 41 IRF fabric topology Connecting the IRF member switches in a ToR solution You can install IRF member switches in different racks side by side to deploy a top of rack (ToR) solution. 错误！未找到引用源。...

  • Page 41: Configuring Basic Irf Settings

    Create a Layer 3 interface, assign it an IP address, and make sure that the IRF fabric and the remote network management station can reach each other. Use Telnet, web, or SNMP to access the IRF fabric from the network management station. (See HP 5920 & 5900 Switch Series Fundamentals Configuration Guide.) Check that you can manage all member switches as if they were one node.
  • Page 42 To avoid IP address collision and network problems, configure at least one multi-active detection (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. For more HP 5920 & 5900 Switch Series IRF Configuration Guide information about MAD detection, see...

  • Page 43: Maintenance And Troubleshooting

    Power supply failure You can use the LEDs on the power supply to identify a power supply failure. For more information about the LEDs on a power supply, see HP A58x0AF 650W AC (JC680A) & 650W DC (JC681A) Power Supplies User Guide.

  • Page 44: Fan Failure

    “Installing/removing a power supply.” Fan failure CAUTION: The HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches require two same direction air flow fan trays to function properly. Do not operate the system with only one fan tray for more than 24 hours. •...

  • Page 45: Appendix A Technical Specifications

    Appendix A Technical specifications Table 6 HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches technical specifications Item HP 5920AF-24XG HP 5900AF-48XG-4QSFP+ Dimensions (H × 43.6 × 440 × 700 mm (1.72 × 17.32 × 43.6 × 440 × 660 mm (1.72 × 17.32 ×...
  • Page 46 Item HP 5920AF-24XG HP 5900AF-48XG-4QSFP+ Operating 10% to 90%, noncondensing 10% to 90%, noncondensing humidity Fire resistance UL60950-1, EN60950-1, IEC60950-1, UL60950-1, EN60950-1, IEC60950-1, compliance GB4943 GB4943...

  • Page 47: Appendix B Frus And Compatibility Matrixes

    Appendix B FRUs and compatibility matrixes This appendix describes the field replaceable units (FRUs) available for the HP 5920 and 5900 Switch Series and their compatibility. All the FRUs in this appendix are hot swappable. Hot swappable power supplies Table 7 lists the power supplies available for the HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches.
  • Page 48 Item Specifications LSVM224SFAN ( for the HP 5920AF-24XG switch) Fans Three 40 × 40 × 28 mm (1.57 × 1.57 × 1.1 in) fans Fan speed 18500 R.P.M Max airflow 57 CFM Airflow direction Front to back (fans draw air from the network side to the power supply side.)

  • Page 49: Appendix C Ports And Leds

    Provides connection to the serial port of a local or remote (through a pair of modems) PC running terminal emulation program. Management Ethernet port Every HP 5920AF-24XG or 5900AF-48XG-4QSFP+ switch has one management Ethernet port. You can connect this port to a PC or management station for loading and debugging software or remote management.

  • Page 50: Sfp+ Port

    SFP+ port HP 5920AF-24XG and 5900AF-48XG-4QSFP+ switches have fixed SFP+ ports. You can plug the SFP transceiver modules in Table 1 1, the SFP+ transceiver modules in Table 12, and the SFP+ cables in Table into the SFP+ ports as needed. You can use the SFP+ ports as IRF physical ports to connect the switches in an IRF deployment.

  • Page 51: Qsfp+ Port

    HP A-Series Switches Transceiver Modules User For the SFP transceiver module specifications, see • Guide The SFP+ cables available for the HP 5920 and 5900 Switch Series are 10 Gbps SFP+ Cu cables, as shown in Figure Figure 43 SFP+ cable...
  • Page 52 Table 15 40G QSFP+ cables available for the HP 5900AF-48XG-4QSFP+ switch Product code Cable description Cable length HP X240 40G QSFP+ QSFP+ 1m Direct Attach Copper JG326A 1 m (3.28 ft) Cable HP X240 40G QSFP+ QSFP+ 3m Direct Attach Copper JG327A 3 m (9.84 ft)

  • Page 53: Leds

    NOTE: To guarantee the functionality of the QSFP+ ports, use only HP QSFP+ transceiver modules and cables. • The QSFP+ transceiver modules and cables available for this switch series are subject to change over • time. For the most up-to-date list of SFP transceiver modules, consult your HP sales representative or technical support engineer.

  • Page 54: Management Ethernet Port Leds

    Table 18 QSFP+ port LED description LED status Description A transceiver module or cable has been correctly installed. The port has a link and Steady green is operating at 40 Gbps. Flashing green The port is sending or receiving data at 40 Gbps. A transceiver module or cable has been correctly installed.

  • Page 55: Appendix D Cooling System

    HP 5920AF-24XG cooling system The fan trays in the HP 5920AF-24XG switch must be the same type: LSVM124SFAN or LSVM224SFAN. When LSVM124SFAN fan trays are used, cool air flows in through the air vents in the fan tray panel •...

  • Page 56: Hp 5900Af-48Xg-4Qsfp+ Cooling System

    IMPORTANT: The chassis and the power supplies use separate air aisles. Make sure that both aisles are not blocked. HP 5900AF-48XG-4QSFP+ cooling system The fan trays in the HP 5900AF-48XG-4QSFP+ switch must be the same type: LSWM1FANSC or LSWM1FANSCB. •...
  • Page 57 (3) Network port-side air vents Figure 49 Airflow through the chassis (with LSWM1FANSCB fan trays) (1) Power supply air vents (2) Fan tray air vents (3) Network port-side air vents IMPORTANT: The chassis and the power supplies use separate air aisles. Make sure that both aisles are not blocked.

  • Page 58: Index

    Grounding the switch,13 Safety recommendations,4 Setting terminal parameters,24 Hot swappable fan trays,43 Setting up the configuration environment,23 Hot swappable power supplies,43 HP 5900AF-48XG-4QSFP+ cooling system,52 HP 5900AF-48XG-4QSFP+ panel views,2 Verifying the installation,21 HP 5920AF-24XG cooling system,51 HP 5920AF-24XG panel views,1...
