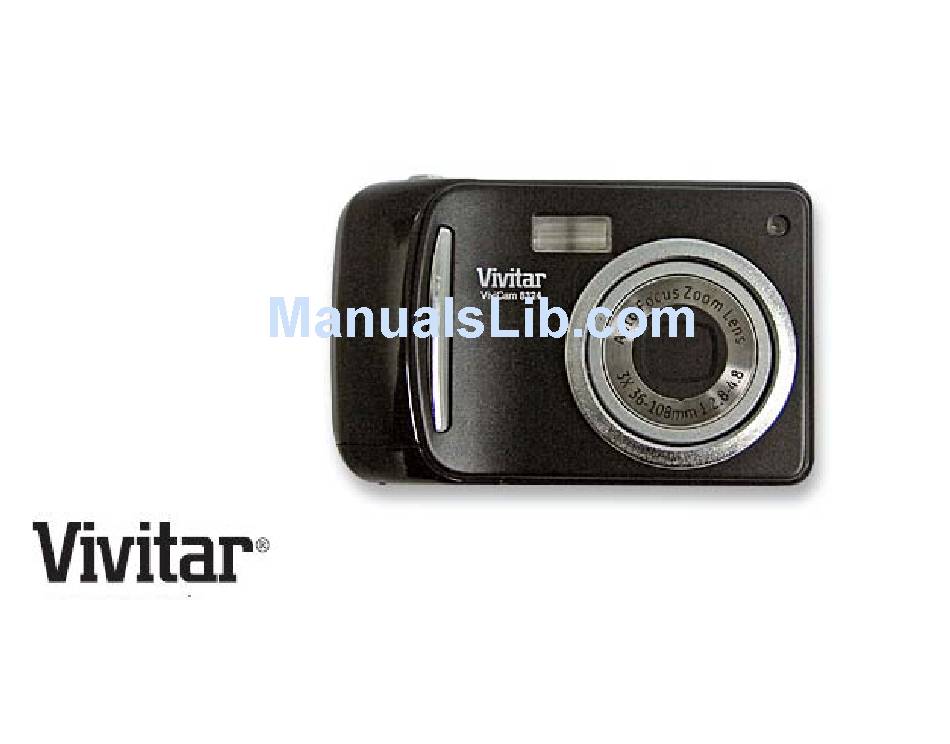

ViviCam 8324 Digital Camera
Owner`s Manual
© 2009 Sakar International, Inc. All rights reserved.
Windows and the Windows logo are registered trademarks of Microsoft Corporation.
All other trademarks are the property of their respective companies.

Advertisement

Table of Contents
loading

Summary of Contents for Vivitar ViviCam 8324

  • Page 1 ViviCam 8324 Digital Camera Owner`s Manual © 2009 Sakar International, Inc. All rights reserved. Windows and the Windows logo are registered trademarks of Microsoft Corporation. All other trademarks are the property of their respective companies.
  • Page 2: Table Of Contents

    Table of Contents Introduction ...2 Key Features ...2 What your camera package includes ...3 Computer System Requirements for Windows XP ...3 Computer System Requirements for Windows Vista ...4 Computer System Requirements for Macintosh ...4 A Quick Look at Your Camera...5 Preparing Your Camera for Use ...6 Installing SD Memory Card ...7 How to hold your camera correctly when capturing images ...9...
  • Page 3: Introduction

    Introduction Thank you for purchasing the ViviCam 8324 8.1 Mega-Pixel Digital Camera with Auto-Focus zoom lens. Everything you need to take quality digital photos and videos is included with your camera. Your digital camera can also be used as a removable disk when an SD card of up to 8GB is inserted into the camera.
  • Page 4: What Your Camera Package Includes

    What your camera package includes  Digital Camera  PhoTags Express software Installation CD  USB cable  Quick Start Guide  Strap Computer System Requirements for Windows XP To be able to download photos to your PC, you will need the following minimum configuration: ...
  • Page 5: Computer System Requirements For Windows Vista

    Computer System Requirements for Windows Vista To be able to download photos to your PC your will need the following minimum configuration:  Windows Vista  800MHz processor and 512 MB of system memory  20GB hard driver with at least 15GB of available space ...
  • Page 6: A Quick Look At Your Camera

    A Quick Look at Your Camera...
  • Page 7: Preparing Your Camera For Use

    Preparing Your Camera for Use Your digital camera needs 3 AAA batteries in order to operate. Alkaline batteries are recommended. Slide and open the battery door on the bottom of the camera. Insert the batteries correctly with the correct polarity facing up. Close the battery door.
  • Page 8: Installing Sd Memory Card

    Installing SD Memory Card Your camera has very limited internal memory enough to take one test photo. An external memory card is required for normal use. Your camera supports any compatible SD memory card (up to 8GB). Adding a memory card will allow you to increase the capacity of your camera before transferring the photos and videos to your PC.
  • Page 9 Note: Limited internal memory is provided for test images. The images will be deleted when the camera`s power is turned off or if the batteries are removed. Please download the images before powering off. Formatting will delete all data on the SD memory card including protected data. Don’t remove the SD card during formatting as this may damage the card and render it unusable.
  • Page 10: How To Hold Your Camera Correctly When Capturing Images

    How to hold your camera correctly when capturing images Turn on the Power button to activate the Auto- Focus zoom lens to open out like a periscope. Hold the camera steady and correctly as shown is the diagram below. Note: Do not touch or move the lens once it opens and is in use. This will cause damage to the camera.
  • Page 11: Starting Your Digital Camera

    Starting Your Digital Camera Power on Press the Power button on the top of the camera to turn on your camera. The LCD will light up and the Auto-Focus zoom lens will extend out indicating that your camera is on and ready for use. Power off Press the Power button to turn off your camera.
  • Page 12: Camera Mode

    The Camera mode will have a have a icon and the Playback mode a Camera Mode This is the default mode when turning on your camera. Taking Photos Compose your shot using the LCD screen. Hold the camera steady and press the Shutter button to take the photo. Keep your finger on the Shutter button and wait for the camera to focus in on the object.
  • Page 13 below in the section “Download photos and videos to your PC” and thereafter delete them from your SD card or insert another SD card to continue taking more photos. Note: This camera needs a SD memory card to operate normally. The limited internal memory allows you to take one test photo that will be erased when the camera powers off.
  • Page 14 Flash In low light conditions it is best to use the built-in flash. You can also use the flash to compensate for backlight conditions. Force Flash, To set the flash: Note: Please move the Macro/Far setting to Far mode. The flash can only be use when the camera is in Far mode.
  • Page 15 Press the Flash button until the the default flash setting. Short cut buttons on the MENU dial The camera has 3 short cut buttons on the MENU dial to make for quick access to the following settings: Scene (Left button), Self-timer (Down button) and Delete (Right button) Pressing the relevant button will activate the setting options.
  • Page 16 Scene Your camera comes supplied with many scenes for you to take photos in accordance with the light and environmental conditions prevailing at the time of taken the photo. Scene included with your camera are - Auto, Night Portrait, Night Scenery, Portrait, Scenery, Sport, Party, Beach or High Sensitivity. Press the MENU button.
  • Page 17 of memory required for each photo. The higher the photo quality the more memory it will take. The image size and quality will also affect the maximum size you can effectively print your photo. To set the Image size: Press the MENU button. Press the Right/Left button to select the The Image Size menu appears in the center of the LCD.
  • Page 18 Press the MENU button. Press the Right/Left button to select the The Anti-Shake menu appears in the center of the LCD. Press the Up/Down button to select Anti-Shake On or Off. Press the MENU button to confirm, save and exit to the camera standby mode. The Anti-shake option Macro/Far shooting The camera has the function that allows you to capture objects with the Hyperfocal distance setting of either...
  • Page 19 Press the Right/Left button to select the The Macro menu appears in the center of the LCD. Press the Up/Down button to select Macro On or Off. : Macro shooting - On : Far shooting - Off Press the MENU button to confirm, save your choice and exit to the camera standby mode. The selected icon appears on the top of the LCD screen.
  • Page 20 Press the MENU button to confirm, save your choice and exit to the camera standby mode. The Face Detect On or Off icon selected will appear on the bottom of the LCD screen. Self-Timer You can include yourself in a photo by using this feature to delay the time between you pressing the Shutter button and when the photo is actually taken.
  • Page 21 Press the MENU button to confirm, save your choice and exit to the camera standby mode. The Self-Timer icon selected will appear on the top of the LCD screen. Press the Shutter button until you see the self-timer count-down begin in the center of the green frame that appears on the LCD.
  • Page 22 Press the Right/Left button to select the The Setup menu appears in the center of the LCD. Press the Up/Down button to select one of the setup submenu options: Exposure This setting allows you to control the brightness of your images. 1.
  • Page 23 3. Press the MENU button to confirm, save and exit to the camera standby mode. 4. The Exposure icon for the option you selected appears on the bottom of the LCD. This is a special function that allows you to compensate the light conditions when the light source is not good and you also specifically do not wish to use a flash or tripod.
  • Page 24: White Balance

    4. Press the MENU button to confirm, save and exit to the camera standby mode. 5. The ISO icon for the option you selected appears on the bottom of the LCD. White Balance This setting allows the camera to adjust the color of your photos according to the color of your light source.
  • Page 25 Press the MENU button to confirm, save and exit to the camera standby mode. The LCD screen will be adjusted as per the White Balance option you selected. Sharpness This setting allows you to adjust the sharpness of your images, making edges more or less distinct.
  • Page 26 Press the MENU button to confirm, save and exit to the camera standby mode. The LCD screen will be adjusted as per the Sharpness option you selected. Quality The quality of your photos also affects the number of shots you can take. A HIGH setting means you can take fewer photos, but they will be of better quality.
  • Page 27: Digital Zoom

    Super fine Press the MENU button to confirm, save and exit to the camera standby mode. The Quality icon for the option you selected appears on the bottom left corner of the LCD. Super quality Digital Zoom You can set the digital zoom function On or Off. Press the Up/Down button to select the Digital Zoom option in the Setup menu.
  • Page 28 Date This allows you to set the system time which will be displayed on the photos. Press the Up/Down buttons to select the Date option in the Setup menu. Press the MENU button. Press the Up/Down buttons to select a Date option from the Menu that appears: On selecting “On”...
  • Page 29 3. Press the Right/Left button to select and highlight the Year, Month, Day, Hour, Minute, Second and Date Format type. 4. Press the Up/Down button to set the Date and Time digits. 5. Select the first option of the Date format and press the Up/Down button to set the date format that appears on the top line: YY MM DD;...
  • Page 30 Press the Up/Down button to select a time that the camera will automatically power off if inactive. Note: If you select None, the camera will not be powered off until the battery power is depleted or the camera is turned off manually. Press the MENU button to confirm, save and exit to the camera standby mode.
  • Page 31 Format This function will format the memory card and will erase all files in memory including files that have been protected. Important: Please use this function with caution. Once formatted all the images stored in the memory will be erase. This process is irreversible. Please download all images to the PC before formatting the card.
  • Page 32: Default Setting

    4. Press the MENU button to confirm. 5. If you selected OK, a Format confirmation message appears. 6. Press the Right/Left button to select “Yes” to format, “No” to exit. 7. Press the MENU button to confirm and begin the format. 8.
  • Page 33 Press the Up/Down button to select OK to set to default setting or Cancel to exit. Press the MENU button to confirm. If you selected OK, a Default Setting confirmation message will appear: Press the Right/Left button to select “Yes” to reset to the default setting or “No” to exit the menu.
  • Page 34: Video Mode

    Video Mode Press the MODE button to select the Video mode. Note: The camera has limited internal memory and does not allow recording videos without an SD card inserted. An SD card (up to 8GB) needs to be inserted in order to use the video mode normally. When the icon appears on the top left corner of the LCD screen this indicates that you are in Video mode.
  • Page 35 Download the test file from the internal memory to the PC or delete them to shoot more videos. Alternatively, you can insert a SD memory card to expand the memory to record longer videos. In Video mode there are 3 setup options - White Balance, Size and Macro White Balance You can select 5 different White Balance light conditions for shooting videos.
  • Page 36 Press the MENU button to confirm, save and exit to the video standby mode. The LCD screen will be adjusted as per the White Balance option you selected. Size Your camera supports 2 video resolutions- 640x480 (VGA) pixels, 320x240 (QVGA) pixels. Press the MENU button.
  • Page 37: Playback Mode

    Press the Right/Left button to select the Press the Up/Down buttons to select a Macro option from the Menu that appears : Macro shooting - On : Far shooting - Off Press the MENU button to confirm, save your choice and exit to the video standby mode. The selected Macro icon appears on the top of the LCD screen.
  • Page 38 Full screen to Thumbnail display When the camera is in the Playback Mode and an image appears on the LCD screen: Press the W button. This will open up the thumbnail display. Press the Up/Down/Left/Right buttons and select a thumbnail of a photo or video. Press the MENU button to display the photo or video in full screen.
  • Page 39 Select the photo you wish to rotate, protect, delete, crop or print. Rotate The rotate feature will only work for images on the SD card that is inserted. Press the MENU button. Press the Right/Left button to select the Press the Up/Down buttons to select the Rotate option from the Menu that appears. Press the MENU button to confirm how many degrees you want to rotate the photo A “Rotate &...
  • Page 40 Note: You cannot rotate a protected file. On attempting to rotate a protected file a “This File is Write-Protected” message will appear on the screen. “No card inserted” will appear on the screen if no SD card is insert. Please insert an SD memory card to use this function.
  • Page 41 If you select Lock, a lock icon Note: To “Unlock” the current file follow steps 1 through 4. Select “Unlock” and press the MENU button to unlock the current file. Delete Delete unwanted photos and videos at any time in order to free up memory. You can delete one image or video clip at a time or delete all except the protected photos and videos that are currently stored and saved on the memory card.
  • Page 42 Press the MENU button to confirm. A Delete confirmation message appears. Press the Right/Left button to select “Yes” or “No”. Press the MENU button to confirm and delete the image(s). Note: You cannot delete files that are locked. Caution: If you choice the All option, all the unprotected photo images on your SD card will be deleted. This process is irreversible and all your images will be lost forever unless you have saved them or downloaded them to your computer previous to the deletion.
  • Page 43 Press the MENU button. Press the Right/Left button to select the Press the Up/Down button to select Crop or Cancel. Press the MENU button. A blue crop rectangle appears on the photo in the LCD screen. Press the W or T buttons to determine the size of the area to crop. Press the Up/Down/Right/Left buttons to navigate the area of the photo you wish to crop.
  • Page 44 You can print the photos directly from the camera with a Pictbridge compatible printer. Select the photo you wish to print. Press the MENU button. Press the Right/Left button to select the Press the Up/Down button and select Pictbridge to print photos or press Cancel to exit the menu. Press the MENU button to enter the Pictbridge mode.
  • Page 45 Note: Videos have an Press the MENU button for the selected video to appear in full screen. Press the Shutter button to play the current AVI file. Press the Shutter button to pause and press it again to continue playing. Press the Up button to stop playing the AVI and revert back to the Playback mode.
  • Page 46 Press the MENU button. If you select Lock, a lock icon Note: To “Unlock” the current file follow steps 1 through 4. Select “Unlock” and press the MENU button to unlock the current file. Delete Delete unwanted videos at any time in order to free up memory. You can delete one image or video clip at a time or delete all except the protected videos that are currently stored and saved on the memory card.
  • Page 47 Press the MENU button to confirm. A Delete confirmation message appears. Press the Right/Left button to select “Yes” or “No”. Press the MENU button to confirm and delete the image(s). Note: You cannot delete files that are locked. Caution: If you choice the All option, all the unprotected video images on your SD card will be deleted. This process is irreversible and all your images will be lost forever unless you have saved them or downloaded them to your computer previous to the deletion.
  • Page 48: Installing Photags Express Software

    Installing PhoTags Express Software In order to install the Software to download the photos and videos captured using this camera to your computer, you need to install the Photags Express CD installation disk. Insert the installation CD into your CD-ROM drive. The installation screen should automatically open. Warning: DO NOT PLUG YOUR CAMERA INTO THE USB PORT UNTIL THE SOFTWARE INSTALLATION HAS BEEN COMPLETELY INSTALLED.
  • Page 49 On the “PhoTags Express" screen, click the “Next” button. Please review the license terms and click the “I Agree” button to continue.
  • Page 50 Let the “PhoTags Express” installer create the folder where the program will be installed to, and then click “Install”.
  • Page 51 Please wait while the application is being installed on your computer. Once the application has been installed on your computer, click the “Finish” button to let the “PhoTags Express” installer finish the installation program.
  • Page 52 If you selected the option for the application to start after pressing the Finish button, the application will automatically launch. If not, then in order to open the application you need to double click on the Photags Express icon on the desktop. The Welcome to Photags Express Product Registration screen will open.
  • Page 53: Everything You Need To Get The Most From Your Photos

    Everything you need to get the most from your photos The “PhoTags Express” software that is installed on your computer allows you to edit existing photos that you have on your computer as well as the photos that you have captured with your camera. Plug one end of the USB cable into the USB port of the camera.
  • Page 54 Manage your photos by creating countless unique photo collections without duplicating any photos. Burn CD’s of any folders for backup and storage. Enhance your photos; Auto Enhance, Crop, Correct Red Eye, Manually Adjust and add Special Effects. Add Active Captions- add Text Captions, Frames, Shapes, Keywords… and more that can be viewed or hidden any time.
  • Page 55: Download Photos And Videos To Your Pc

    Download photos and videos to your PC Transfer Photo and Video images from your camera to your PC using PhoTags Express. Select the “Get Photos” button from the top of the PhoTags Express Main Menu screen.
  • Page 56 The Get Photos Wizard opens. Select the device (removable disk) option in the Active Devices window on the left and then select either the “Custom” or “Express” copy radial button in the Copy methods box. Note: If you do not see your camera in the list press the Refresh button.
  • Page 57 CUSTOM COPY METHOD Select the “Custom” copy radial button. Click the “Next” button. Add Active Captions to your pictures. You can add a date, keywords, categories and more. Click “Next” to continue. Choose where to place your photos and videos. The default is to place all photos and videos into a folder under the C:\My Documents\ My Pictures folder with the date when the photos were taken as the folder name.
  • Page 58 Click the “Finish” button to start the download process. A photos download progress bar appears showing the number of media (videos included) downloading to your computer.
  • Page 59 All the media – Photos and Videos on your camera are now downloaded to your computer to the selected folder. Open the “Select Photos” mode of Photags Express to view the thumbnails for all the media. You may now use PhoTags Express to edit your photos, create collections and Burn CD`s.
  • Page 60: Viewing Videos

    To learn more of how to get the most out of your PhoTags application select the “Show Me How” or the “?” Help Guide button found on the top right of the screen. EXPRESS COPY METHOD Select the “Express” copy radial button if you want to have all the images transferred to the PC without the option to select which photos you want to transfer.
  • Page 61: Transferring Photos And Videos To Your Pc Manually

    Transferring photos and videos to your PC manually Turn on your camera, Change your camera mode to Playback and connect your camera to the computer correctly with USB cable, the screen will be shown a window (Removable Disk F:) as below: NOTE: Now you can download the photos and videos to your computer with two methods as below: 1.
  • Page 62: Transferring Photos And Videos To Your Mac Manually

    Click on the MY COMPUTER Icon on the desktop. 2. Your memory card will appear as a REMOVABLE STORAGE DEVICE. 3. Click on the REMOVABLE STORAGE DEVICE to view the images. The images are stored in the subfolder called DCM100. 4.
  • Page 63: Sakar Warranty Card

    Your return address and telephone number (Daytime) MAIL TO ADDRESS BELOW: Sakar International Attention: Service Department 195 Carter Drive Edison, NJ 08817 You may also visit www.vivitar.com free at (877) 397-8200. for further assistance if necessary or call our tech support department toll...
  • Page 64: Appendix A: Technical Specifications

    Appendix A: Technical Specifications Image Sensor Image Resolution Video Resolution File Format External Memory LCD Display Lens Zoom Exposure White Balance Scene Flash Self-timer Anti-Shake PictBridge Face Detect Interface System Requirements Window XP/ Vista/ Mac OS X (10.2.6 or higher) Battery Working Temperature CMOS Sensor...
  • Page 65: Appendix B: Troubleshooting

    Appendix B: Troubleshooting Q: I have taken photos but my computer says, “No photos in camera.” What do I do? A: First ensure that you have in fact taken photos. Press the Shutter button a few times to take some sample photos and then try downloading them again.
