5 - 2. Attaching Media Center Unit

Check all accesories before attaching
HINT!
Make sure the following items are supplied with your Disklavier:
. Media Center (1)
. Installation kit for the Media Center (1 set)
. Monitor speaker (2)*
. Installation kit for the monitor speaker (1 set)*
. Speaker cord (2)*
. Pocket Controller PRC-100 (1)
. CF wireless LAN card (2)**
. Rechargeable battery EA-BL08 (1)

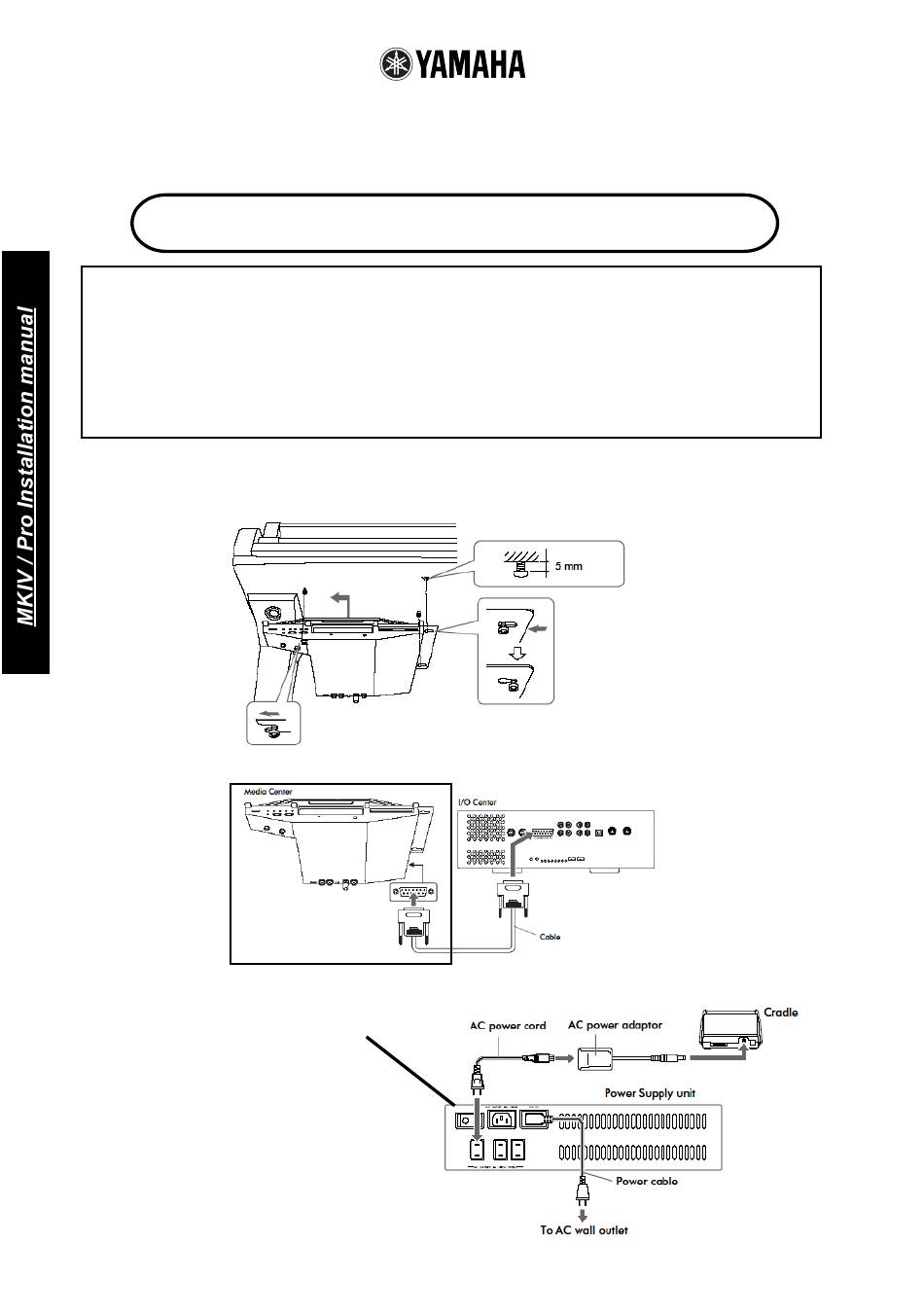

Installing the Media Center
1) Screw the supplied screws into the nuts. Hang the Media Center.
2) Tighten the screws to secure the Media Center.
3) Prepare PRC100 cradle
Turn on the power switch to activate
the cradle.
Insert nut 5 x 13mm x 3
MHB23 MKIV/PRO DIOV1.05, SCV.1.01 PAGE.06
. Cradle (1)
. AC adaptor EA-70 (1)
. AC power cord (1)
. Advanced Operating manual (this book) (1)
. Quick Guide (1)
. Stereo headphones (1 set)
* Supplied only with the Mark IV Series.
**One of two cards is attached to the I/O Center at the factory.
5 x 12mm screw x 3
EX500996 6/pack
Leave 5 mm of
the shank.
