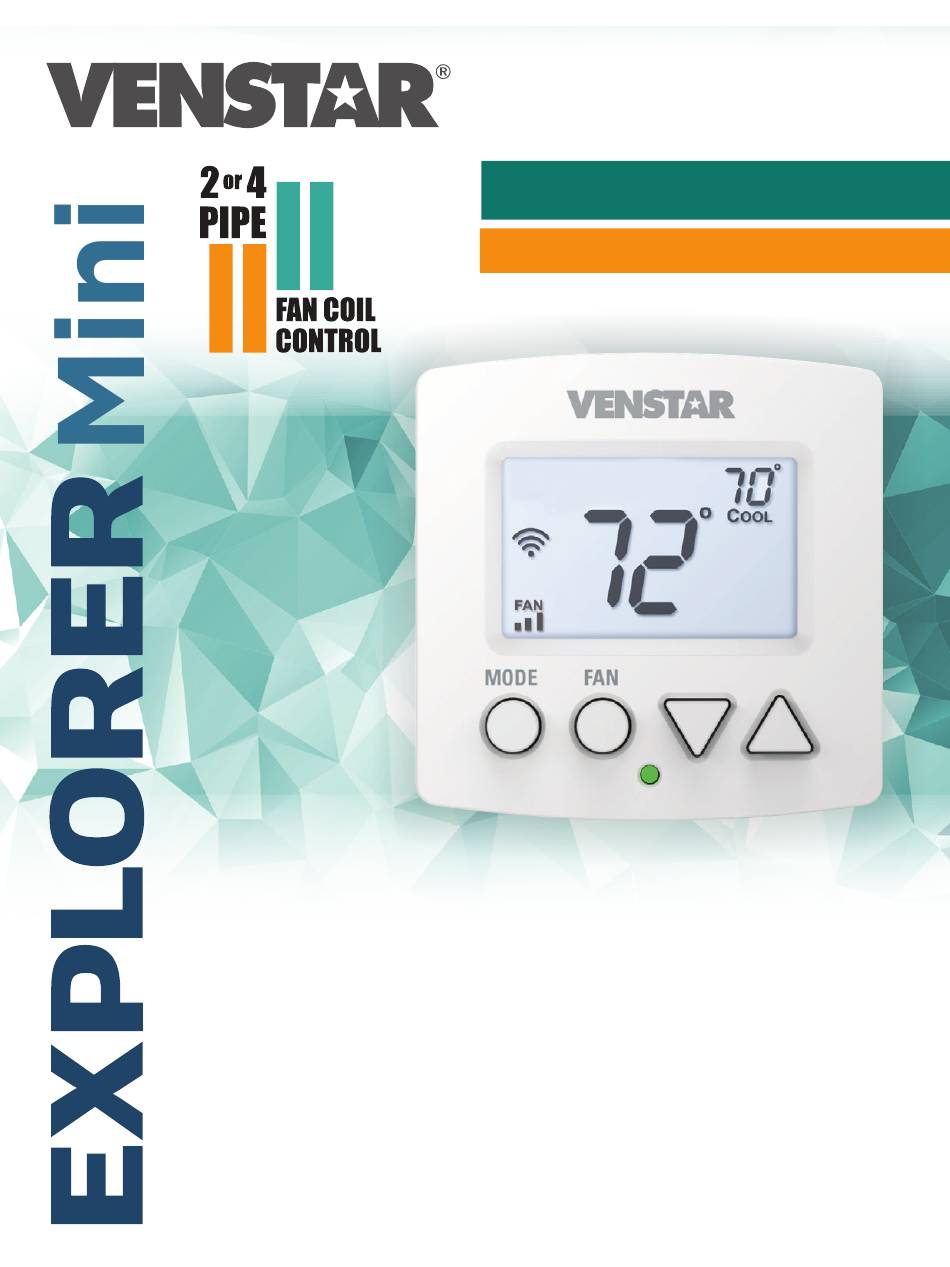

- Page 1 FAN COIL THERMOSTAT models T2100 / T2150 with Wi-Fi and local Quick start and setup guide...
- Page 2 Thank You Congratulations and thank you for purchasing your new Venstar Fan Coil thermostat. This guide is intended to help you install and setup the basic features of your thermostat. For a full owner’s manual and installation guide, visit Venstar.com.
-
Page 3: Necessary Tools
Compatibility Your Venstar EXPLORER Mini ® fan coil thermostat is designed to work with 24V fancoils, both 2 pipe or 4 pipe. For 2 pipe units with automatic changeover between heating and cooling based on water supply, you will need to obtain a H2O changeover switch, ACC-SENFC. - Page 4 Step 1 - Power Off Current System 1) All power must be disconnected before any installation or service is attempted. More than one power source may be supplied to a unit. Power to remote mounted control devices may not be supplied through the unit. 2) To confirm power is off, adjust the temperature on your current thermostat.
- Page 5 Step 3 - Label & Disconnect Wires 1) One by one, apply TIP: Before disconnecting a label designated any wires, take to each wire you a photo of your disconnect from current wire configuration your current with your thermostat. mobile device. Wire from the Install on the old thermostat...
- Page 6 Step 4 - Remove Current Backplate Unscrew the current backplate and TIP: If needed, wrap the wires remove it from the wall. Be careful around a pencil or pen to keep not to let the wires fall into the wall. them from falling inside the wall.
-
Page 7: Step 6 - Connect Wires
Step 6 - Connect Wires 1) Match your previous wire configuration to the new base. One by one, connect each wire by inserting the metal end into the corresponding slot and tightening the screw. TIP: Use pliers to straighten wire before inserting into new base. Be sure to cut any excess wire so that the insulation extends to the terminal block. -
Page 8: Step 9 - Set Up Wi-Fi Connection
Skyport account setup). 3. A 6-digit code obtained from the thermostat is successfully entered into a Skyport account. 4. Successfully download and install the Venstar Skyport app on your mobile device(s). Your thermostat operates on the 2.4 Ghz, Wi-Fi b/g/n band. - Page 9 Quick Start - Connect to Wi-Fi The Explorer thermostats are joined to a Wi-Fi network with the help of the Venstar Configurator App. This app may be downloaded from your mobile device’s app store. Once the thermostat is installed and powered, the Configurator App will facilitate connection to the access...
- Page 10 Quick Start - Connect to Wi-Fi (continued) Select the access Enter the network When completed, point of your password and select the full Wi-Fi building or home “Done”. Then press symbol will to join. “Continue” in the appear on the lower right corner to display.
- Page 11 If the thermostat is connected to the local Wi-Fi Access Point, but you do not have a Skyport account, you may create an account and join the thermostat to the account by doing the following: 1. Open your browser to: http://venstar.skyportcloud.com 2. Select “Create account now” Create Account Now 3.
- Page 12 Skyport website to enter a time period schedule. The complete manual is available at venstar.com. It is much easier to setup the time period program/schedule on the Skyport Web App. To make these adjustments and more to your thermostat from Skyport follow these steps: 1.
-
Page 13: Troubleshooting
Raise the heat setpoint, is set too low maximum setpoint limit or reduce deadband Two pipe auto changeover Water changeover switch Contact Venstar for proper fancoil shows heat not installed or changeover switch (closed with chilled water or incorrect type... - Page 14 Check firewall settings Factory default Can’t get a 6 digit Thermostat already thermostat, remove from pairing code in account Skyport account No internet connection on access point Restore internet Firewall restrictions Check firewall settings For additional support, contact Technical Support at thermostatsupport@venstar.com.
-
Page 15: Warranty
Warranty One-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If it appears within one year from the date of original installation, whether or not actual use begins on that date, that the product does not meet this warranty, a new or remanufactured part, at the manufacturer’s sole option to replace any defective part, will be provided without charge for the part itself provided the defective part is returned to the distributor through a qualified servicing dealer. - Page 16 Notice: Only peripherals complying with FCC limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by Venstar, is likely to result in interference to radio and TV reception. Changes or modifications to the product, not expressly approved by Venstar could void the user’s authority to operate the equipment.
