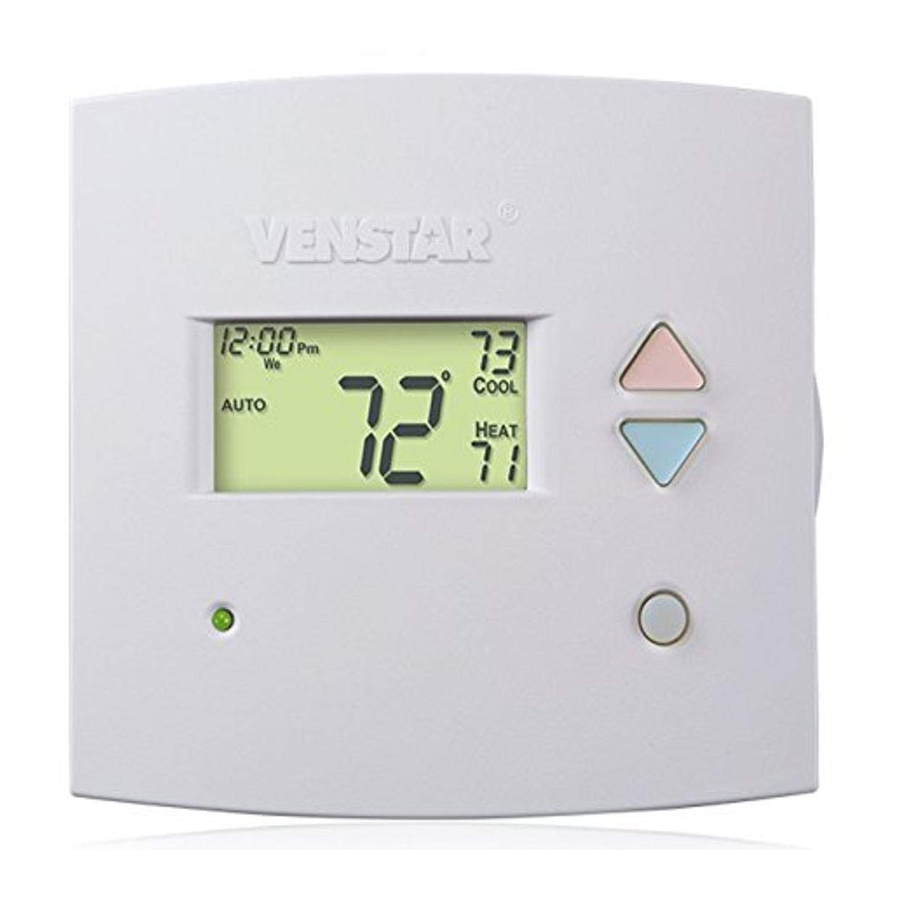

Venstar T2700 Specification

Venstar Non-Programmable Thermostat
STANDARD FEATURES:
•
Non-programmable
•
3 configurable outputs for maximum flexibility (MISC1, MISC2, MISC3)
•
Accepts humidification/dehumidification control module (Venstar part number ACC0430)
•
Auto changeover, 2-stage heat, 2-stage cool for use with gas/electric, heat pump, electric & hydronic heat
•
Configurable for manual changeover
•
Dry contact equipped
•
Set point limiting
•
Random Start
•
Control to, or monitor a second remote sensor
•
Display shows both heating an cooling setpoints and room temperature simultaneously
•
All setpoints stored in non-volatile memory, and are never lost in power failure
•
Service filter and service UV lamp indicators
•
Red/Green LED shows whether thermostat is calling for heating or cooling
•
5-minute compressor time guard and adjustable cycle limit, both defeatable for servicing equipment
•
Outdoor sensor ready (wired or wireless)
•
Thermoglow backlit electro-luminous display and backlit color coded keys and legends
•
Accepts accessory IR Remote Control system (Venstar part number ACC0431)
•
Accepts accessory EZ Programmer (Venstar part number ACC0432)
•
For accessory locking cover use (Venstar part number ACC0620)
MODEL: T2700
JOB NAME:
LOCATION:
BUYER:
ENGINEER:
T2700
QUANTITY: DATE:
BUYER P.O.#:
