- Page 1 DOYON EQUIPMENT INC. 5600, 13th Street Menominee, MI, USA Tel.: 1 (906) 863-4401 Canada / US: 1 (800) 338-9886 FAX: 1 (906) 863-6322 Internet: http://www.doyon.qc.ca service@nu-vu.com e-mail: EM20 - EM30 Product / Produit: Serial number / Numéro de série:...
- Page 2 EM Series Planetary Mixer User Manual Thank you for choosing our product. Please read this manual carefully before using for better understanding of operation. Please retain this manual for future reference. I. Features 1. Enclosed gear transmission with low noise 2.
-
Page 4: Installation Attentions
III. Installation Attentions 1. Mixers to be located in ventilated place. 2. Please leave reserve space around mixers for installation and operation. Recommended reserve space: not less than 30cm for above, not less than 10cm for back and sides, enough operating space for front. 3. -
Page 5: Safety Attentions
V. Safety Attentions The power parameter please see nameplate. If the voltage Separate outlet to be used with the guarantee by range of the power supply is too wide, it may cause the correct grounding. mixer unable to start and the motor burnt. In this case, The EM mixers offer a power cord with three-wire automatic voltage regulator with big capacity must be... - Page 6 Keep kids away from mixers for safety consideration. Do not spray wash during cleaning as it will affect the electrical insulation performance, which may cause injury. Scrub-brush and steel brush are also forbidden for cleaning the mixer to avoid paint damage on the surface of the mixer.
-

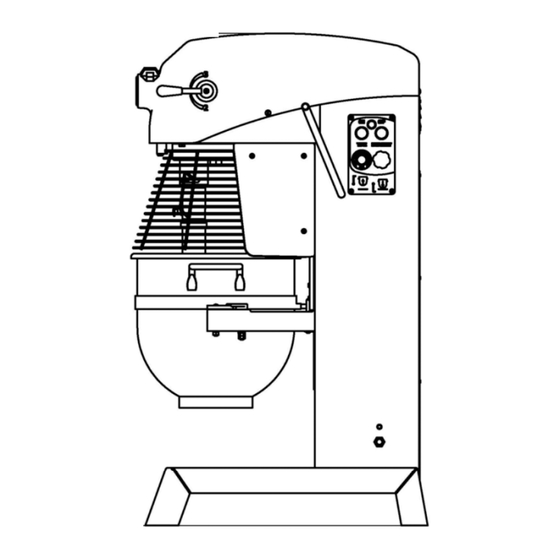

Page 7: Front View
IV. ME20 mixer schematic 1、Front view Support Stainless steel barrel Stirring shaft Handle Connector for mince 9-Tool Lock Pin processor Press board Mixer Handle for fixate mixer Rotation indication Safety grill Gear change handle... -
Page 8: Back View
2、Back view 13-Nameplate 14-Overload switch 15-Emergency stop 16-Stop button 17-Control panel 18-Cover 19-Base 20-Body 21- Lifting handle 22 -Timer 23-Start button 24-Power light VII. Operating Instructions:... - Page 9 1, Power supply to be checked before using to ensure use of the power is in accordance with Power outlet must be 13 Parameter badge. equipped with a good grounding line for safety. 2, Installation of accessory: Use the to lower the bucket 21 Lifting handle until the lowest point, and fit into...
- Page 10 need the function, just adjust to marked position “HOLD” in 22 Timer 17. Control Panel. VIII. Accessory Specification Standard Accessories We have prepared 3 kinds of accessories for different food resource as below: 2、Cleaning before operation Please give a thorough clean to the bucket and accessories before your first use.
- Page 11 material. We recommend Gear I for major operation process. Gear II is only recommended for the ending period of process with no more than 3 minutes for lasting time. 3.2 Hook The hook is used for kneading and stretching. It is mainly used to stir bread and pizza material.
-
Page 12: Maintenance
Material left in the mixer bowl can cause corrosion and bacteria growth, so regular cleaning is needed. 1. For safety consideration, please unplug before cleaning. Use soft towel or sponge with warm water for cleaning.( neutral detergent can be used). Do not use brush with bristle brush or wire brush. - Page 13 Problem Cause Solution Mixer shaft failed to Electrical contact Check electrical activate after mixer failure contact turned on Sealing ring wear Oil leak Change sealing ring Under voltage Check voltage Overload Reduce load Low speed and high Choose proper temperature of motor Improper operation operation tool...
- Page 14 Base assembly E.V. for EM20...
- Page 15 Date: Version: 01 2015-06-02 Item FOUNTER part no. Part Name QTY/ Unit 50304020 Hex nut M14x1.5 50308008 Spring washer 14 50301005 Bearing 6203 40501300 Main shaft oil pad 40501600 Planetary gear 40509000 Spring 50306039 Roller pin 8x15 40501500 Slow speed gear 50405135 Bever gear 50313024...
- Page 16 50301007 Bearing 6205 40502200 Bushing 50310010 Oil seal 50405027 Gasket 50304032 Cap nut M14x1.5 50399041 O-Ring 55x5G 50305053 Phillips screws M6x16 42201100 Attachment hub 50405075 Level drive gear pad 50405136 Level drive gear 50405026 O-Ring 608034 Gasket 50305013 Phillips screws M5x10 50405487 Cover 608034...
- Page 17 50313019 Flat key 5x22 42201500 Planetary shaft 42202600 Agitator Joint Shaft 50304018 Hex nut M10x1 50308006 Spring washer 10 50301003 Bearing 6201 40501000 Gear 40500600 Bushing 50405486 Main shaft cover 40500500 Gear 50312006 Shaft circlips 18 50313013 Flat key 4x14 50312002 Shaft circlips 12 40503800...
- Page 18 50306003 Pin 4x30 50399006 Steel Ball 50406021 Spring 50399049 Sealing O-Ring 33.5x1.8G 42200900 Handle shaft 50305014 Phillips screws M5x12 50405064 Adjusting screw 50406021 Spring 50405029 Pin shaft 40503600 Fork 40502700 Shaft holder 40503500 Fork shaft 50310008 Oil seal 28x47x10 50304006 Nut M10 40501100 Mid-gear wheel...
-
Page 19: Illustrated Wiring Diagram
50501189 Motor 50399050 Sealing O-Ring 9x1.8G 40503100 Handle seat 608034 Gasket XV. Illustrated wiring diagram XVI. Packing list Name Remarks Major Mixer Wire whipper Beater Accessories Hook User Manual Please contact the sales when finding item missing checking from packing list. Please keep the package carefully for future use.
