Datalogic Matrix 300 Quick Reference Manual

Hide thumbs Also See for Matrix 300:

Advertisement

1
2
13
Connector block rotates
to 90° position
This manual illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Fieldbus, Pass-Through, etc.
and for complete reader configuration using the VisiSet™ configuration program, refer to the Matrix 300™ Reference Manual
available on the mini-DVD and also downloadable at www.datalogic.com.
NOTE
Matrix 300™
QUICK REFERENCE GUIDE
2
1
Device Class Label
2
Bracket Mounting Holes (4)
3
Good Read LED (green)
4
Lens Cover
HMI X-PRESS™ Interface
5
6
Lens
7
Internal Illuminator
8
Power - Serial Interfaces - I/O Connector
9
Ethernet Connector
12
10
No Read LED (red)
11
Aiming System Laser Pointers
12
Ethernet Connection LED
13
Power On LED

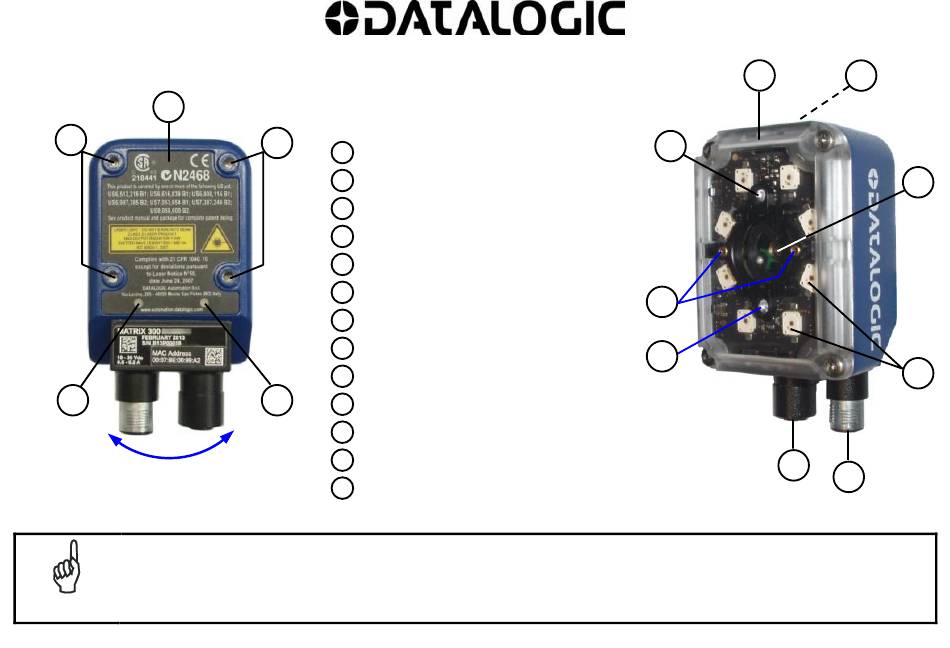

Figure A
4
3
11
10
9
5
6
7
8

Advertisement

Table of Contents
loading

Summary of Contents for Datalogic Matrix 300

  • Page 1 This manual illustrates a Stand Alone application. For other types of installations, such as ID-NET™, Fieldbus, Pass-Through, etc. and for complete reader configuration using the VisiSet™ configuration program, refer to the Matrix 300™ Reference Manual available on the mini-DVD and also downloadable at www.datalogic.com.
  • Page 2: Support Through The Website

    Partner Program; Downloads for additional downloads. LEGAL NOTICES © 2013 Datalogic Automation S.r.l.  ALL RIGHTS RESERVED.  Protected to the fullest extent under U.S. and international laws. Copying, or altering of this document is prohibited without express written consent from Datalogic Automation S.r.l.
  • Page 3: Step 1 - Connect The System

    Figure 1 – Matrix 300™ in Stand Alone Layout CBX100/CBX500 Pinout for Matrix 300™ The table below gives the pinout of the CBX100/CBX500 terminal block connectors. Use this pinout when the Matrix 300™ reader is connected by means of the CBX100/CBX500:...
  • Page 4 MATRIX 300™ QUICK GUIDE CBX100/500 Terminal Block Connectors Power Outputs Power Supply Input Voltage + Power Source - Outputs Power Supply Input Voltage - Power Reference - Outputs Earth Protection Earth Ground Output 1 + Output 1 - Inputs Output 2 + Power Source –...
  • Page 5: Step 2 - Mount And Position The Reader

    MATRIX 300™ QUICK GUIDE STEP 2 – MOUNT AND POSITION THE READER To mount the Matrix 300™, use the mounting bracket to obtain the most suitable position for the reader. The most common mounting configuration is shown in the figure below.
  • Page 6 MATRIX 300™ QUICK GUIDE When mounting the Matrix 300™ take into consideration these three ideal label position angles: Pitch or Skew 10° to 20° and Tilt 0°, although the reader can read a code at any tilt angle provided the code fits into the Field Of View (FOV).
  • Page 7: Step 3 - Aim And Autofocus The Reader

    STEP 3 – AIM AND AUTOFOCUS THE READER (Liquid Lens Models only) Matrix 300™ provides a built-in laser pointer aiming system to aid reader positioning. For Liquid Lens models the autofocus feature is also incorporated into this function. The aiming system is accessed through the X-PRESS™ Interface.
  • Page 8: Step 4 - X-Press™ Configuration

    Setup Function If the calibration cannot be reached after a timeout of about 5 (five) seconds Matrix 300™ will exit without saving the parameters to memory, the Setup LED will stop blinking and in this case Matrix 300™ emits a long low pitched beep.
  • Page 9 Learn Function If the autolearning cannot be reached after a timeout of about 3 (three) minutes Matrix 300™ will exit without saving the parameters to memory, the Learn LED will stop blinking and in this case Matrix 300™ emits a long low pitched beep.
  • Page 10: Step 5 - Installing Visiset™ Configuration Program

    STEP 5 – INSTALLING VISISET™ CONFIGURATION PROGRAM ™ VisiSet is a Datalogic reader configuration tool providing several important advantages: Setup Wizard for rapid configuration and new users; Defined configuration directly stored in the reader; Communication protocol independent from the physical interface allowing the reader to be considered as a remote object to be configured and monitored.
  • Page 11: Step 6 - Configuration Using Setup Wizard

    MATRIX 300™ QUICK GUIDE STEP 6 – CONFIGURATION USING SETUP WIZARD The Setup Wizard option is advised for rapid configuration or for new users. It allows reader configuration in a few easy steps. Select the Setup Wizard button from the Main menu.
  • Page 12 MATRIX 300™ QUICK GUIDE Place the Grade A Barcode Test Chart in front of the reader at the correct reading distance for your application. See “STEP 2 - Mount and Position the Reader” and the Reading Diagrams in the Appendix of this Quick Reference Guide or in the Reference Manual.
  • Page 13 MATRIX 300™ QUICK GUIDE Select a Calibration Mode choice and press the "Calibrate" button. The reader flashes once acquiring the image and auto determines the best exposure and gain settings. Press the "Fine Focusing" button to activate the Focus procedure.
  • Page 14 MATRIX 300™ QUICK GUIDE The reader starts the focus procedure and gives visual feedback in the Setup Wizard window. The Setup Result section of the Setup Wizard window reports the procedure progress (in percentage). At the end of the procedure the Reading Distance, PPI and FOV data are reported.
  • Page 15 MATRIX 300™ QUICK GUIDE The Setup Result section of the Setup Wizard window shows the code type results. Setup Result The Grade A Barcode Test Chart cannot be used to set the Code 128 symbology (even though the reader successfully reads the code). Use...
  • Page 16 MATRIX 300™ QUICK GUIDE Select a Saving Options choice and press the "Save" button. Close the Setup Wizard. If your application has been configured using the VisiSet™ Setup Wizard, your reader is ready. If necessary you can use VisiSet™ for advanced reader configuration.
  • Page 17: Step 7 - Test Mode

    MATRIX 300™ QUICK GUIDE STEP 7 – TEST MODE Use a code suitable to your application to test the reading performance of the system. Enter the Test function by pressing and holding the X-PRESS™ push button until the Test LED is on.
  • Page 18: Advanced Reader Configuration

    MATRIX 300™ QUICK GUIDE ADVANCED READER CONFIGURATION For further details on advanced product configuration, refer to the complete Reference Manual on the installation Mini-DVD or downloadable at www.datalogic.com. The following are alternative or advanced reader configuration methods. ADVANCED CONFIGURATION USING VISISET™...
  • Page 19: Host Mode Programming

    ALTERNATIVE LAYOUTS If you need to install an Ethernet network, ID-NET™ network, or Fieldbus network, refer to the Matrix 300™ Reference Manual. The reader can also be setup for alternative layouts by reading programming barcodes. See the "Setup Procedure Using Programming...
  • Page 20 MATRIX 300™ QUICK GUIDE APPENDIX X-PRESS™ is the intuitive Human Machine Interface designed to improve ease of installation and maintenance. Status and diagnostic information are clearly presented by means of the five colored LEDs, whereas the single push button gives immediate...
  • Page 21: Reading Features

    MATRIX 300™ QUICK GUIDE READING FEATURES Code 128 0.25 mm (10 mils) Measurement Conditions: Tilt Angle: 45° Skew Angle: 15° See the Matrix 300™ Reference Manual complete list conditions. For applications where DOF is important, pre-configured .ini files are provided which correspond to these reading diagrams.
  • Page 22 MATRIX 300™ QUICK GUIDE Code 128 0.30 mm (12 mils) Measurement Conditions: Tilt Angle: 45° Skew Angle: 15° See the Matrix 300™ Reference Manual complete list conditions. For applications where DOF is important, pre-configured .ini files are provided which correspond to these reading diagrams.
  • Page 23 MATRIX 300™ QUICK GUIDE Data Matrix Code 0.19 mm (7.5 mils) Measurement Conditions: Tilt Angle: 45° Skew Angle: 15° See the Matrix 300™ Reference Manual complete list conditions. For applications where DOF is important, pre-configured .ini files are provided which correspond to these reading diagrams.
  • Page 24 MATRIX 300™ QUICK GUIDE Data Matrix Code 0.25 mm (10 mils) Measurement Conditions: Tilt Angle: 45° Skew Angle: 15° See the Matrix 300™ Reference Manual complete list conditions. For applications where DOF is important, pre-configured .ini files are provided which correspond to these reading diagrams.
  • Page 25 MATRIX 300™ QUICK GUIDE TECHNICAL FEATURES ELECTRICAL FEATURES 4x2-01x models 4x2-04x models Power Supply Voltage 10 to 30 Vdc PoE Device 48 Vdc Consumption 0.7 to 0.2 A max 13 W max. Communication Interfaces Main - RS232 2400 to 115200 bit/s...
  • Page 26 MATRIX 300™ QUICK GUIDE ENVIRONMENTAL FEATURES Operating Temperature 0 to 50 C (32 to 122 °F) Storage Temperature -20 to 70 C (-4 to 158 °F) Max. Humidity 90% non condensing Vibration Resistance 14 mm @ 2 to 10 Hz; 1.5 mm @ 13 to 55 Hz;...
  • Page 27 MATRIX 300™ QUICK GUIDE CODE QUALITY METRICS Standard Supported Symbologies ISO/IEC 16022 Data Matrix ECC 200 ISO/IEC 18004 QR Code ISO/IEC 15415 Data Matrix ECC 200, QR Code ISO/IEC 15416 Code 128, Code 39, Interleaved 2 of 5, Codabar, Code 93, EAN-8/13, UPC-A/E...
  • Page 28: Mechanical Dimensions

    MATRIX 300™ QUICK GUIDE MECHANICAL DIMENSIONS Matrix 300™ Overall Dimensions [in] 0° and 90° Solutions 20.5 [0.81] [2.12] [1.69] [1.42] M4 n°4 20.5 [0.81] OPTICAL AXES [2.13] [1.42] M4 N°4 OPTICAL AXES Connector block rotates to 90° position...
  • Page 29 MATRIX 300™ QUICK GUIDE Ø4.5 [Ø0.18] [1.85] [0.18] M 4 N°5 90° [1.85] 17.7 [0.70] [in] [1.42] [0.18] Ø8.2 [Ø0.32] Figure 13 – Mounting Brackets Overall Dimensions...
  • Page 30: Emc Compliance

    Additional patents pending. COMPLIANCE See the Matrix 300™ Reference Manual for the Declaration of Conformity. For installation, use and maintenance it is not necessary to open the reader. Only connect Ethernet and dataport connections to a network which has routing only within the plant or building and no routing outside the plant or building.
  • Page 31: Power Supply

    LASER SAFETY The Matrix 300™ internal illuminators contain two aiming Laser LEDs used to position the reader. Therefore the product is classified as a Class 2 laser product according to IEC 60825-1 regulations and as a Class II laser product according to CDRH regulations. Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to hazardous laser light.
  • Page 32: Fcc Compliance

    FCC COMPLIANCE Modifications or changes to this equipment without the expressed written approval of Datalogic could void the authority to use the equipment. This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference which may cause undesired operation.
