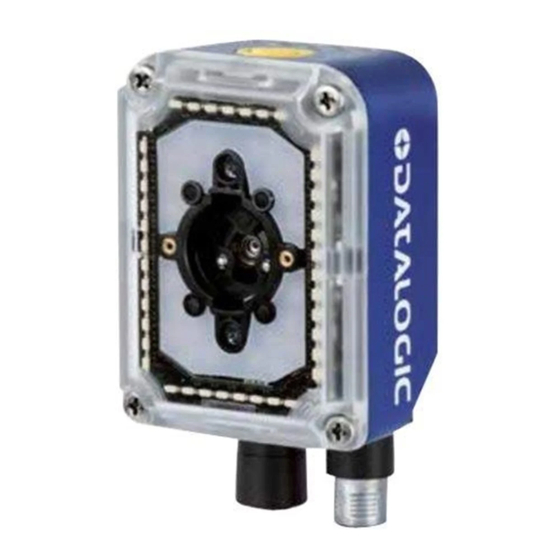

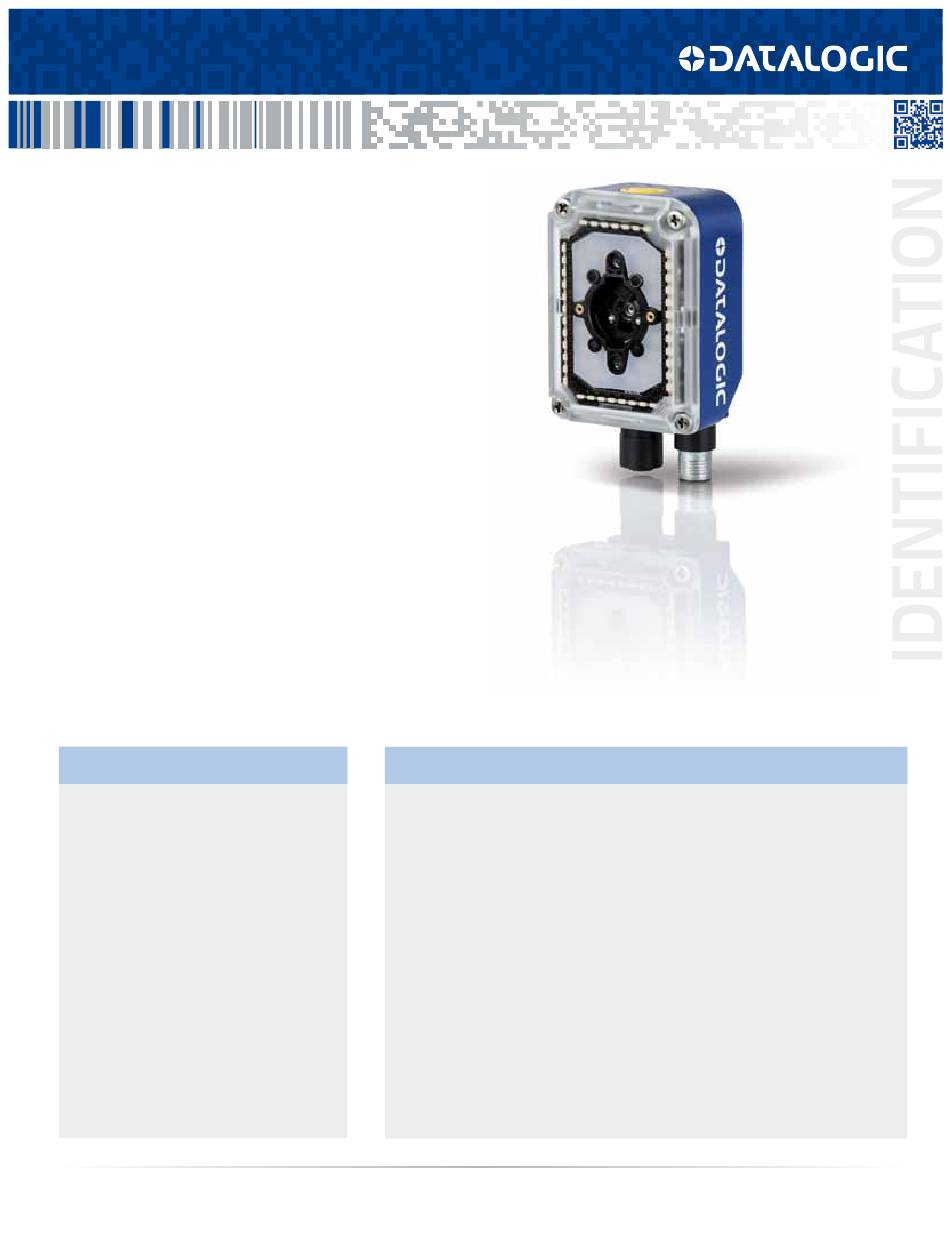

MATRIX 300™
The Matrix 300™ is a ultra-compact image based
bar code reader designed for performance on high
speed and Direct Part Marking (DPM) applications.
The Matrix 300™ combines a high resolution sensor
with ultra-fast image acquisition: 1.3 megapixels,
60 frames per second. The optical system
incorporates a liquid lens module for the electronic
control of the focus. As result the reader offers
automatic focus adjustment without the addition
of moving parts.
The integrated illuminator is embedded over the
entire front surface of the reader. This innovative
design results in bright and uniform illumination of
the bar code. The lighting design uses both bright
field and dark field patterns which provide perfect
illumination on normal, etched, highly reflective or
textured surfaces.
With exceptionally small physical dimensions and
rotating connector, the Matrix 300™ can be easily
integrated into the tightest spaces. The Power
over Ethernet (POE) option is one of the unique cost
effective features, power and communication is
provided to the reader through a standard single
Ethernet connection.
The Matrix 300™ is the most cost effective solution
for bar code imagers, providing onboard PROFINET-
IO and eliminating external communication boxes
or converters. The Matrix 300™ interfaces directly
with a PROFINET enabled PLC, reducing the
complexity and cost of the solution. The M12, 4 pole
connection sets a standard that allows for easy
integration into existing systems.
HIGHLIGHTS
• Ultra-compact reader
• High performance DPM reading
• Liquid Lens Dynamic Focus Control
• Integrated dual illuminator: dark
field/bright field
• Fast and high resolution image
sensor: 1.3 megapixels, 'true' 60
frame/s
• Power over Ethernet Option
• Extreme Industrial grade: IP67,
0-50°C operating temperature
• Precise dual laser aiming system
• On-board PROFINET-IO
APPLICATIONS
• Manufacturing, Electronics and
Automotive:
- DPM code validation after
marking
- Work-in-progress control
- Parts and assemblies
traceability
• Food and Beverage
- Work-in-progress traceability
• Document Processing
- High speed process control
• Medical
- Medical device traceability
• Clinical Lab Automation
- Biomedical analysis machines
- Specimen collection machines
• Logistics Automation
- Carton and tote traceability
- Automated warehousing
