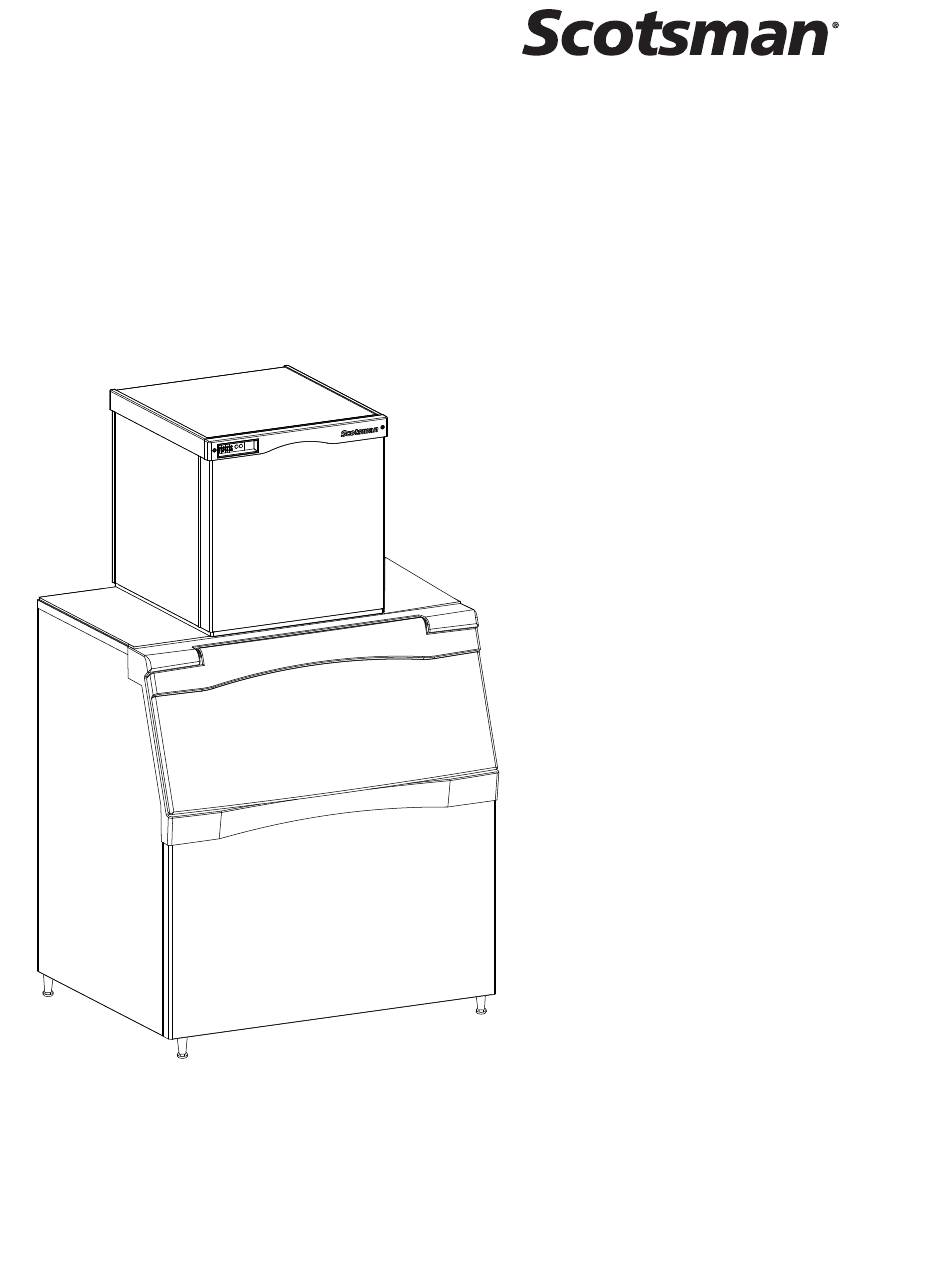

- Page 1 User and Installation Manual for Modular Flaked & Nugget Ice Machines Models F0822, F1222, F1522, N0622, N0922 and N1322 Remote Low Side...
-
Page 2: Table Of Contents
This ice machine is the result of years of experience with flaked and nugget ice machines. The latest in electronics has been coupled with the time tested Scotsman flaked ice system to provide reliable ice making and the features needed by customers. The features include simple... -
Page 3: Installation
Maximum supply to the machine which contributes to this 115 volt situation. Testing has shown that using a filter that does not remove chlorine, such as the Scotsman Aqua Patrol, will greatly improve this situation. Minimum conductivity (RO water) •... -
Page 4: Location
24 inches. manufactured with the highest regard for safety and performance. Bin & adapter list: Scotsman assumes no liability of responsibility of • B222S – no adapter needed any kind for products manufactured by Scotsman •... -
Page 5: Cabinet Layout
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Cabinet Layout Note: Bin Top Cut-outs for drop zone should include ultrasonic sensor location 58.1 22.89 55.9 22.00 REF. [68.6] 31.8 27.00 12.50 ULTRA SONIC BIN LEVEL SENSOR OPTIONAL 24.00 PLAN VIEW REF. -
Page 6: Unpacking
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Unpacking Remove the carton from the skid. Check for hidden Panel Removal freight damage, notify the carrier immediately if any is found. Retain the carton for the carrier’s 1. Locate and loosen the two screws at the front inspection. -
Page 7: Water
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Water The water supply for ice making must be cold, potable water. There is a single ” male flare potable water connection on the back panel. Backflow The design of the float valve and reservoir prevents potable water backflow by means of a 1"... -
Page 8: Electrical
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Electrical The machine includes a power cord, connect to the proper power supply. A separate circuit is recommended to avoid unintended shut downs. If a dedicated condensing unit is connected to this machine, it will have a separate power supply. -
Page 9: Refrigeration
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Refrigeration BTUH Capacity Requirements Roof Attachment Install and attach the remote condensing unit to the Model BTUH roof of the building, using the methods and N0622L or F0822L 4,000 practices of construction that conform to the local building codes, including having a roofing N0922L, F1222L... -
Page 10: Final Check List
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Final Check List After Connections Control Operation 1. Wash out the bin. If desired, the interior of the Use and Operation bin could be sanitized. Once started, the ice machine will automatically 2. -
Page 11: Initial Start Up
EPR setting. For optimum performance, coil every time the ice machine is cleaned. adjust the EPR to the settings in the chart below: Maintenance: Exterior Panels Scotsman Model Number Rack The front and side panels are durable stainless Condensing Unit steel. -
Page 12: Scale Removal
Remove the water reservoir cover. 16. Switch the water supply to the ice machine on. 7. Mix a solution of 8 ounces of Scotsman Clear 17. Operate the machine for 20 minutes. One Scale Remover and 3 quarts of 95-115 degree F. -
Page 13: Check Top Bearing
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Check Top Bearing This task should only be done by a qualified service technician The bearing in the breaker should be checked at least two times per year. Check the bearing by: Removing the bail clamp and ice chute cover Bail Clamp Removing the water shed &... -
Page 14: Bearing Service
Drip Pan Scotsman grease needle pn 02-3559-01 and Scotsman bearing grease cartridge, pn A36808-001. Be sure to inject grease evenly and thoroughly. -
Page 15: Options
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Options Vari-Smart Dispenser applications - Nugget ice only: Optional adjustable ice level control (KVS) Set the adjustment knob to Full either the first or second Adjust Ice Level position CW after the maximum fill position. -
Page 16: Service Diagnosis
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual Service Diagnosis Symptom Probable Cause Possible Correction Check that ice machine and condensing unit, if used, both No power have power. If power light is out, check transformer. Code 3: No water Restore water Status light is off Push and release ON switch... -
Page 17: What To Do Before Calling For Service
N0622L, F0822L, N0922L, F1222L, N1322L, F1522L Remote Low Side User's Manual What to do before calling for service Normal Operation automatically restart within minutes after water begins to flow to it. 2. Has power been shut off to the ice machine? If The machine will make either flaked or nugget ice, yes, the ice machine will automatically restart when power is restored. - Page 18 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www.scotsman-ice.com 17-3226-01...
