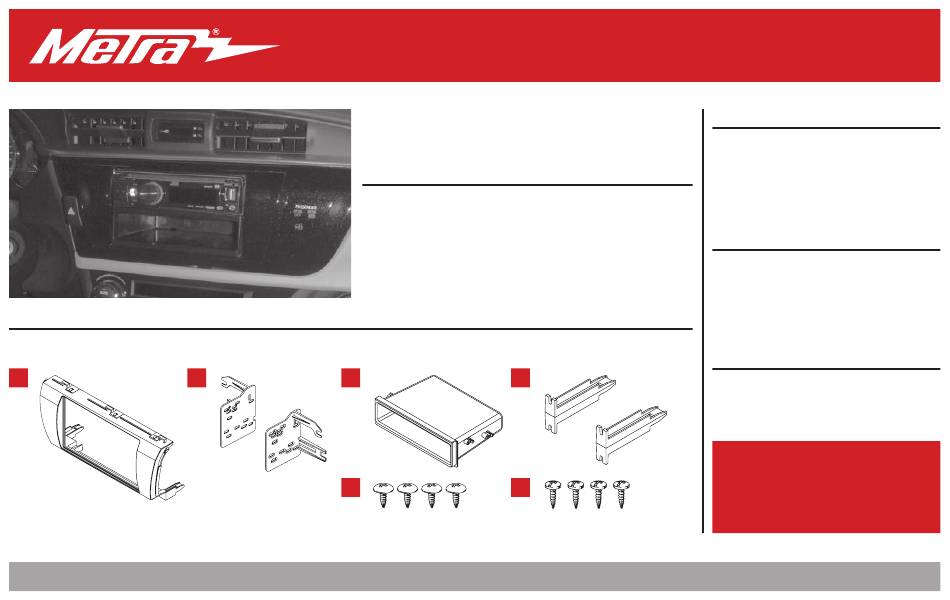

KIT COMPONENTS
• A) Radio housing • B) Radio brackets • C) Pocket • D) (2) Panel clip mounts • E) (4) #8 x 3/8" Truss head Phillips screws • F) (4) #4 x 3/8" Phillips screws
A
The World's best kits.
®
Toyota Corolla
KIT FEATURES
• ISO DIN radio provision with pocket
• Painted charcoal high gloss
B
C
E
MetraOnline.com
2014-2016
D
F
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
99-8245CHG
I N S TA L L AT I O N I N S T R U C T I O N S
U.S. Patent # D733,117
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
– ISO DIN radio provision with pocket .................3
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: 70-1761
Antenna Adapter: 40-LX11
Steering Wheel Control Interface: ASWC-1
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 11/13/17 INST99-8245CHG
Advertisement
Related Manuals for Metra Electronics 99-8245CHG
Summary of Contents for Metra Electronics 99-8245CHG
- Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/13/17 INST99-8245CHG...
- Page 2 DASH DISASSEMBLY 1. Unclip and remove the entire panel around the radio from the instrument cluster to the passenger side of the dash including the clock and A/C vents. (Figure A) Note: Start on the passenger side with the glove box open. 2.
- Page 3 KIT ASSEMBLY ISO DIN radio provision with pocket Secure the pocket to the radio brackets with the (4) #8 x 3/8” Phillips screws supplied. (Figure A) 2. Remove the metal DIN sleeve and trim ring from the aftermarket radio. 3. Slide the radio into radio brackets and secure with screws supplied with the radio.
- Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/13/17 INST99-8245CHG...
- Page 5 Además, no quite el radio de fábrica con la llave en la posición o de encendido ni con el vehículo funcionando. The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/13/17 INST99-8245CHG...
- Page 6 DESMONTAJE DEL TABLERO 1. Desenganche y quite todo el panel alrededor del radio desde el conjunto de instrumentos al tablero del lado del pasajero, incluyendo el reloj y las rejillas del aire acondicionado. (Figura A) Nota: Empiece en el lado del pasajero con la guantera abierta.
- Page 7 ENSAMBLE DEL KIT Provisión de radio ISO DIN con cavidad 1. Sujete la cavidad en los soportes del radio con los (4) tornillos Phillips #8 de 3/8” suministrados. (Figura A) 2. Quite la manga de metal DIN y el anillo de moldura del radio de mercado secundario.
- Page 8 800-354-6782 para obtener más información y avance hacia un futuro mejor. Metra recomienda técnicos con certificación del Programa de Certificación en Electrónica Móvil (Mobile Electronics Certification Program, MECP). The World’s best kits. MetraOnline.com ® © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 11/13/17 INST99-8245CHG...
