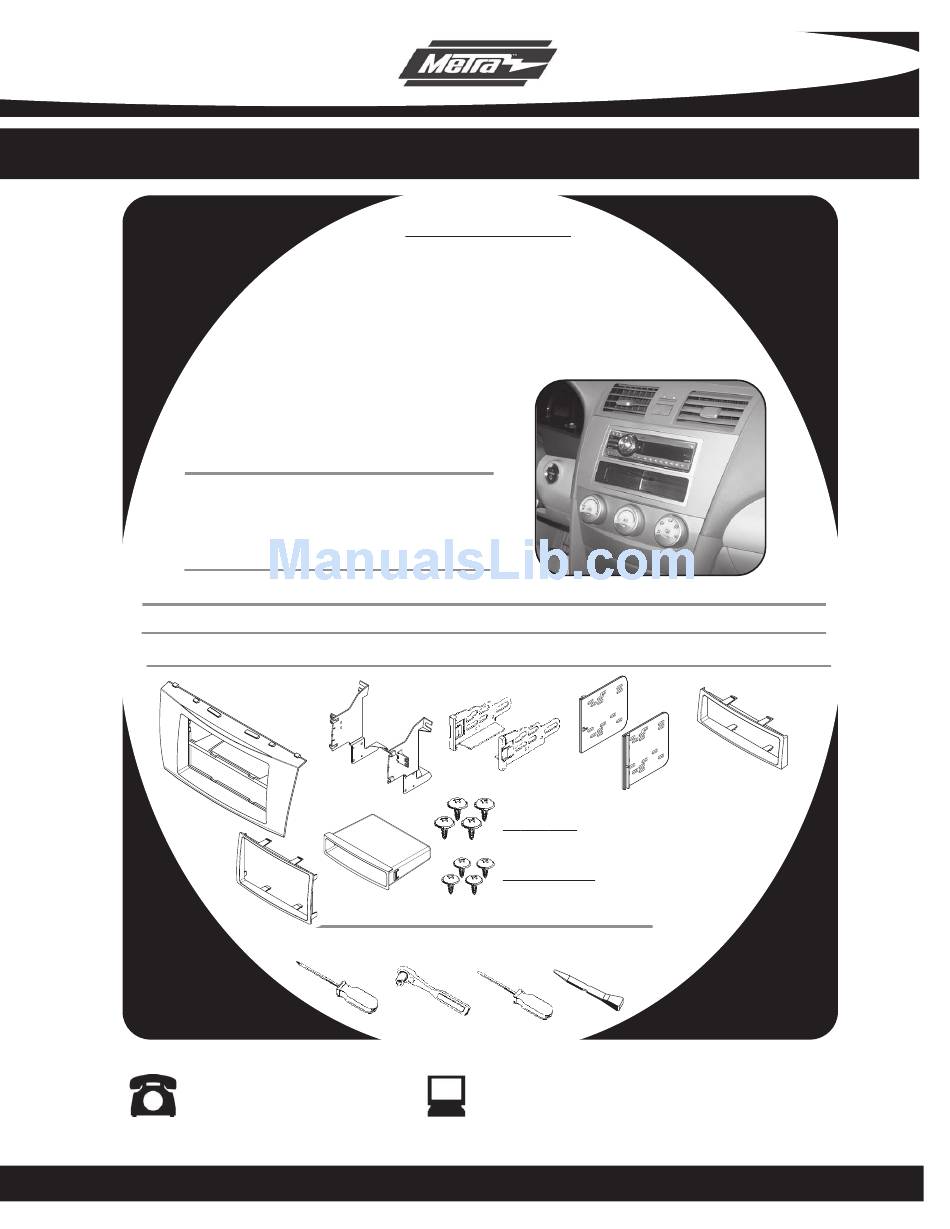

INSTALLATION INSTRUCTIONS FOR PART 99-8218
CAMRY / CAMRY HYBRID
99-8218
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Units Provision
KIT COMPONENTS
A) Radio Housing • B) Radio Housing Brackets • C) ISO Snap-In Brackets • D) Double DIN Brackets
E) Trim Plate • F) Double DIN Trim Plate • G) Pocket • H) (4) # 8 x 3/8 Phillips Screws • I) (4) #4 x 1/4 Phillips Screws
A
F
Phillips Screwdriver
1-800-221-0932
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
APPLICATIONS
TOYOTA
2007-2011
B
C
H
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Wire harness:
• 70-1761 Toyota 1987-up
I
• TYTO-01 Toyota amp interface harness 2003-up
Antenna adapter:
G
• Not required
TOOLS REQUIRED:
• Socket
Small Flat Blade Screwdriver or
www.metraonline.com
E
D
Panel Removal Tool
Advertisement
Related Manuals for Metra Electronics 99-8218
Summary of Contents for Metra Electronics 99-8218
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-8218 CAMRY / CAMRY HYBRID 99-8218 KIT FEATURES • DIN Radio Provision with Pocket • ISO Radio Provision with Pocket • Double DIN Radio Provision • Stacked ISO Units Provision KIT COMPONENTS A) Radio Housing • B) Radio Housing Brackets • C) ISO Snap-In Brackets • D) Double DIN Brackets E) Trim Plate •...
-
Page 2: Table Of Contents
99-8218 TABLE OF CONTENTS Dash Disassembly - Toyota Camry / Camry Hybrid 2007-2011 ... . 1, 2 Kit Assembly - DIN Radio Provision with Pocket ..... 3 - ISO Radio Provision with Pocket . -
Page 3: Dash Disassembly
99-8218 TOYOTA CAMRY/CAMRY HYBRID 2007-2011 Disconnect the negative battery terminal to prevent an accidental short circuit. Turn the shift knob counterclockwise to remove. Unclip and remove (1) trim panel from each side of the pocket below the radio/climate control assembly. (2 panels total) - Page 4 (Retain climate controls and screws for use during kit assembly). (Figure C) Unscrew and remove the (2) Clips from the back of the factory radio. (Retain clips for use during kit assembly. (Figure C) Continue to kit assemby. 99-8218 DASH DISASSEMBLY...
-
Page 5: Kit Assembly
99-8218 DIN RADIO PROVISION WITH POCKET NOTE: Refer also to the instructions included with the aftermarket radio. Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the after-market radio into the cage until it snaps into place. -
Page 6: Iso Radio Provision With Pocket
99-8218 ISO RADIO PROVISION WITH POCKET NOTE: Refer also to the instructions included with the aftermarket radio. Mount the ISO Brackets to the radio with the screws supplied with the radio. (Figure A) Slide the radio into the radio open- ing until the side clips engage. -
Page 7: Double Din Radio Provision
99-8218 DOUBLE DIN RADIO PROVISION NOTE: Refer also to the instructions included with the aftermarket radio. Cut and remove center divider from radio housing. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing. (Figure B) -
Page 8: Stacked Iso Units Provision
99-8218 STACKED ISO UNITS PROVISION NOTE: Refer also to the instructions included with the aftermarket radio. Cut and remove center divider from radio housing. (Figure A) Snap the Double DIN brackets to the inside edge of the radio housing. (Figure B) -
Page 9: Final Assembly
99-8218 FINAL ASSEMBLY Locate the factory wiring harness in the dash. Metra recommends using the proper mating adapter and making connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.) Re-connect the negative battery terminal and test the unit for proper operation. - Page 10 99-8218 NOTES...
- Page 11 99-8218 NOTES...
- Page 12 99-8218 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 07-22-10 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-8218...
