Universal Electronics MILLENNIUMTM 3 User Manual

Universal electronics user's guide universal remote control millenniumtm 3
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version

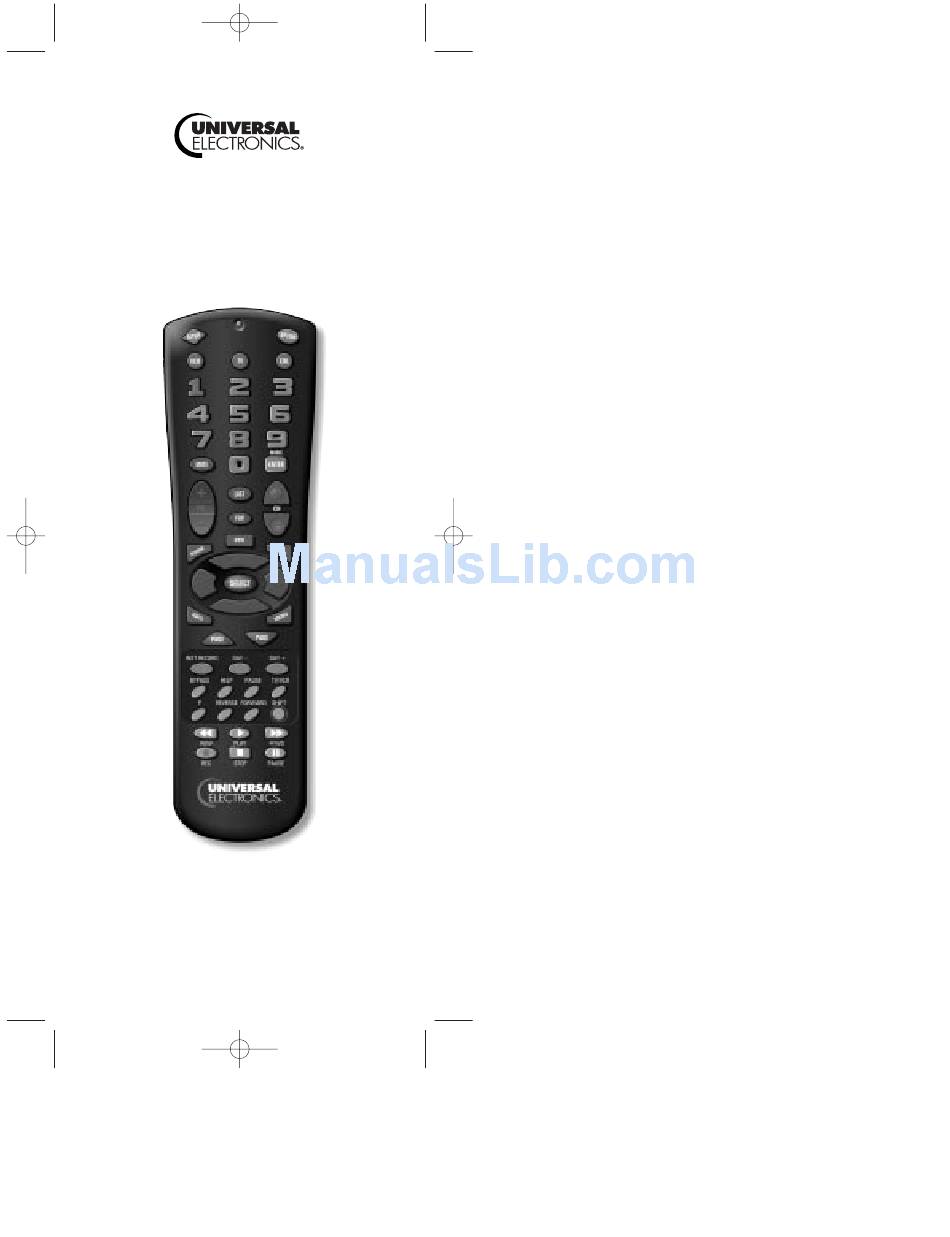

Millennium 3 Mnl M3090
8/16/99 9:26 AM
Page 1
™
MILLENNIUM
3
Universal Remote Control
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Universal Electronics MILLENNIUMTM 3

Summary of Contents for Universal Electronics MILLENNIUMTM 3

  • Page 1 Millennium 3 Mnl M3090 8/16/99 9:26 AM Page 1 ™ MILLENNIUM Universal Remote Control User’s Guide...

  • Page 2: Table Of Contents

    Millennium 3 Mnl M3090 8/16/99 9:26 AM TABLE OF CONTENTS Introduction ....... . 3 Features And Functions .

  • Page 3: Introduction

    Millennium 3 Mnl M3090 8/16/99 9:26 AM INTRODUCTION The Universal Electronics Millennium™ 3 is our latest generation universal remote control. It is designed to operate all of the features of your cable converter and only the most-used features of your TV (e.g.,Volume Up/Down) and VCR (e.g., Play, Stop, Fast Forward,...

  • Page 4: Features And Functions

    Millennium 3 Mnl M3090 8/16/99 9:26 AM Page 4 FEATURES AND FUNCTIONS Use the illustration below to locate Millennium 3 features and then study the Key Charts (on the next two pages) to learn how they function.

  • Page 5: Key Charts

    Millennium 3 Mnl M3090 8/16/99 9:26 AM Page 5 Key Charts The LED (red light) blinks to show that the remote control is working and is sending signals. Press VCR, TV, or CBL once to turn on or off a selected component. Use SETUP for all programming sequences.
  • Page 6 Millennium 3 Mnl M3090 8/16/99 9:26 AM Page 6 Key Charts (continued) Use SELECT/OK to choose options, PPV events, and to tune programs from the program guide. Use INFO to display current channel and program information. Press MENU once to display your cable converter’s screen menu.

  • Page 7: Installing Batteries

    Millennium 3 Mnl M3090 8/16/99 9:26 AM INSTALLING BATTERIES On the back of the Millennium 3, push the tab and lift off the battery cover. Obtain two (2) fully-charged AA alkaline bat- teries. Match the + and – marks on the batter- ies to the + and –...

  • Page 8: Programming Tv Control

    Millennium 3 Mnl M3090 8/16/99 9:26 AM PROGRAMMING TV CONTROL NOTE: If you own a TV/VCR combination, skip this section and perform “Programming TV/VCR Combo Control” on page 16. Locate the brand name of your TV in the Setup Codes For TVs section below, and write it in the following space.
  • Page 9 Millennium 3 Mnl M3090 8/16/99 9:26 AM Anam 0180 Anam National 0055 Archer 0003 Audiovox 0451, 0180, 0003, 0092, 0623 Baysonic 0180 Belcor 0019 Bell & Howell 0154, 0016 Bradford 0180 Brockwood 0019 Broksonic 0236, 0463, 0003 0180 Candle 0030, 0056, 0046, 0186 Carnivale 0030 Carver...
  • Page 10 Millennium 3 Mnl M3090 8/16/99 9:26 AM Setup Codes for TVs (continued): 0053 Janeil 0046 0180 0180, 0030, 0039, 0185, 0280 Kaypani 0052 Kenwood 0030, 0019 Kloss 0024, 0046 0056 0047, 0054, 0154, 0156, 0178 Logik 0016 Luxman 0056 0185 0150, 0030, 0178, 0019 0060, 0030, 0019, 0056, 0185 Magnavox...
  • Page 11 Millennium 3 Mnl M3090 8/16/99 9:26 AM Rhapsody 0185 Runco 0017, 0030, 0497 0180, 0019 Sampo 0030, 0039, 0032, 0052 Samsung 0060, 0030, 0178, 0019, 0056, 0032 Samsux 0039 Sansei 0451 Sansui 0463 Sanyo 0154, 0146, 0159 Scimitsu 0019 Scotch 0178 Scott 0236, 0180, 0178, 0019, 0179...

  • Page 12: Programming Vcr Control

    Millennium 3 Mnl M3090 8/16/99 9:26 AM PROGRAMMING VCR CONTROL NOTE: If you own a TV/VCR combination, skip this section and perform “Programming TV/VCR Combo Control” on page 16. Locate the brand name of your VCR in the Setup Codes For VCRs section below, and write it in the following space.
  • Page 13 Millennium 3 Mnl M3090 8/16/99 9:26 AM Audiovox 0037 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209, 0002, 0479 0072, 0278 Calix 0037 Canon 0035 Capehart 0020 Carver 0081 Cineral 0278 Citizen 0037, 0278 Colt 0072 Craig 0037, 0047, 0240, 0072, 0271 Curtis Mathes 0060, 0035, 0041, 0162 Cybernex...
  • Page 14 Millennium 3 Mnl M3090 8/16/99 9:26 AM Setup Codes for VCRs (continued): Magnavox 0035, 0039, 0081, 0000, 0149 Magnin 0240 Marantz 0035, 0081 Marta 0037 Matsushita 0035, 0162 Memorex 0035, 0037, 0048, 0039, 0047, 0240, 0000, 0104, 0162, 0046, 0307 Minolta 0042, 0105 Mitsubishi...
  • Page 15 Millennium 3 Mnl M3090 8/16/99 9:26 AM Shintom 0072 Shogun 0240 Singer 0072 Sony 0035, 0032, 0000, 0033, 0034 Sylvania 0035, 0081, 0000, 0043 Symphonic 0000 0240, 0208 Tatung 0041 Teac 0000, 0041 Technics 0035, 0162 Teknika 0035, 0037, 0000 Thomas 0000 Toshiba...

  • Page 16: Programming Tv/Vcr Combo Control

    Millennium 3 Mnl M3090 8/16/99 9:26 AM PROGRAMMING TV/VCR COMBO CONTROL Locate the brand name of your TV/VCR Combo in the Setup Codes For TV/VCR Combos section below, and write it in the following space. TV/VCR Combo Brand: ________________________ The brands are listed in alphabetical order with popular codes listed first.You will use one of these codes to pro- gram the Millennium 3 to operate your TV/VCR Combo: Turn on your TV/VCR Combo and insert a...

  • Page 17: Setup Codes For Tv/Vcrs

    Millennium 3 Mnl M3090 8/16/99 9:26 AM Write your TV/VCR Combo code in the boxes below for future reference. NOTE: Remember, to use the Millennium 3 to operate your TV/VCR Combo, press VCR first. Setup Codes for TV/VCR Combos: American High 0035 (for TV use 0051) Brocksonic 0002, 0294,...

  • Page 18: Programming Cable Converter (Or Dbs Receiver) Control

    Millennium 3 Mnl M3090 8/16/99 9:26 AM PROGRAMMING CABLE CONVERTER (OR DBS RECEIVER) CONTROL The Millennium 3 is preprogrammed at the factory to operate the cable converter given to you by your cable company. However, if you have another brand or model of cable converter or satellite receiver that you would like to control, then you’ll need to perform the following instructions to unlock the cable key, enter in a new code,...

  • Page 19: To Lock The Cable Key

    Millennium 3 Mnl M3090 8/16/99 9:26 AM Aim the Millennium 3 at your Cable Converter or DBS Receiver and press CBL once. The unit should turn off. If it does not respond, repeat steps 2-3, trying each code listed for your brand until you find one that works.

  • Page 20: Setup Codes For Dbs Receivers

    Millennium 3 Mnl M3090 8/16/99 9:26 AM Setup Codes for Cable Converters (continued): Samsung 0144 Scientific Atlanta 0008, 0477, 0017, 0277, 0774, 0877 Sprucer 0021 Starcom 0003 TV86 0063 Tocom 0012, 0013 Toshiba 0000 Viewstar 0063 Zenith 0000, 0525, 0899 Setup Codes for DBS Receivers: AlphaStar 0772...

  • Page 21: Using The Shift Key

    Millennium 3 Mnl M3090 8/16/99 9:26 AM USING THE SHIFT KEY The SHIFT key is designed to provide access to channel control capabilities of your TV (e.g., Digits 0-9, Up/Down, Enter, and Last) and Video On Demand (VOD) features of your cable converter.

  • Page 22: Searching For Your Code

    Millennium 3 Mnl M3090 8/16/99 9:26 AM SEARCHING FOR YOUR CODE If your TV,VCR, or Cable Converter does not respond to the Millennium 3 after trying all of the codes listed for your brand, or if your brand is not listed at all, try search- ing for your code.

  • Page 23: Checking The Codes

    Millennium 3 Mnl M3090 8/16/99 9:26 AM CHECKING THE CODES If you have set up the Millennium 3 using the Searching For Your Code procedure, you may need to find out which four-digit code is operating your equipment: For example, to find out which code is operating your TV: Turn on your TV.

  • Page 24: Programming The Option Key

    Millennium 3 Mnl M3090 8/16/99 9:26 AM PROGRAMMING THE OPTION KEY FOR A SPECIFIC CHANNEL OR KEY SEQUENCE The Millennium 3 includes one OPTION key that can be programmed to remember up to three of your favorite channel settings. Or you can set it to remember a sequence of key presses, such as “All On /All Off”, so you can turn on/off your components with a single key press.

  • Page 25: To Clear The Option Key

    Millennium 3 Mnl M3090 8/16/99 9:26 AM To clear the OPTION key: On the Millennium 3, press and hold SETUP until the LED blinks twice, then release SETUP. Enter 9 - 9 - 5. The LED will blink twice. Press OPTION once. Press and hold SETUP until the LED blinks twice, then release SETUP.

  • Page 26: Troubleshooting

    Millennium 3 Mnl M3090 8/16/99 9:26 AM TROUBLESHOOTING PROBLEM: LED does not blink or blinks twice when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see page 7). PROBLEM: LED blinks when you press a key, but home entertainment component does not respond.

  • Page 27: Additional Information

    (do not type in http:// or www before the address) For help via e-mail, contact us at: CableHelp@ueic.com Copyright 1999 by Universal Electronics Inc. No part of this publication may be reproduced, transmitted, tran- scribed, stored in any retrieval system, or translated to...
  • Page 28 Millennium 3 Mnl M3090 8/16/99 9:26 AM Page 28...
