HOW TO ORDER REPAIR PARTS
This manual will help you to obtain efficient, dependable service
from the heater, and enable you to order repair parts correctly.
Keep this manual in a safe place for future reference.
When writing, always give the full model number which is on the
nameplate attached to the inside of the cabinet door of the
heater.
When ordering repair parts or options, always
give the following information as shown in this list:
1. The PART NUMBER
2. The PART DESCRIPTION
3. The MODEL NUMBER: 2827
4. The SERIAL NUMBER:________________
Before installing your heater, fill in the serial number of your
heater in the space provided above.
United States Stove Company
227 Industrial Park Rd.
South Pittsburg, TN 37380
(423) 837-2100
Owners Manual
Model 2827

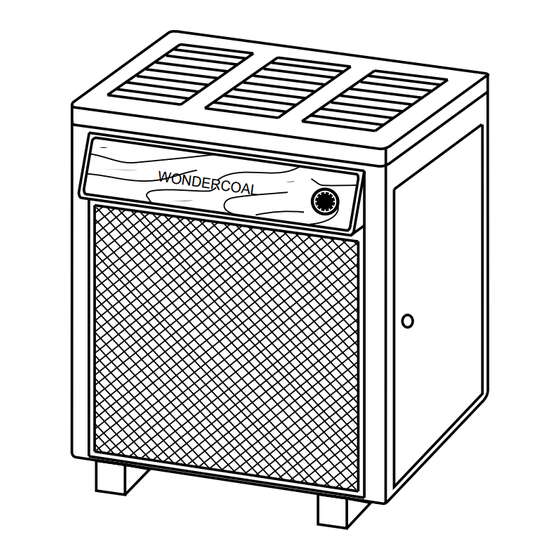

WONDERCOAL
AUTOMATIC COAL BURNING CIRCULATOR HEATER
*ASSEMBLY
*INSTALLATION
*OPERATION
*REPAIR PARTS
Tested to UL 1482 &
CAN/ULC-S627
SAFETY NOTICE:
If this heater is not properly installed, a house fire may result.
For your safety, follow the installation directions.
Contact local building or fire officials about restrictions and
inspection requirements in your area.
CAUTION:
Read all instructions carefully before starting the installation
or operation of this heater.
Improper installation may void your warranty.
DO NOT USE THIS HEATER IN A MOBILE HOME OR TRAILER
United States Stove Company
227 Industrial Park Rd.
S
C
U
South Pittsburg, TN 37380
S
(423) 837-2100
www.USSTOVE.com
85862G
02/01
Advertisement
Table of Contents
Related Manuals for USSC Wondercoal 2827
Summary of Contents for USSC Wondercoal 2827
-
Page 1: How To Order Repair Parts
1. The PART NUMBER 2. The PART DESCRIPTION 3. The MODEL NUMBER: 2827 4. The SERIAL NUMBER:________________ Before installing your heater, fill in the serial number of your heater in the space provided above. -
Page 2: Fig.
Fig. 1 32 1/4 CENTER LINE OF 6" 12 1/2 CHIMNEY CONNECTOR WONDERCOAL 33 1/2 4 1/8 TOP OF FLOOR PROTECTOR MATERIALS 19 1/4 1 1/4 CENTER LINE OF 6" CHIMNEY CONNECTOR Options for Wondercoal Circulator Model 2827 F36 Blower... -
Page 3: Heater
RULES FOR SAFE INSTALLATION AND OPERATION Read these rules and the instructions carefully. SAFETY NOTICE: If this heater is not properly installed, a house fire may result. For your safety, follow the installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. -
Page 4: Table Of Contents
25" Fig. 3 35" 12" NON-COMBUSTIBLE CONSTRUCTION IN ACCORDANCE WITH NFPA 211 REPAIR PARTS LIST - MODEL 2827 (SEE PAGE 18) AUTOMATIC COAL BURNING CIRCULATOR Key No. Description Shaker Second Heat Shield Assembly Heat Shield Draft Damper Hinge Pin Draft Damper Frame... -
Page 5: Fig.
Secondarily, though, the chimney provides "Draft" which allows oxygen to be continuously introduced into the appliance, so that proper combustion is possible. As of April 1, 1987, all heaters and furnaces manufactured by United States Stove Company should be installed using a factory built chimney that meets the "Type HT"... -
Page 6: Repair Parts
CAUTION: tion. NOT ALL FIREPLACES ARE SUITABLE FOR INSTALLATION OF A COAL HEATER. REPAIR PARTS AUTOMATIC COAL BURNING CIRCULATOR HEATER MODEL NUMBER 2827 (SEE PAGE 16) REPAIR PARTS LIST KEY NO. PART NO. DESCRIPTION 89062 Door Knob 83005 Machine Screw (10-24 x 1/2) - Page 7 INSTRUCTIONS FOR TWO-STEP LATCH OPERATION 1. Follow these instructions to operate you unit safely when operating the feed door. 2. Turn handle clockwise to the 12 o'clock position, pull the door open until you engage the second step (Fig. 12). 3.
-
Page 8: Service Hints
Most masonry chimneys have a cleanout. If yours does, make sure it is gasketed or otherwise sealed. A loose fitting door will contribute greatly to the draft problems. If you have any question regarding venting your appliance, feel free to contact the factory at the address and phone number on this Owner's Manual. -
Page 9: Shaker
This draft wheel may be adjusted to give the best performance depending on the particular needs of the user. TROUBLE SHOOTING TIPS FOR MODEL 2827 LIST OF PROBLEMS POSSIBLE CAUSE 1. -
Page 10: Draft Control Damper 1
3. Shake Grates vigorously back and OPERATING INSTRUC- forth to dump ashes into ash pan. Do TIONS this at least once every 12 hours of operation. FUEL 4. Empty ash pan regularly. Do not Egg size Bituminous coal for residential allow ashes to build up to grate, as grate furnaces, or any of the specially pack- will warp and burn out, and you might...
