EPA METHOD 28A

CAUTION!

Read All Instructions Carefully

Before Starting The Installation

or Operating This Heater.

Improper Installation Could Void

Your Warranty!

THIS MANUAL WILL HELP YOU TO OBTAIN EFFICIENT, DEPENDABLE SERVICE FROM THE HEATER, AND ENABLE

YOU TO ORDER REPAIR PARTS CORRECTLY. KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

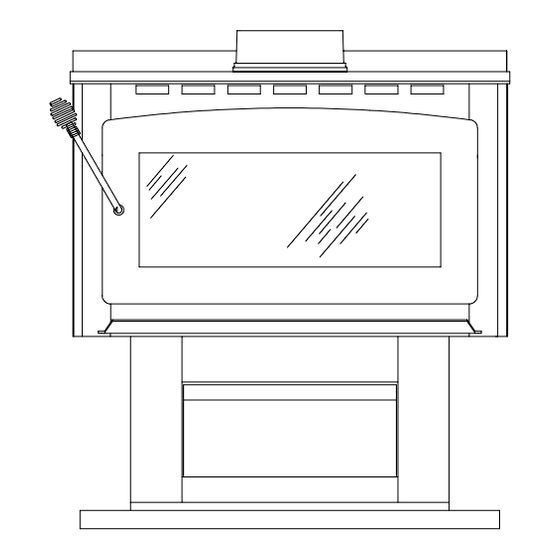

OWNER'S MANUAL

AL PLA

AL PLA TE HEA

AL PLA

MODEL

SAFETY NOTICE:

If this heater is not properly installed, a house fire may

result. For your safety, follow the installation instruc-

tions. Contract local building or fire officials about

restrictions and installation requirements in your area.

SAVE THIS MANUAL FOR FUTURE REFERENCE

UNITED STATES STOVE COMPANY

227 INDUSTRIAL PARK ROAD

SOUTH PITTSBURG, TN 37380

TE HEA

TE HEA TER

TE HEA

2007

DO NOT USE THIS HEATER

IN A MOBILE HOME OR TRAILER

Distributed By:

P.O. BOX 151

TER

TESTED TO

UL 1482

CAN/ULC - S627

2720 B

Table of Contents

Summary of Contents for USSC 2007

Page 1 IN A MOBILE HOME OR TRAILER Distributed By: Distributed By: Distributed By: Distributed By: Distributed By: UNITED STATES STOVE COMPANY UNITED STATES STOVE COMPANY UNITED STATES STOVE COMPANY UNITED STATES STOVE COMPANY UNITED STATES STOVE COMPANY 227 INDUSTRIAL PARK ROAD...
Page 2 You've purchased a heater from North America's oldest manufacturer of wood burning products. By heating with wood you're helping to CONSERVE ENERGY! Wood is our only Renewable Energy Resource. Please do your part to preserve our wood supply. Plant at least one tree each year.
Page 3 SAFETY RULES SAFETY RULES SAFETY RULES SAFETY RULES SAFETY RULES SAFETY NOTICE: SAFETY NOTICE: SAFETY NOTICE: If this heater is not properly installed a house fire may result. For your safety, follow the SAFETY NOTICE: SAFETY NOTICE: installation directions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
Page 4 LOCA LOCA LOCATING LOCA LOCA AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND: AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND: AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND: AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND: AS A LOCATION IS SELECTED, KEEP THE FOLLOWING IN MIND: 1.
Page 5 MOUNTING CAST-IRON FLUE COLLAR This heater comes equipped with a cast-iron flue collar with holes to mount the solid damper as Holes in Flue collar where bolts attach to heater top. Bottom view of flue collar Bottom view of flue collar Bottom view of flue collar Bottom view of flue collar Bottom view of flue collar...
Page 6 CHIMNEY CONNECTION CHIMNEY CONNECTION CHIMNEY CONNECTION CHIMNEY CONNECTION CHIMNEY CONNECTION Two basic types of chimneys are approved for use with solid fuel. Factory-built and ma- sonry. Factory-built chimney must comply with UL/ULC standard in the US and Canada. Do not expect your stove or furnace to create draft.
Page 7 VENTING INT VENTING INTO A FIREPLA VENTING INT VENTING INT VENTING INT Many people may wish to convert an existing fireplace to heater use. Usually, safe connection of stovepipe to a masonry chimney requires more effort than connection to a prefabricated chim- ney.
Page 8 When considering a masonry chimney, round tiles are preferable to square or rectangular, as round tiles have much better airflow characteristics and are far easier to clean. Unfortunately, most North American chimneys use square or rectangular tile liners that are really designed for open fireplaces, not stoves or furnaces.
Page 9 "FIREPLA "FIREPLA "FIREPLACE" INST "FIREPLA "FIREPLA FIREPLA FIREPLA CE INST CE INST ALLA ALLA FIREPLA FIREPLA FIREPLACE INST CE INSTALLA CE INST ALLA ALLATION Connection of the stovepipe directly into the existing masonry chimney over the fireplace open- ing is a more desirable method. This installation performs better, yielding more heat and better draft;...
Page 10 R R R R R ULES FOR CONNECT ULES FOR CONNECT ULES FOR CONNECTOR PIPE INST ULES FOR CONNECT ULES FOR CONNECT Crimped end of the pipe must be installed toward the heater. The pipe should slide inside the flue collar. The pipe should be firmly attached to the flue collar with 3 screws and sealed with furnace cement.
Page 11 OPERA OPERA TING INSTR TING INSTR UCTIONS UCTIONS OPERA OPERA OPERATING INSTR TING INSTR TING INSTRUCTIONS UCTIONS UCTIONS Wood Fuel Wood Fuel Wood Fuel Wood Fuel Wood Fuel Use Hardwood that has been split and air-dried to obtain maximum burning efficiency. Lighting Instructions Lighting Instructions Lighting Instructions...
Page 12 AIR P AIR P REP AIR P AIR P AIR P AR TS FOR 2007 TS FOR 2007 AR TS FOR 2007 TS FOR 2007 TS FOR 2007...
Page 13 P P P P P AR TS LIST FOR MODEL 2007 TS LIST FOR MODEL 2007 AR TS LIST FOR MODEL 2007 TS LIST FOR MODEL 2007 TS LIST FOR MODEL 2007 KEY NO. KEY NO. KEY NO. KEY NO.
Page 14 Coals have been known to stay hot for several days when embedded in ashes. NEVER OPERA TE THIS HEA TER WITH THE BRICK CRADLE OR THE ASH P AN REMOVED OR DAMAGED. GLASS REPLACEMENT INSTRUCTIONS FOR MODEL 2007 GLASS REPLACEMENT INSTRUCTIONS FOR MODEL 2007...
Page 15 NOTES NOTES NOTES NOTES NOTES...
Page 16 2. The PART DESCRIPTION 2. The PART DESCRIPTION 2. The PART DESCRIPTION 2. The PART DESCRIPTION 3. The MODEL NUMBER: 2007 3. The MODEL NUMBER: 2007 3. The MODEL NUMBER: 2007 3. The MODEL NUMBER: 2007 3. The MODEL NUMBER: 2007 4.
