XG-MB50X
XR-11XC
XR-10X/S
XR-20X/S

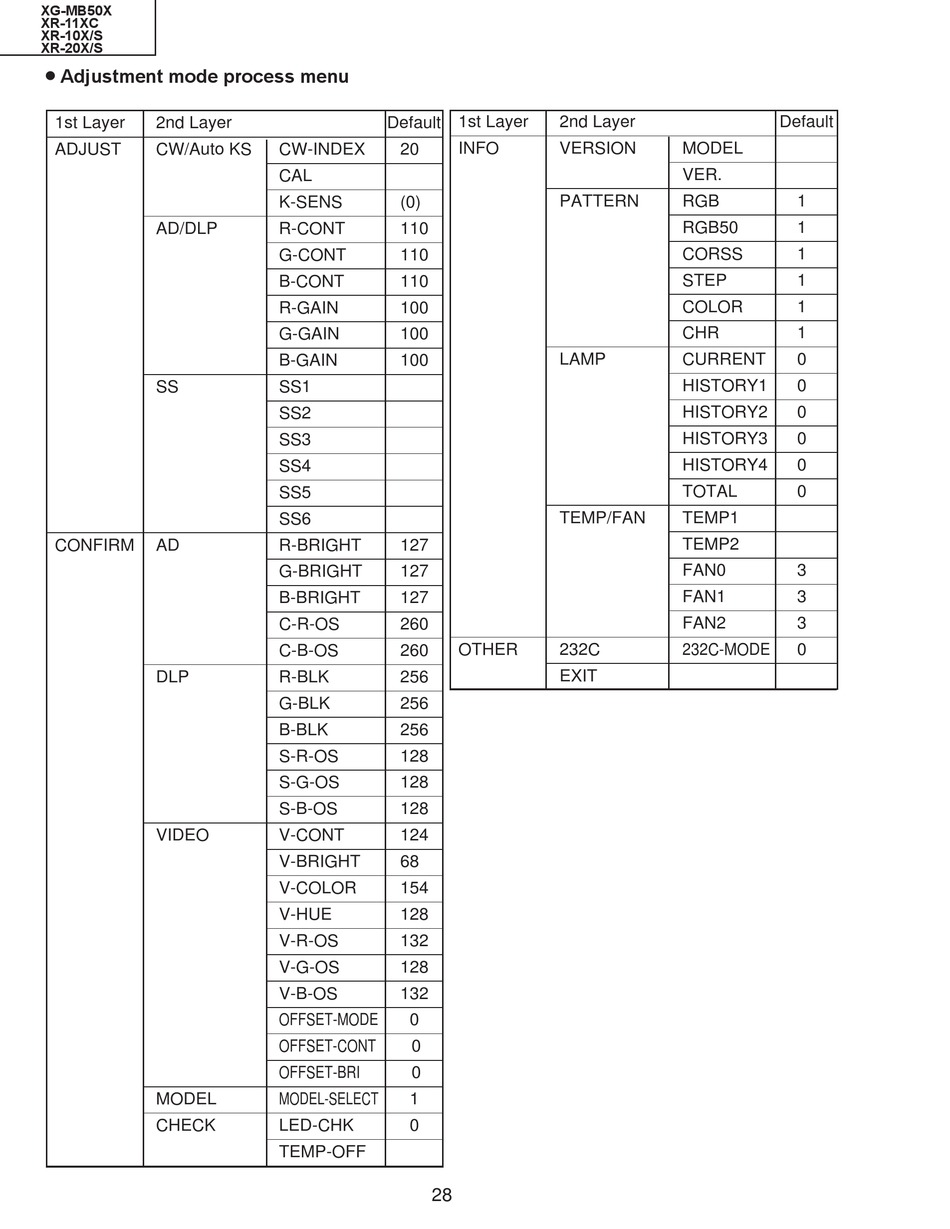

» Adjustment mode process menu
1st Layer 2nd Layer
ADJUST CW/Auto KS
AD/DLP
SS
CONFIRM AD
DLP
VIDEO
MODEL
CHECK
Default
CW-INDEX 20
CAL
K-SENS (0)
R-CONT 110
G-CONT 110
B-CONT 110
R-GAIN 100
G-GAIN 100
B-GAIN 100
SS1 −
SS2 −
SS3 −
SS4 −
SS5 −
SS6 −
R-BRIGHT 127
G-BRIGHT 127
B-BRIGHT 127
C-R-OS 260
C-B-OS 260
R-BLK 256
G-BLK 256
B-BLK 256
S-R-OS 128
S-G-OS 128
S-B-OS 128
V-CONT 124
V-BRIGHT 68
V-COLOR 154
V-HUE 128
V-R-OS 132
V-G-OS 128
V-B-OS 132
OFFSET-MODE 0
OFFSET-CONT 0
OFFSET-BRI 0
MODEL-SELECT 1
LED-CHK 0
TEMP-OFF −
28
1st Layer 2nd Layer
INFO VERSION
PATTERN
LAMP
TEMP/FAN
OTHER 232C
EXIT
Default
MODEL −
−
VER.
RGB 1
RGB50 1
CORSS 1
STEP 1
COLOR 1
CHR 1
CURRENT 0
HISTORY1 0
HISTORY2 0
HISTORY3 0
HISTORY4 0
TOTAL 0
TEMP1 −
TEMP2 −
FAN0 3
FAN1 3
FAN2 3
232C-MODE 0
