UDWC23 Accessory Camera User's Manual

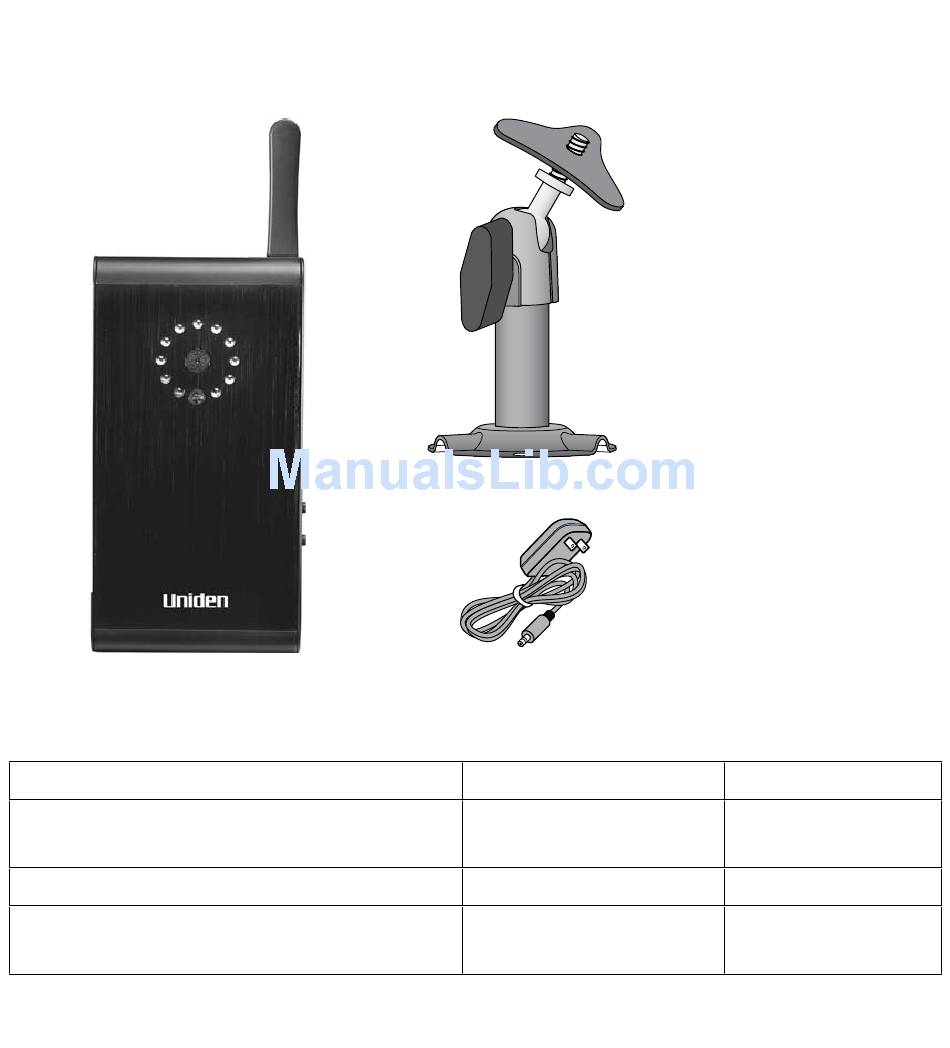

What's in the Box

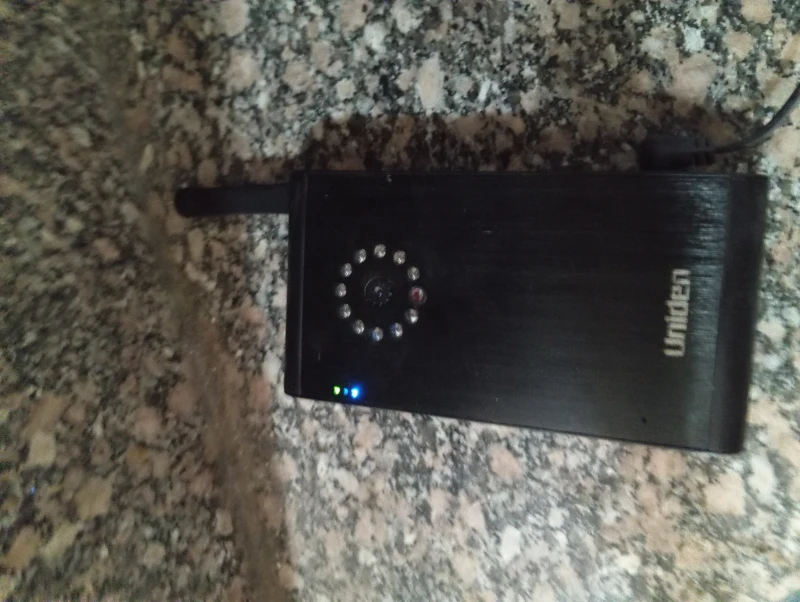

Portable video camera
Need Help? Get answers 24/7 at our website: www.uniden.com.
If You...
have a question or problem
need a replacement part or accessory
need special help due to a disability
* During regular business hours, Central Standard Time. Visit our website for detailed business
hours.
Camera stand
AC adapter
Contact Uniden's...
Customer Care Line*
Parts Department*
Accessibility Help
Line
If any items are
missing or damaged,
contact our Customer
Care Line immediately.
Never use damaged
products!
Phone Number
817-858-2929 or
800-297-1023
800-554-3988
800-874-9314
(voice or TTY)
Advertisement
Table of Contents
Related Manuals for Uniden UDWC23
Summary of Contents for Uniden UDWC23
- Page 1 What’s in the Box Portable video camera Need Help? Get answers 24/7 at our website: www.uniden.com. If You... have a question or problem need a replacement part or accessory need special help due to a disability * During regular business hours, Central Standard Time. Visit our website for detailed business hours.
-
Page 2: Important Safety Instructions
Important Safety Instructions! This manual contains important information about this product’s operation. If you are installing this product for others, you must leave this manual or a copy with the end user. When using your equipment, always follow basic safety precautions to reduce the risk of fire, electric shock and injury to persons, including the following: This equipment is NOT waterproof. -
Page 3: Table Of Contents
Clean only with a dry cloth. ► Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes no liability for damages to property or injury to persons caused by improper handling or failure to comply with these safety instructions. Contents Important Safety Instructions! ... -
Page 4: Getting Started
Connecting the Power Connect one end of the AC adapter to the camera’s power connector and the other end to a standard 120 volt AC outlet. Press the POWER button on the camera; the Power status light should turn on. If it doesn’t, try reconnecting the AC adapter, and... -
Page 5: Learning The Buttons And Lights
Button What it does Turn the camera on. Press and hold to turn it off. POWER Enter pairing mode. LINk Light State Power Status light Flashing The camera is in pairing mode. Link Status Orange light Green Battery Status light Using the Camera Mount The camera has a built-in stand so you can place it on any flat surface. - Page 6 Mounting Mounting Camera Camera screw screw brace brace Mounting Mounting post post Post Post lock lock Screw Screw holes holes Hold the base of the mount where you want to attach it, and mark the location of the screw holes. Use the included screws and anchors to attach the base to the wall or ceiling.
-
Page 7: Pairing The Camera
Before you can use the camera, you’ll need to “introduce” or pair it to the receiver so they can communicate. You might also perform the pairing procedure if you are having trouble with the camera. Make sure the camera is powered on. On the receiver, select the channel you want to pair this camera to, and put the receiver into pairing mode. -
Page 8: Additional Information
Product Specifications Radio Frequency Transceiver RF Frequency Modulation Spread spectrum Anti Interference Data rate Channel bandwidth Transmitting range Image Specification Output Image resolution Image processing Exposure White balance Camera Specifications Weight Dimension Operating temperature Battery charging temp. Input voltage Operating voltage Power consumption 2402 Mhz ~ 2483.5 Mhz GFSK... -
Page 9: Polymer-Lithium Battery Warning
Earth11.com to find an electronics recycling facility in your area. If you are unable to locate proper recycling facilities in your area, please return this ► product to Uniden for recycling. 11 IR LEDs, 1 Low light sensor 1-8 lux OV7725 1/4’... -
Page 10: Fcc Compliance Information
Part 15 Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 11: Ic Compliance Information
