LCD Display
Models: DV75UM
1

Advertisement

Table of Contents
loading

Related Manuals for Mitsubishi Diamondview DV75UM

Summary of Contents for Mitsubishi Diamondview DV75UM

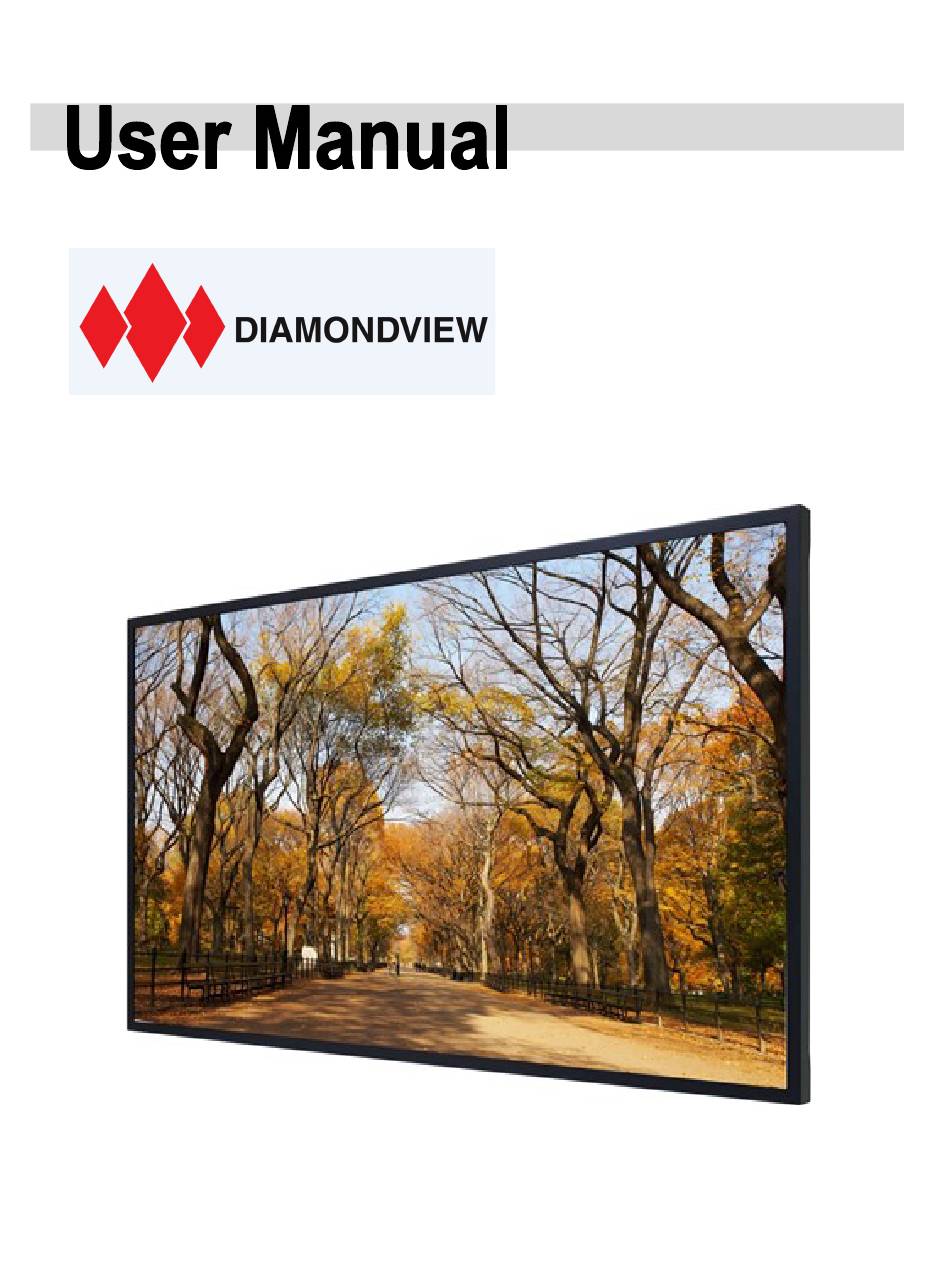

  • Page 1 LCD Display Models: DV75UM...

  • Page 2: Table Of Contents

    Contents Document History ..........................5 Warnings ..............................6 Protection against Image Retention ..................... 6 Exemptions ..........................6 Important Safety Instructions, Maintenance & Recommended Use..........7 Safety Precautions ........................7 Installation Cautions: ........................7 Use ............................... 8 Cleaning ............................8 Product Features ...........................9 Package Contents ..........................9 Unpacking ............................
  • Page 3 Specifications ............................38 Troubleshooting ...........................40 External Control ..........................41 Compliance ............................54 Dimensions ............................55 Appendix I: Moving and Carrying Information ................56 Appendix II: Installing a Wall Mount ....................57 Appendix III: Wall Mount Safety Notes ...................58 ................................59...
  • Page 4 NOTES...

  • Page 5: Document History

    Document History Title: Mitsubishi DV75UM Display User Manual Issue Date: 16 Aug 2019 Revision: 0.1 Version Update Remark Ver.01 16 August 2019 First issue. Ver.02 12 November 2019 MEUS Ver.03 25 March 2020 MEUS...

  • Page 6: Warnings

    Warnings Protection against Image Retention  Operation usage to protect against image retention.  Operating time: 18 of 24 hours a day. Moving images or video type signal are OK to use 24 hours a day.  Liquid Crystal refresh time is required. Cycling the display type between 5 minutes’ for static display and 10 seconds’...

  • Page 7: Important Safety Instructions, Maintenance & Recommended Use

    Important Safety Instructions, Maintenance & Recommended Use. Before using this display, please read this user manual thoroughly to help protect against property damage and to ensure your personal safety and the safety of others.  For your safety, be sure to observe the warnings located in this manual. ...

  • Page 8: Use

    If you encounter a problem during installation, please contact your dealer for assistance. Don’t repair or open the display, these actions will void the unit’s warranty.  Using extension cords (not recommended).  Don’t use any kind of cleaning liquid on the display. For cleaning, only use a damp Sham cloth. ...

  • Page 9: Product Features

    Product Features This display supports 3840x2160 or 4K UHD resolution and can display true 1.07 billion colors. It supports a full range of interface types, including: DisplayPort 1.2 x2 / HDMI 1.4 x2 / HDMI 2.0 x2 / VGA / PC audio in / IR extender / OPS.

  • Page 10: Packing List

    Packing list...

  • Page 11: Accessories

    Accessories Power Cord (US black) x1 HDMI Cable x1 OSD Remote Control x1 IR Extender x1 Include 2 pieces batteries (AAA) inside...

  • Page 12: Product Overview

    Product Overview Main Power Switch and AC Inlet Plug the power cord into the AC socket on the side of the display. Locate the Main Power switch directly below the AC socket and press “-” to turn power on, and “O” to turn power off.

  • Page 13: Input And Output Connectors

    Input and Output Connectors Name Remarks HDMI 1 4K/30Hz HDMI 2 HDMI 3 4K/60Hz HDMI 4 4K/60Hz PC Audio In Audio Out SPDIF Out RS232C In Communication port Ethernet Communication port...

  • Page 14: Operating The Display

    Operating the Display Setting up the Display Step 1: Plug in the power cable and turn on the AC power switch (without turning on the signal source device(s)). “I” is power on “O” is power off Step 2: Plug in the signal source cables. Step 3: Press the power key on the display’s keypad or the power key on the remote control to turn on the display.

  • Page 15: Adjusting Volume And Input Source

    Turning Display On and Off With the power on, press the power button on the remote control or keypad to put the display into Standby mode. To turn off power completely, turn the AC switch to “O” or disconnect the AC power cord from the power outlet.

  • Page 16: Reading The Status Led

    Reading the Status LED The LED indicator light is located on the rear of the display near the keypad. The following table explains what the different colors and blink patterns mean. LED Indicator LED Indicator Condition Green Normal operation Blinking Orange No signal Orange Power Saving...

  • Page 17: Using The Remote Control

    Using the Remote Control Customer Data Function Code Code 40AF 04FB INFO 40AF 1CE3 POWER 40AF 07F8 40AF 08F7 DISPLAYPORT1 40AF 09F6 HDMI1 40AF 0AF5 ──── 40AF 0BF4 DISPLAYPORT2 40AF 0CF3 HDMI2 40AF 1AE5 PIP POSITION 40AF 15EA 40AF 10EF HDMI3 40AF 11EE...

  • Page 18: Locking The Osd (On-Screen Display)

    Locking the OSD (On-screen Display) To lock the remote control and keypad (to prevent tampering display settings): Press Enter, Enter, Exit, Exit, Enter and Exit on the remote control or the keypad. To unlock the remote control and keypad: Press Enter, Enter, Exit, Exit, Enter and Exit on the controller by sequence again and all keys will be unlocked.

  • Page 19: Changing The Remote Control Battery

    Changing the Remote Control Battery Remove the battery cover Slide back and remove the battery cover in the direction of the arrow. Insert the batteries Align and insert two AAA batteries according to their plus and minus ports (as indicated in the remote control). Close the battery cover Replace the battery cover in the direction of the arrow and snap it back into place.

  • Page 20: Using The Menus

    Using the Menus Navigating through the Menu System 1. With the power on, press MENU. The Image Settings menu will display. 2. Within the menu, use ,,, , and ENTER to navigate through the menus and adjust options. 3. Press MENU to return to the previous menu. To exit the menu system, press EXIT. Input Menu Save and recall up to four configurations of single or multi-source layouts.
  • Page 21 Source 2 Select the second source Options: DisplayPort1, DisplayPort2, HDMI1, HDMI2, HDMI3, HDMI4, VGA, OPS Note: This function is only available when Multi-Source Views is set to PiP, Dual View or Quad View. If HDMI4 was selected as another source, OPS cannot be selected.

  • Page 22: Picture Menu

    Picture Menu This menu is used for making common video adjustments. Aspect Ratio Adjust the aspect ratio of the screen. The first selection is for the main source, and the second selection is for sources 2-4. Options: Main: Full Screen, Letterbox, 4:3, Native PiP/Dual View: Full Screen ;...
  • Page 23 Increases or decreases the green hue. Press  or, select the desired level, and then press ENTER. Range: 0~100; Default: 50 Saturation Adjusts the brilliance and brightness (only Video Mode). Press  or , select the desired level, and then press ENTER. Range: 0~100;...

  • Page 24: Picture Menu - Rgb Adjust Submenu (Color Temp = User)

    Picture Menu – RGB Adjust Submenu (Color Temp = User) Gamma Select gamma Options: Off, 2.2 Default: 2.2 Temperature Select color temperature Options: User, 5000K, 6500K, 7500K, 9300K Default: 9300K Red Gain Adjust the amount of red in bright content Range: 0~100 Default: 50 Green Gain...

  • Page 25: Audio Menu

    Audio Menu This menu is used for adjusting volume settings. Volume Adjust the sound. Press  or , select the desired level, and then press ENTER. Range: 0~100 Default: 50 Treble Adjust the sound in high tones (treble). Press  or , select the desired level, and then press ENTER.

  • Page 26: Osd Settings Menu

    OSD Settings Menu This menu is used to make initial set-up adjustments to the OSD (On-Screen Display) menu and other on-screen messages. OSD H Position Adjust the horizontal position of the OSD menu. Press  or  to select the desired level, and then press ENTER.

  • Page 27: Setup Menu

    Setup Menu Auto Adjust Configure settings of Current Time and Timer Mode Force the display to reacquire and lock to the input signal (VGA source only). This is useful when the signal quality is marginal. Options: No, Yes Default: No H Position Adjust the horizontal position of the image (VGA source only).

  • Page 28: Real Time Clock Submenu

    Real Time Clock Submenu This menu is used to set the internal clock of the display, and to power on and power off the display at preset times if desired Current Time Set the year, month, day, and time of day Options: User Mode, Workday Mode, Everyday Mode Real Time Clock –...

  • Page 29: Real Time Clock - Workday Mode

    Real Time Clock – Workday Mode Workday Mode Select the power on/off time for Monday-Friday, Saturday and Sunday Options: Disable, Enable Use the arrow keys to specify the on and off times Real Time Clock – Everyday Mode Everyday Mode Select the power on/off time for all days of the week Options: Disable, Enable Use the arrow keys to specify the on and off times...
  • Page 30 Adv. Setup Menu Smart light control Enable dynamic contrast (DCR) or ambient light sensor Options: Off, DCR, Light Sensor; Default: Off IRFM Creates slight frame motion to help avoid image retention. Options: On Default: Off Wake Up from Sleep Select a source to wake up the display from sleep mode Options: VGA Only, Digital, RS232, Ethernet, Never Sleep Default: VGA Only DP1 Ver.

  • Page 31: Communication Menu

    Communication Menu This menu configures the display’s RS-232 and Ethernet communication ports. Baud Rate Options: 115200, 38400, 19200, 9600 Default: 115200 Enable Network Enable the display’s built-in Ethernet port Options: Off, On Default: Off IP Address Settings Enable Dynamic IP mode or set the static IP address of the display’s Ethernet port See next page for more settings Power Status Alert Enable an automatic alert when the display is powered down...

  • Page 32: Assigning An Ip Address To The Display

    Assigning an IP Address to the Display To assign an IP address to your display, access the IP Address Settings Menu in the Communication Menu. Consult your system IT administrator if you do not know how to configure the parameters shown in the menu. The default settings are shown below.

  • Page 33: Information Menu

    Information Menu This read-only menu provides information on the active sources and the latest firmware version. Wake Up from Sleep By default, the display will enter power saving (Sleep Mode) if no signal is received for 5 minutes. Normally, the RS-232, DisplayPort and HDMI inputs are inactive in Sleep Mode, to save power. To change the behavior of Sleep Mode, change the “Wake up from Sleep”...

  • Page 34: Default Settings

    Default Settings Menu Parameter Default Settings Power switch Input Main Source HDMI1 Auto Scan Multi-Source Views Picture Aspect Ratio Full Screen Scheme User Brightness Contrast Sharpness Saturation Backlight Gamma Color Temp. 9300K Red Gain Green Gain Blue Gain Red Offset Green Offset Blue Offset RGB Range...

  • Page 35: Supported Timings

    Supported Timings Compatible Video Sources Frame Line Pixel Signal Resolution Rate Rate Rate References Type (Hz) (kHz) (MHz) 640x480 59.940 31.469 25.175 x VESA DMT, CEA-861-F Format 1 640x480 72.809 37.861 31.500 x VESA DMT 640x480 75.000 37.500 31.500 x VESA DMT 640x480 85.008 43.269 36.000 x VESA DMT...
  • Page 36 Compatible Video Sources Frame Line Pixel Signal Resolution Rate Rate Rate References Type (Hz) (kHz) (MHz) 1920x1080 59.950 66.587 138.500 x VESA CVT-R 1920x1200 49.932 61.816 158.250 x VESA CVT 1920x1200 59.950 74.038 154.000 x VESA CVT-R 1680x1050 49.974 54.121 119.500 x VESA CVT 1680x1050 59.954 65.290 146.250...
  • Page 37 Compatible Video Sources Frame Line Pixel Signal Resolution Rate Rate Rate References Type (Hz) (kHz) (MHz) 3840x2160 67.500 297.000 CEA-861-F Format 97, 4:2:0 sub-sampling 3840x2160 135.000 594.000 CEA-861-F Format 97 4096x2160 54.000 297.000 CEA-861-F Format 98 4096x2160 56.250 297.000 CEA-861-F Format 99 4096x2160 67.500 297.000 CEA-861-F Format 100...

  • Page 38: Specifications

    Specifications Item Specification Unit Resolution 3840x2160 Backlight Illumination Direct Response time (typ.) Viewing Angle (typ.) 178 / 178 LCD Panel Pixel Pitch (Sub Pixel) 0.143(H) x 0.430(V) Color Saturation (typ.) NTSC Aspect Ratio 16 : 9 Brightness (typ.) cd/m Optical* Contrast Ratio (typ.) 5000:1 HDMI 1.4 x2 (4K/ 30Hz)
  • Page 39 Item Specification Unit Dimension (W x H x D) est. 1675.8 x 953.8 x 112.7 Active Area 1650.24(H) x 928.26(V) (75” diagonal) Size and Weight Bezel Width (L/R/T/B) 10.9 / 10.9 / 10.9 / 10.9 Objectives Net weight Gross weight Storage temperature Min -20 ~ Max60 °C...

  • Page 40: Troubleshooting

    Troubleshooting Before calling service personnel, please check the following chart for a possible cause to the trouble you are experiencing.  Perform the adjustments according to Operating The Display on page 16  If the problem you are experiencing isn’t described below or you can’t correct the problem, stop using the display and call service personnel or your dealer.

  • Page 41: External Control

    External Control RS232 control is not necessary for operation but is a convenient way to control displays from a computer at a distance. Most functions that can be done with the remote, can also be done with RS232 commands. Plus, you can send inquiries to the displays and find out the current settings and values.
  • Page 42 (1E hex). Reset the LCD panel display 07 01 02 41 4C 4C 00 08 07 01 00 41 4C 4C 00 08 settings. 07 01 00 53 45 52 S(0)…S(12) 08 Request LCD panel serial number. 07 01 01 53 45 52 08 S(0) …S(12) = the serial number in ASCII Request LCD panel firmware 07 01 00 47 56 45 S(0)…S(5) 08...
  • Page 43 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) User Sport Game Scheme 53 43 4D Cinema Vivid User 6500K 43 4F 54 Color 9300K Temperature 5000K 7500K Off (Gamma) 47 41 43 Gamma 2.2 (Gamma) 00~64 00~64 Red Gain (0~100)
  • Page 44 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) 00~17 00~17 Hour 52 54 48 52 54 4E 00~3B 00~3B Minute Everyday Mode Timer Mode Workday Mode 54 4D 53 User Mode In User Mode: Set bit0 to 1: Sunday Enable Set bit1 to 1: Monday...
  • Page 45 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) Set any bit1~5 to 1: Mon-Fri. Disable Set bit6 to 1: Saturday Disable 00~17 00~17 Sunday On Hour 53 4E 48 00~3B 00~3B Sunday On Minute 53 4E 4D Sunday 00~17...
  • Page 46 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) 00~3B 00~3B Friday Off Minute 49 46 4D 54 4E 48 00~17 00~17 Saturday On Hour 00~3B 00~3B Saturday On Minute 54 4E 4D Saturday 00~17 00~17 Saturday Off Hour 54 46 48...
  • Page 47 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) OSD Timeout (5, 10, 20, 4F 53 4F OSD Timeout OSO 05~3C 05~3C 30, 60 sec) 1080P HDMI1 45 48 31 4K30Hz 1080P HDMI2 45 48 32 4K30Hz 1080P HDMI3...
  • Page 48 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) Quad View Select the input source (refer to 50 49 4E (refer to MIN) of sub window 1 (refer to MIN) MIN) Select the input source PIP source (refer to 50 49 4F...
  • Page 49 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) Main Multi IRFM 49 52 46 Smart Light 53 4C 43 Control Power LED 4C 45 44 DP 1.1 DisplayPort 44 50 4D Version DP 1.2 Disable OPS power down check OPS Power...
  • Page 50 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) HDMI2 Key DISPLAYPORT Key SOURCE Key P-SOURCE Key PIP Key P-POSITION Key SWAP Key SCALING Key FREEZE Key MUTE Key BRIGHT Key CONTRAST Key AUTO Key VOLUME+ Key VOLUME- Key HDMI3 Key...
  • Page 51 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) Network 4E 57 45 NWE W/R Enable Disable Dynamic IP 44 49 50 Enable Load default settings Default 4C 44 53 (About 15 seconds.) Off (Power Status Alert) 50 53 41 On (Power Status Alert) Off (Source Status Alert)
  • Page 52 Value Reply Main Item Control Item CMD Type Content CMD (HEX) Remark (HEX) (HEX) 00~FF 00~FF DNS Address 4 46 44 34 53 4E 53 Save Static IP Settings Examples Power Control and Input Source  Turn monitor power off [CMD: POW] [Transmit] : PC →...
  • Page 53 Other Control  Adjust up to monitor [CMD: RCU] [Transmit] : PC → 07 01 02 52 43 55 02 08 → Monitor [Return] : Monitor → 07 01 00 52 43 55 02 08 → PC  Reset all to monitor [CMD: ALL] [Transmit] : PC →...

  • Page 54: Compliance

    Compliance FCC:  FCC CFR Title 47 Part 15 Subpart B: Class A, CISPR 22  ANSI C63.4 ICES-003 Issue 6  cTUVus:  UL 60950-1  CAN/CSA-C22.2 NO.60950-1-07  IEC 60950-1...

  • Page 55: Dimensions

    Dimensions...

  • Page 56: Appendix I: Moving And Carrying Information

    Appendix I: Moving and Carrying Information Moving the Display: Moving the display requires at least two people. Attempting to move the display with one person may result in dropping the display and/or serious injury. When moving a display in its shipping carton, lift the carton using the white handles.

  • Page 57: Appendix Ii: Installing A Wall Mount

    Appendix II: Installing a Wall Mount  Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel.  Moving the display requires at least two people.  Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount.

  • Page 58: Appendix Iii: Wall Mount Safety Notes

    Appendix III: Wall Mount Safety Notes...
  • Page 59 User Manual DV75UM v.03...
