Invacare® Storm®⁴ Max
4. Lift the power module with the bracket, first to the right
and then out to the left.
Power modules are either mounted horizontally
or vertically on the bracket depending on the
type.
5. Place the power module with the bracket on the upper
surface of the battery box, or the actuator module, if
cable is sufficiently long.
6.

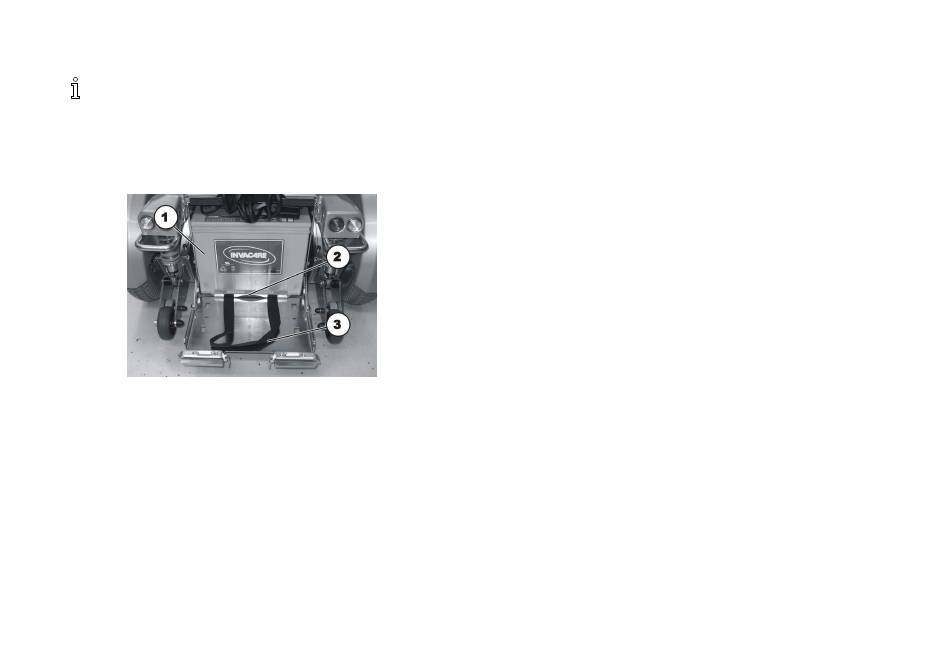

Pull the batteries (1) and the battery mounting (2) by
the strap (3) forwards to the end stop .
60 1547067-H
