MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
Page 5

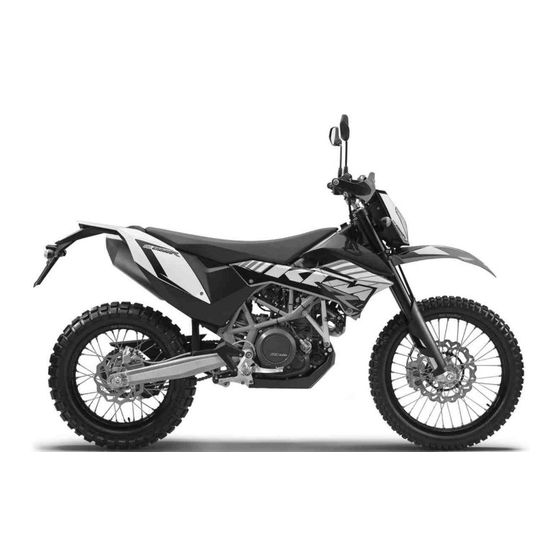

SETUP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during assembly, leave the protective film on the vehicle until you have finished. – Check the vehicle for transport damage. –...
Page 6
SETUP – Mount and tighten the rear mirror adapter and rear mirror on both sides. – Exactly position all controls on the handlebar. Tighten all screws. – Fit and tighten the M8 screw of the right hand guard. 100309-01 – Mount the footrests with the springs and bolts.
Page 7
– Fit the heel protector. ( p. 10) – Refuel. ( p. 10) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( p. 11)
– Do not discard batteries with the household waste. Dispose of faulty batteries in an environmentally compatible manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
Page 9
WORK Preparatory work – Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 6) – Remove the battery. ( p. 7) Main work – Connect the battery charger to the battery. Switch on the battery charger. Battery charger (58429074000) You can also use the battery charger to test rest potential and start potential of the battery, and to test the alternator.
WORK Installing the battery Main work – Slide the battery into the battery holder. Info The battery terminals must be at the rear. – Attach the positive cable and mount positive terminal cover – Position retaining bracket – Mount and tighten screws 601812-11 Guideline Remaining screws, chassis...
Page 11
WORK Removing rear fairing Preparatory work – Remove the seat. ( p. 6) Main work – Remove screws 100311-10 – Remove screws – Open the filler cap. ( p. 8) – Take off the rear fairing. – Close the filler cap. ( p.
WORK 3.11 Mounting the rubber strap for the side stand – Drill a hole of the specified size at marking Guideline Hole diameter for rubber strap 8.0 mm (0.315 in) Info 0 0 1 A marking is found on the inside of the left heel protector. –...
WORK – Switch off the engine. – Open the filler cap. ( p. 8) – Fill the fuel tank with fuel up to measurement Guideline Measurement 20 mm (0.79 in) Total fuel tank 12 l (3.2 US gal) Super unleaded (ROZ 95/RON 95/PON capacity, approx.
Page 16
SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) According to – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
