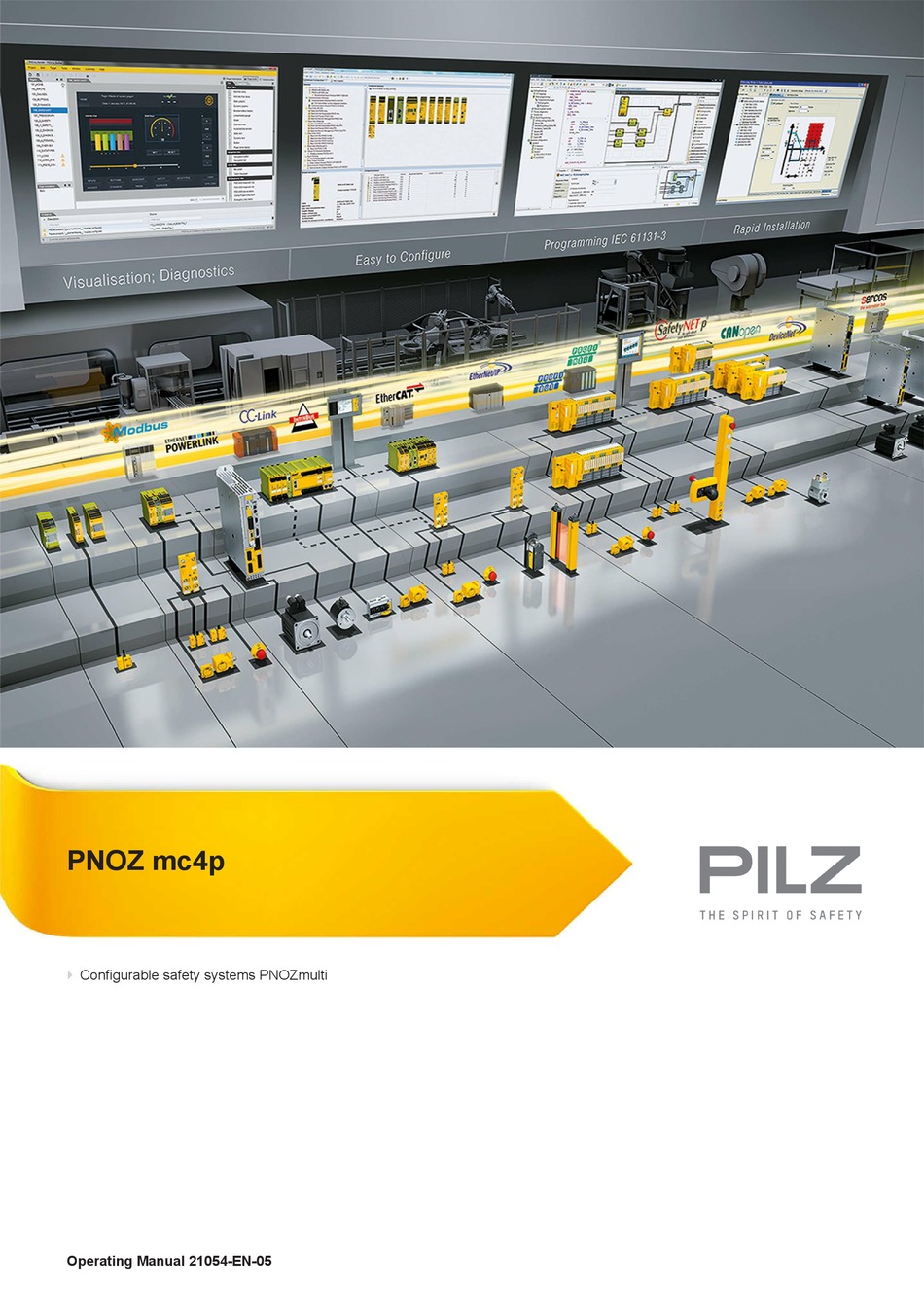

- Page 1 PNOZ mc4p Configurable safety systems PNOZmulti Operating Manual 21054-EN-05...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
-
Page 3: Table Of Contents
General wiring guidelines Connecting the supply voltage DeviceNet interface Setting the transmission rate Setting the station address Download modified project to the PNOZmulti safety system Connection example Section 7 Operation Messages Section 8 Technical Details Operating Manual PNOZ mc4p 21054-EN-05... - Page 4 Contents Section 9 Order reference Product Accessories Operating Manual PNOZ mc4p 21054-EN-05...
-
Page 5: Introduction
Introduction Introduction Validity of documentation This documentation is valid for the product PNOZ mc4p. It is valid until new documentation is published. This operating manual explains the function and operation, describes the installation and provides guidelines on how to connect the product. - Page 6 Introduction INFORMATION This gives advice on applications and provides information on special fea- tures. Operating Manual PNOZ mc4p 21054-EN-05...
-
Page 7: Overview Scope
Scope Expansion module PNOZ mc4p Jumper Unit features Using the product PNOZ mc4p: Expansion module for connection to a base unit from the configurable control system PNOZmulti The product has the following features: Can be configured in the PNOZmulti Configurator Connection for DeviceNet Station addresses from 0 ... -
Page 8: Front View
Overview Front view ON OFF PNOZ mc4p Legend: X1: DeviceNet interface (5-pin screw connector) LED: – Power – – Operating Manual PNOZ mc4p 21054-EN-05... -
Page 9: Safety
(master) reads input information from the slaves and writes output information to the slaves as part of each cycle. As well as the cyclical transfer of usable data, the expan- sion module PNOZ mc4p can also be used for diagnostic and commissioning functions. Data traffic is monitored on the Master/Slave side. -
Page 10: Safety Regulations
Do not open the housing or make any unauthorised modifications. Please make sure you shut down the supply voltage when performing maintenance work (e.g. exchanging contactors). Operating Manual PNOZ mc4p 21054-EN-05... -
Page 11: Function Description
The virtual inputs and outputs that are to be transferred via DeviceNet are selected and configured in the PNOZmulti Configurator. The base unit and the expansion module PNOZ mc4p are connected via a jumper. The expansion module PNOZ mc4p is also supplied with voltage via this jumper. -
Page 12: Block Diagram
Byte 1: Bits 0 … 7 Byte 2: Bits 0 … 7 The number of virtual inputs and outputs can be extended to 128 (see document "Commu- nication Interfaces" in the section entitled "Fieldbus modules") Block diagram Operating Manual PNOZ mc4p 21054-EN-05... -
Page 13: Installation
Damage due to electrostatic discharge! Electrostatic discharge can damage components. Ensure against discharge before touching the product, e.g. by touching an earthed, conductive sur- face or by wearing an earthed armband. Dimensions in mm 22,5 94 (3.70") (0.88") Operating Manual PNOZ mc4p 21054-EN-05... -
Page 14: Connecting The Base Unit And Expansion Modules
Installation Connecting the base unit and expansion modules You can install a maximum of 1 PNOZ mc4p to the left of the base unit. Connect the base unit and the expansion module as described in the operating instructions for the base units. -
Page 15: Commissioning
The connection to DeviceNet is made via a 5-pin screw connector. CL (CAN_L) Cable screening CH (CAN_H) Termination DeviceNet To minimise cable reflection and to guarantee a defined rest signal on the transmission line, DeviceNetmust be terminated at both ends. Operating Manual PNOZ mc4p 21054-EN-05... -
Page 16: Setting The Transmission Rate
500 kBit/s INFORMATION The transmission rate cannot be changed during operation. Setting the station address The station address of the expansion module PNOZ mc4p is set from 0 ... 63 (binary) using DIP switches 1 to 32. Station address DIP switch... -
Page 17: Connection Example
Commissioning Connection example Operating Manual PNOZ mc4p 21054-EN-05... -
Page 18: Operation
If the expansion module PNOZ mc4p does not receive a configuration from the base unit for a period of 30 s, the fieldbus module PNOZ mc4p connects to DeviceNet and "Online" status is displayed on DeviceNet. The "MS" LED flashes red. -
Page 19: Technical Details
93 % r. h. at 40 °C Humidity Condensation during operation Not permitted Short-term EN 61131-2 EN 61131-2 Vibration In accordance with the standard EN 60068-2-6 EN 60068-2-6 Frequency 10,0 - 150,0 Hz 10,0 - 150,0 Hz Acceleration Operating Manual PNOZ mc4p 21054-EN-05... - Page 20 ABS UL 94 V0 Dimensions Height 94,0 mm 94,0 mm Width 22,5 mm 22,5 mm Depth 122,0 mm 122,0 mm 110 g 143 g Weight Where standards are undated, the 2010-05 latest editions shall apply. Operating Manual PNOZ mc4p 21054-EN-05...
- Page 21 Order reference Order reference Product Product type Features Order No. PNOZ mc4p Fieldbus module, DeviceNet 773 711 PNOZ mc4p coated ver- Fieldbus module, DeviceNet, coated version 773 729 sion Accessories Jumper Product type Features Order No. KOP-XE Jumper 774 639...
