Tripp Lite PowerVerter RV1012UL Owner's Manual Addendum

Insulator Drip Shield Installation Instructions
WARNING! The Insulator Drip Shield is required for installation on your Tripp Lite DC-to-AC
Inverter/Charger when it is used in marine applications (e.g. aboard watercraft). Failure to install
it as described below may lead to personal injury and/or damage to the Inverter/Charger and
connected systems.
Installation
1
Locate and remove the four hex screws on the top panel of your
Inverter/Charger as shown.
2
Place the Insulator Drip Shield on the top panel of the Inverter/
Charger. Line up the holes in the shield with the exposed screw
holes on the top panel.
3
Using the hex screws, secure the Insulator Drip Shield to the top
panel of the Inverter/Charger.
1
2
3
200412030 93-2431
Owner's Manual Addendum
PowerVerter ®
RV1012UL & RV2012UL
RV & Marine DC-to-AC
Inverter/Chargers

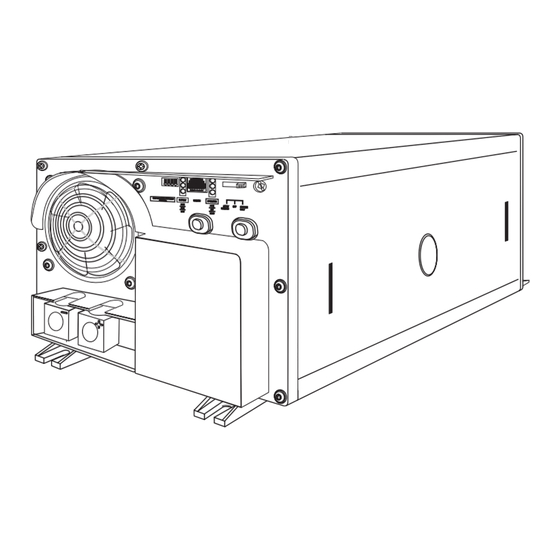

The new RV1012UL and RV2012UL are the most rugged, reliable Inverter/Chargers available—
ideal for both RV and marine applications. RVs and boats often experience severe shocks, while
driving over potholes and rough road surfaces or while navigating in choppy seas. RVs and boats
also experience constant vibration, from surface friction, drive engines and on-board generators.
The RV1012UL and RV2012UL are engineered specifically to meet the challenges of demanding
RV and marine environments—and are UL-tested to perform reliably under the most extreme shock
and vibration conditions.
The new RV1012UL and RV2012UL include all the features and functions of previous
versions of the RV1012UL and RV2012UL listed in the enclosed owner's manual, with the
following exceptions:
• Ten-Point Mounting Flanges—provide up to 10 connecting points for tight adhesion to the
mounting surface
• Splash/Condensation Drip Shield—Added protection for control panel against potentially
disruptive moisture in marine environments (required for marine applications)
• Battery Recharge Rate LED Meter—indicates approximate recharge rate of connected RV or
marine batteries
• UL 458 (Shock/Vibration) Tested*—performs reliably in the most demanding RV and marine
environments under the most extreme shock and vibration conditions (caused by potholes, rough
roads, high seas, surface friction or engine/generator vibration)
* Tested for conformity to UL458 and UL458 Marine Supplement—for both RV and marine applications.
ATTENTION: For Marine Applications, See Inside.
1111 W. 35th Street, Chicago, IL 60609 USA
Marine
Customer Support: (773) 869-1234
www.tripplite.com
Listed
Power Inverter
