Tripp Lite PowerVerter RV Inverter/Charger RV1512UL Specifications

Model #: RV1512UL

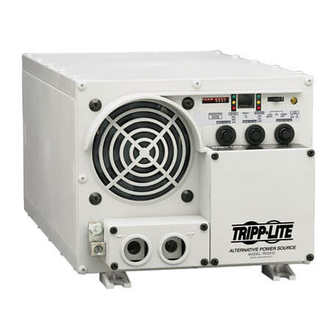

PowerVerter® 1500W RV Inverter/Charger with Hardwire Input/Output
Description
Tripp Lite's RV1512ULHW Inverter/Charger is the quiet alternative to gas generators - with no fumes, fuel or noise to deal with! It provides equipment
with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic
line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter
suitable for rugged RV applications. Supplies up to 1500 watts of continuous 120V AC power from any 12V DC battery or automotive DC source.
OverPower TM inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost TM inverter
output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools
and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is
recharged via 3 stage, selectable 19/75 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a
near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user
supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utilty or generator power during battery charging and
UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with
frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup.
Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status
information (APSRM4 sold separately). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly
adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery
power transfer voltages.
Applications
Versatile inverter/charger system with auto-transfer switching serves as an automotive inverter for RVs, over-the-road trucking, conversion
vans and fleet service vehicles; a standalone alternative power source for off-grid, alternative energy or export applications and as an
uninterruptible power supply (UPS) for items compatible with a 16.6 millisecond transfer time.
Package Includes
RV1512UL Inverter/Charger
Instruction manual with warranty information
Features
RV1512UL serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger
Highlights
12V DC or 120V AC input; 120V AC output (hardwired)
1500 watts continuous, 2250 watts OverPower™ and 3000 watts
DoubleBoost™ inverter output
3 stage, 19/75 amp selectable wet/dry cell battery charger
Built-in Isobar® premium AC surge protection and Auto Transfer Switching
option for battery backup / UPS operation
Tested to power inverter standards UL458 (USA) and CSA (Canada)
High reliability large-transformer design with protected DC and AC wiring
terminals
