Summary of Contents for BENDIX BIW 100
-

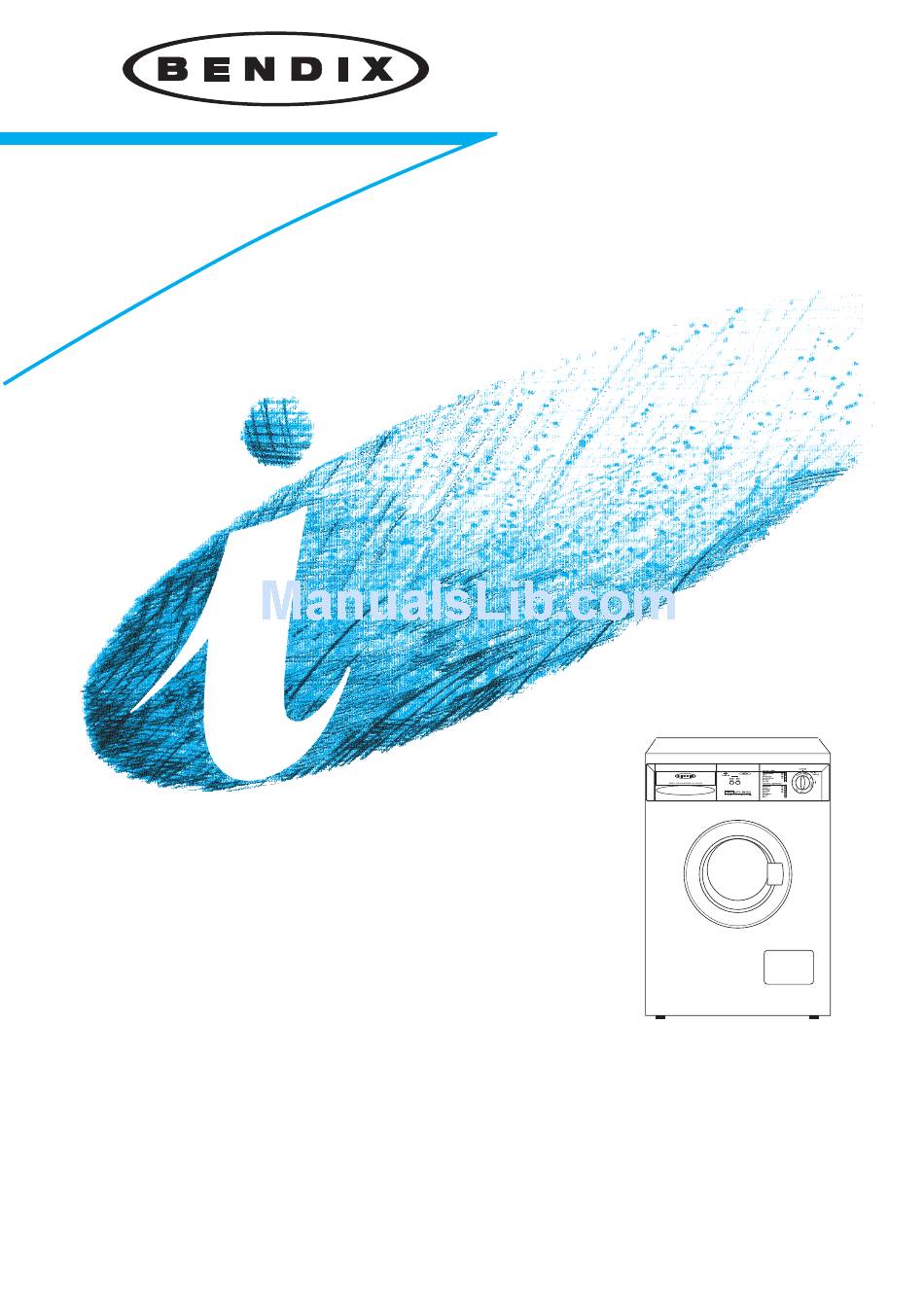

Page 1: Washing Machine
OPERATING & INSTALLATION INSTRUCTIONS WASHING MACHINE BIW 100 35.292.629/0... -
Page 3: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 4: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance The Control Panel Operating sequence Washing 4,5 kg of white cotton at 90 °C Load the laundry Measure out the detergent Measure out the additive Select the required option(s) Select the required programme Start the machine... -
Page 5: Your New Washing Machine
Your New Washing Machine Your new washing machine, meets all modern needs for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60°C before draining, with the 90°C programme. This reduces thermal shock to fabrics, helping to prevent any creasing. -
Page 6: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 “Mains-on” light 3 “Options” buttons 4 Programme guide 5 Program selector dial & ON/OFF switch 6 Door opening handle 7 Filter 8 Adjustable feet Detergent dispenser drawer Prewash Main Wash Fabric softener AL035... -
Page 7: The Control Panel
The Control Panel 1 Detergent dispenser drawer 2 Mains-on light This light illuminates when the appliance is operating. 3 RINSE HOLD button Press this button to make the machine stop with water in the drum after the synthetic or delicate wash cycles. This prevents any creasing which may take place if the clothes are left damp in the drum. -
Page 8: Operating Sequence
Operating Sequence Before your first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine. -
Page 9: Select The Required Programme
5. Select the required programme Turn the programme selector dial CLOCKWISE to the required programme. 6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the door and the detergent dispenser drawer are closed. -
Page 10: Washing 2 Kg Of Mixed Fabrics At 50 °C
WASHING 2 KG OF MIXED FABRICS AT 50 °C Suppose you have 2 kg of MIXED FABRICS to wash. They are rather delicate fabrics and should not be washed at a high temperature. 1. Load the laundry Open the door. Place the laundry in the drum, one item at a time, shaking out as much as possible. -
Page 11: Select The Required Programme
5. Select the required programme Turn the programme selector dial CLOCKWISE to the required programme 6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the door and the detergent dispenser drawer are closed. -
Page 12: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 13: Which Detergent To Use
Which detergent to use?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 14: And In Which Form
And in which form? Not only are there different types of detergent, but they are also available in different forms. Whether you choose a powder or liquid in traditional or compact form is down to personal choice. Traditional Powders Pour the powder directly into the dispenser drawer. Do not sprinkle powder onto clothes in the machine drum. -
Page 15: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 16: Washing Programmes
Washing Programmes Programmes for cotton and linen Degree of soil and type Wash programme White example heavy soiled Pre-wash & garments, Whites household underwear, towels. White example normally soiled Whites garments, household underwear, towels. Fast coloured cotton or linen fabric, shirts, Fast Coloureds underwear, (normally soiled) -
Page 17: Washing Programmes
Washing Programmes Programmes for synthetics, delicates and wool Degree of soil and type Wash programme Synthetic or mixed fabrics, Mixed Fabrics coloured garments, non- shrink shirts, blouses. Synthetic or mixed fabrics, Synthetics coloured garments, non- shrink shirts, blouses. Lightly soiled synthetic Quick &... -
Page 18: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply Descaling The water we normally use contains lime. It is a good idea to periodically run a high temperature wash with detergent or use a descaler in the machine. -
Page 19: Cleaning The Filter
Cleaning the filter The water drain filter A clean filter is important for the correct functioning of the machine, and should therefore be cleaned after every washing programme. Open the filter door and place a container underneath to catch any spillage. If the filter is blocked and the machine is unable to drain you will need to drain the water manually from the machine at this stage. -
Page 20: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your Bendix Service Force Centre, please carry out the checks listed below. Important: If you call out an engineer to a fault listed below or to repair a fault caused by incorrect use or installation a charge will be made even if the appliance is in guarantee. -
Page 21: Service & Spare Parts
Symptom The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum If after the above checks, there is still a fault , call your local Bendix Service Force Centre. -
Page 22: Guarantee Conditions
Guarantee Conditions Bendix standard guarantee conditions This guarantee is in addition to your statutory and other legal rights. We, Bendix, undertake that if, within 12 months of the date of the purchase, this BENDIX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:... -
Page 23: Bendix Service Force Addresses
To contact your local Bendix Service Centre telephone CHANNEL ISLANDS GUERNSEY Guernsey Electricity PO Box 4 Vale, Guernsey Channel Islands JERSEY Jersey Electricity Company PO Box 45 Queens Road St Helier Jersey Channel Islands JE4 8NY SCOTLAND ABERDEEN 54 Claremont Street (M05) Aberdeen AB10 6RA AUCHTERMUCHY... - Page 24 To contact your local Bendix Service Centre telephone MIDLANDS BIRMINGHAM 66 Birch Road East (M18) Wyrley Road Ind. Estate Witton Birmingham B6 6DB BOURNE Manning Road Ind. Estate (M44) Pinfold Road Bourne PE10 9HT BRIDGNORTH 68 St. Mary’ s Street (M72) Bridgnorth Shropshire...
-
Page 25: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 26: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance You are advised to keep all the packaging for re-use in case the appliance has to be transported again. Unscrew and remove the three rear transit bolts (using a spanner). -
Page 27: Positioning
Positioning Your new Bendix washing machine has been designed to be permanently plumbed in to your home’s water supply and drainage system. However, if this is not possible, it may be connected to suitable existing taps, with the drain hose discharging into the sink. The appliance has two inlet hoses, hot and cold, with COLD WATER SUPPLY HOT WATER SUPPLY... -
Page 28: Water Drainage
Water drainage This appliance is designed to be permanently plumbed into your home's water supply and drainage system. The appliance drain hose should hook (use the plastic “U-piece” supplied) into a standpipe with an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe. -
Page 29: Levelling
Levelling Level the washing machine by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts against the base of the case. Accurate levelling prevents vibration, noise and displacement of the machine during operation. After levelling the machine, secure the feet by tightening the ring nuts with the aid of a screwdriver. -
Page 30: Electrical Connections
Electrical connections Any electrical work required to install this appliance should be carried out by a qualified electrician.or competent person WARNING: THIS APPLIANCE MUST BE EARTHED. The manufacturer declines any liability should this safety measure not be observed. Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliace rating plate(the plate is sticked to the rear of the appliance). - Page 31 Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ Consumer care telephone number 08705 950 950 Electrolux Household Appliances Limited 2000/04...
