Summary of Contents for BENDIX BIW103W
-

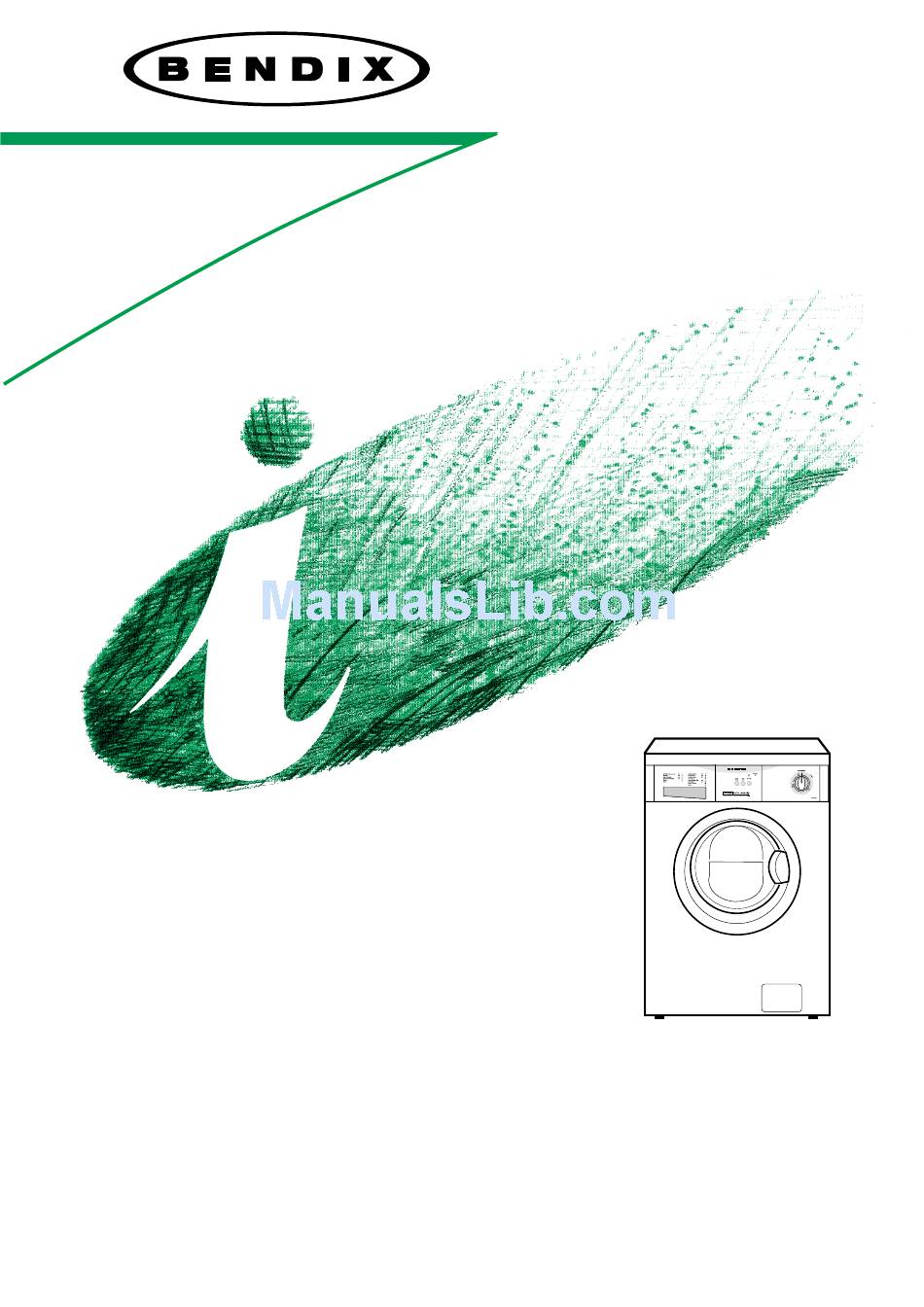

Page 1: Washing Machine
OPERATING & INSTALLATION INSTRUCTIONS WASHING MACHINE BIW 103 W 35.292.794/0... -
Page 2: Important Safety Information
Always unplug the appliance and turn off the water supply after use. malfunctioning. Contact your local Bendix Service Centre. Always insist on genuine Bendix spare Do not overload the appliance. See relevant section parts. in the instruction book. -
Page 3: Table Of Contents
Contents For the User Something Not Working 17-18 Service and Spare Parts Important Safety Information Customer care Your New Washing Machine Guarantee Conditions Description of the Appliance Detergent dispenser drawer For the Installer The Control Panel Installation Instructions 7-10 Operating sequence Washing 4.5 kg of white cotton at 90°C Technical Specifications Load the laundry... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. Automatic cooling of the wash water to 60°C In the interest before draining, with the 90°C programme. This of the environment reduces thermal shock to fabrics, helping to prevent creasing. -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Rinse hold button 4 Half load button 5 ON/OFF button 6 “Mains-on” light 7 Programme selector dial 8 Door opening handle 9 Drain pump 10 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: The Control Panel
The Control Panel 1 Programme guide 5 Mains-on light This light illuminates when the machine starts working and goes out when the machine is switched off. 2 RINSE HOLD button Press this button to make the machine stop with water 6 Programme selector dial in the drum after the wash cycle. -
Page 7: Operating Sequence
Operating Sequence Before the first wash, we recommend that you run a 3. Measure out the fabric cotton cycle at 60°C, without any laundry in the softener machine, to remove any manufacturing residue from the If required, pour fabric softener into the compartment drum and tub. -
Page 8: Start The Machine
6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply taps are turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating. -
Page 9: Washing 2 Kg Of Mixed Fabrics At 50°C
WASHING 2 KG OF MIXED FABRICS AT 50°C 4. Select the required option Suppose you have 2 kg of Mixed fabrics to wash. They Depress the RINSE HOLD button if required. are rather delicate fabrics and should not be washed at a high temperature. -
Page 10: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the For wool, use gentle detergent only in small first few times you use the appliance. quantities. Bleach is very corrosive; it should be used with care The average weights of the most common items are and kept out of reach of children. -
Page 11: Which Detergent
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice. -
Page 12: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 13: Washing Programmes
Washing Programmes Programmes for cotton and linen Degree of soil and type Programme dial Possible Max. Wash programme Description of laundry position options load White cotton, Prewash at 40 ˚C example heavy soiled Wash at 90˚C rinse hold Whites+Prewash garments, sheets, 4.5 kg 3 rinses... -
Page 14: Washing Programmes
Washing Programmes Programmes for synthetics, delicates and wool Degree of soil and type Programme dial Possible Max. Wash programme Description of laundry position options load Synthetic or mixed Prewash fabrics, underwear, Wash at 50˚C rinse Mixed fabrics 2 kg coloured garments, non- 3 rinses hold shrink shirts, blouses. -
Page 15: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 16: Cleaning The Water Inlet Filters
• When no more water comes out, unscrew the pump Remove and clean the filters using a hard bristle brush. cover and remove it. Always keep a rag nearby to dry Replace the filters and tighten up the inlet hoses. up spillage of water when removing the cover. -
Page 17: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee. -
Page 18: Service And Spare Parts
Service & Spare Parts contact our Customer Care Department by letter or telephone as follows: If you require an engineer or wish to purchase spare parts contact your local Bendix Service Force Centre by telephoning: Customer Care Department Bendix 08705 929929... -
Page 19: Guarantee Conditions
This guarantee does not cover: legal rights. Damage or calls resulting from transportation, We, Bendix, undertake that if, within 12 months of the improper use or neglect, the replacement of any light date of the purchase, this BENDIX appliance or any bulbs or removable parts of glass or plastic. -
Page 20: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 21: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance You are advised to keep all the packaging for re-use in case the appliance has to be transported again. Unscrew and remove the three rear transit bolts (using a spanner). -
Page 22: Positioning
Before connecting the hoses, be sure to fit the black washers supplied as per diagram. Your new Bendix washing machine has been designed to be permanently plumbed in to your home’s water supply and drainage system. However, if this is not possible, it may be connected to suitable existing taps, with the drain hose discharging into the sink. -
Page 23: Water Drainage
Water drainage This appliance is designed to be permanently plumbed into your home's water supply and drainage system. 3 pin The appliance drain hose should hook (use the plastic “U-piece” supplied) into a standpipe with an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe. -
Page 24: Levelling
Levelling Level the washing machine by loosening or tightening the feet. Once in the right position fix the feet by pushing the nuts against the base of the case. Accurate levelling prevents vibration, noise and displacement of the machine during operation. After levelling the machine, secure the feet by tightening the ring nuts with the aid of a screwdriver. -
Page 25: Electrical Connection
The cover/carrier is indicated by the coloured insert at the base of the plug. A replacement cover/carrier must be obtained from your local Bendix Service Centre. Permanent connection In the case of permanent connection it is necessary that WARNING: a cut off plug inserted into a 13 you install a double pole switch between the appliance amp socket is a serious safety (shock) hazard. - Page 28 Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ Consumer care telephone number 08705 950 950 Electrolux plc 2002/06...
