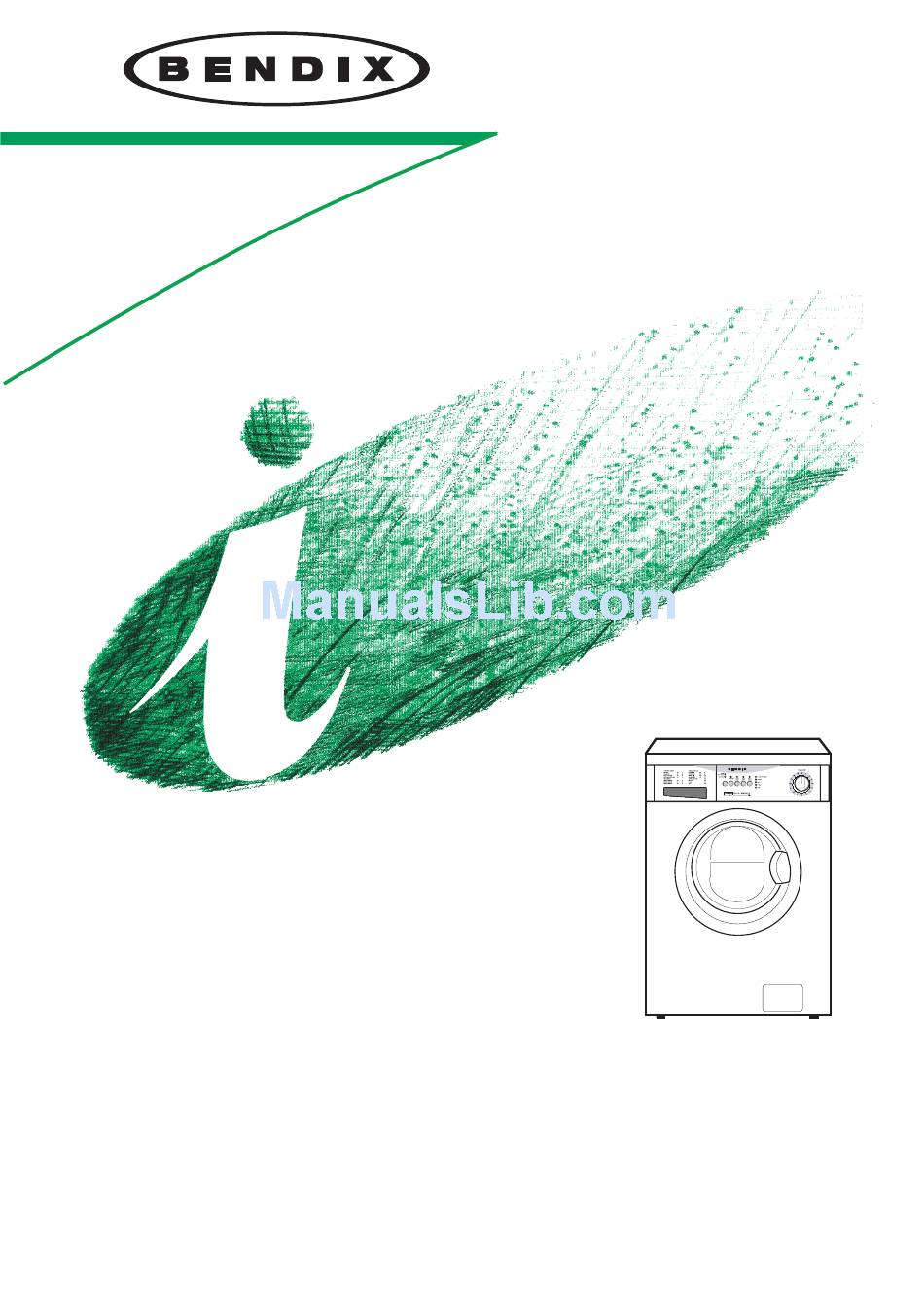

Page 1: Washing Machine
OPERATING & INSTALLATION INSTRUCTIONS WASHING MACHINE BIW 104 W 35.292.918/0... -
Page 2: Important Safety Information
Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings. -
Page 3: Table Of Contents
Contents For the User Important Safety Information Your New Washing Machine Description of the Appliance Detergent dispenser drawer The Control Panel Programme information Operating sequence Washing 4.5 kg of white cotton at 90°C Load the laundry Measure out the detergent Measure out the fabric softener Select the required programme Select spin speed reduction or no spin option... -
Page 4: Your New Washing Machine
Your New Washing Machine Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. The programme selector dial combines the function of programme and temperature selection, making it easier to set the programme. The programme progress display shows the washing phase and the end of the programme . -
Page 5: Description Of The Appliance
Description of the Appliance 1 Detergent dispenser drawer 2 Programme guide 3 Control panel 4 Door opening handle 5 Drain pump 6 Adjustable feet Detergent dispenser drawer Prewash Main wash Fabric softener... -
Page 6: The Control Panel
The Control Panel 1 Detergent dispenser drawer Programme Option buttons Depending on the programme, different functions can be combined. These must be selected after choosing the desired programme and before pressing the “start pause” button. When these buttons are pressed, the corresponding pilot lights come on. -
Page 7: Programme Information
After the machine has started, only the running phase pilot light stays on. When the pilot light “prewash/wash” comes on this means that the machine is performing the prewash or wash phase. If you have selected the “prewash” function, this light will be on during the prewash phase too. -
Page 8: Operating Sequence
Operating Sequence Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment the detergent drawer in order to activate the ECO valve. Then run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. -
Page 9: Start The Programme
6. Start the programme Before starting up the machine check that: the appliance is plugged in the water supply tap is turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. To start the selected programme, press the “start pause”... -
Page 10: Washing 2 Kg Of Mixed Fabrics At 50°C
WASHING 2 KG OF MIXED FABRICS AT 50°C Suppose you have 2 kg of lightly soiled mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature. 1. Load the laundry Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. -
Page 11: At The End Of The Programme
To start the selected programme, press the “start pause” button; the corresponding light stops flashing. Only the “prewash/wash” pilot light stays on. The machine starts operating. 8. At the end of the programme The machine stops automatically. If the “rinse hold” option has been selected, the phase light “end”... -
Page 12: Washing Hints
Washing Hints Do NOT overload the machine. Weigh the laundry the first few times you use the appliance. The average weights of the most common items are listed below as a guide: 1000g = 1 kg Sheet Pillow case Tablecloth Serviette Tea towel Linen hand towel... -
Page 13: Which Detergent
Which detergent?... To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines. To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates. -
Page 14: Wash Care Symbols
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine. -
Page 15: Washing Programmes
Washing Programmes Programmes for cotton and linen Wash programme/ Degree of soil Washing symbol and type of laundry For heavy soiled cotton WHITES items. White cotton, for example normally soiled work garments, sheets, ECO WASH household linen, underwear, towels. Fast coloured cotton or FAST linen fabrics, normally COLOURS... -
Page 16: Washing Programmes
Washing Programmes Programmes for synthetics, mixed fabrics, delicates and wool Wash programme/ Degree of soil Washing symbol and type of laundry Synthetic or mixed fabrics, underwear, MIXED coloured garments, FABRICS non-shrink shirts, blouses. Delicate fabrics, for DELICATES example curtains Specially tested programme for wool garments bearing the WOOL... -
Page 17: Maintenance And Cleaning
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. -
Page 18: Cleaning The Water Inlet Filter
• When no more water comes out, unscrew the pump cover and remove it. Always keep a cloth nearby to dry up spillage of water when removing the cover. • Remove any objects from the pump impeller by rotating it. •... -
Page 19: Something Not Working
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below. During machine operation it is possible that the “end” light flashes to indicate that the machine is not working. •... -
Page 20: Service And Spare Parts
Symptom The machine vibrates when spinning The door will not open Spinning starts late or the machine does not spin The machine makes an unusual noise No water is visible in the drum Service & Spare Parts In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Bendix Service Force Centre by telephoning: 0870 5 929929... -
Page 21: Guarantee Conditions
Customer Care For general enquiries concerning your Bendix appliance or for further information on Bendix products, please contact our Customer Care Department by letter or telephone as follows: Guarantee Conditions Standard guarantee conditions We, Bendix undertake that if, within 12 months of the date of the purchase, this Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option,... -
Page 22: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 23: Unpacking
Unpacking All transit bolts and packing must be removed before using the appliance You are advised to keep all the packaging for re-use in case the appliance has to be transported again. Unscrew and remove the three rear transit bolts (using a spanner). -
Page 24: Water Inlet
Water inlet Connect the hose to a tap with a 3/4” thread. Do not use previously used hoses for water connection. Installation should comply with local water authority and building regulations’ requirements. The appliance must be connected to a cold water supply. -
Page 25: Levelling
2. Onto a sink outlet spigot. If the outlet spigot has not been used before, remove any blanking plug that may be in place. Push the drain hose onto the spigot and secure with a clip if required, ensure a loop is formed in the drain hose (see diagram) to prevent waste from the sink entering the washing machine. -
Page 26: In The Interest Of The Environment
In the interest of the environment Washing machines and dishwashers should be connected to the FOUL drainage system, the water will then be taken to a sewage works for treatment before being discharged safely into a river. It is essential that these appliances are not connected to the surface water drainage system as this water is discharged directly into a river or stream and may cause pollution. - Page 28 Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ Consumer care telephone number 08705 950 950 Electrolux plc 2004/06...
