Auger Access; Auger Tube Cleaning; Auger Check - Masterbuilt MWS 130S Instructions Manual

2. Unplug from wall.
4. Cleanout any ash, pellets or debris in crucible.
5. Remove pellets from hopper.
6. Remove four screws holding pellet hopper to auger housing and remove hopper.
Reference Fig. 1 on page 42.
Tip: If connections to controller are limiting space, remove controller and disconnect connections to gain
7. Remove auger motor screw and nut (Fig. 4).
8. Pull auger motor from auger.
9. Remove auger bushing screw and remove auger bushing.
10. Remove auger from auger tube.
11. Using medium grit sand paper, sand outside of auger and inside of auger tube.
12. Using a vacuum clean out auger tube.
13. Insert auger into auger tube.
14. Insert auger tube bushing and assemble screw.
15. Push auger motor onto auger shaft and assemble screw and nut.
Tip:
16. Assemble pellet hopper to auger housing using four screws.
Cleaning is complete.
Fig. 4
Auger
Motor
3. Clean out any ash, pellets or debris in the crucible.
is pressed again.
instructions.

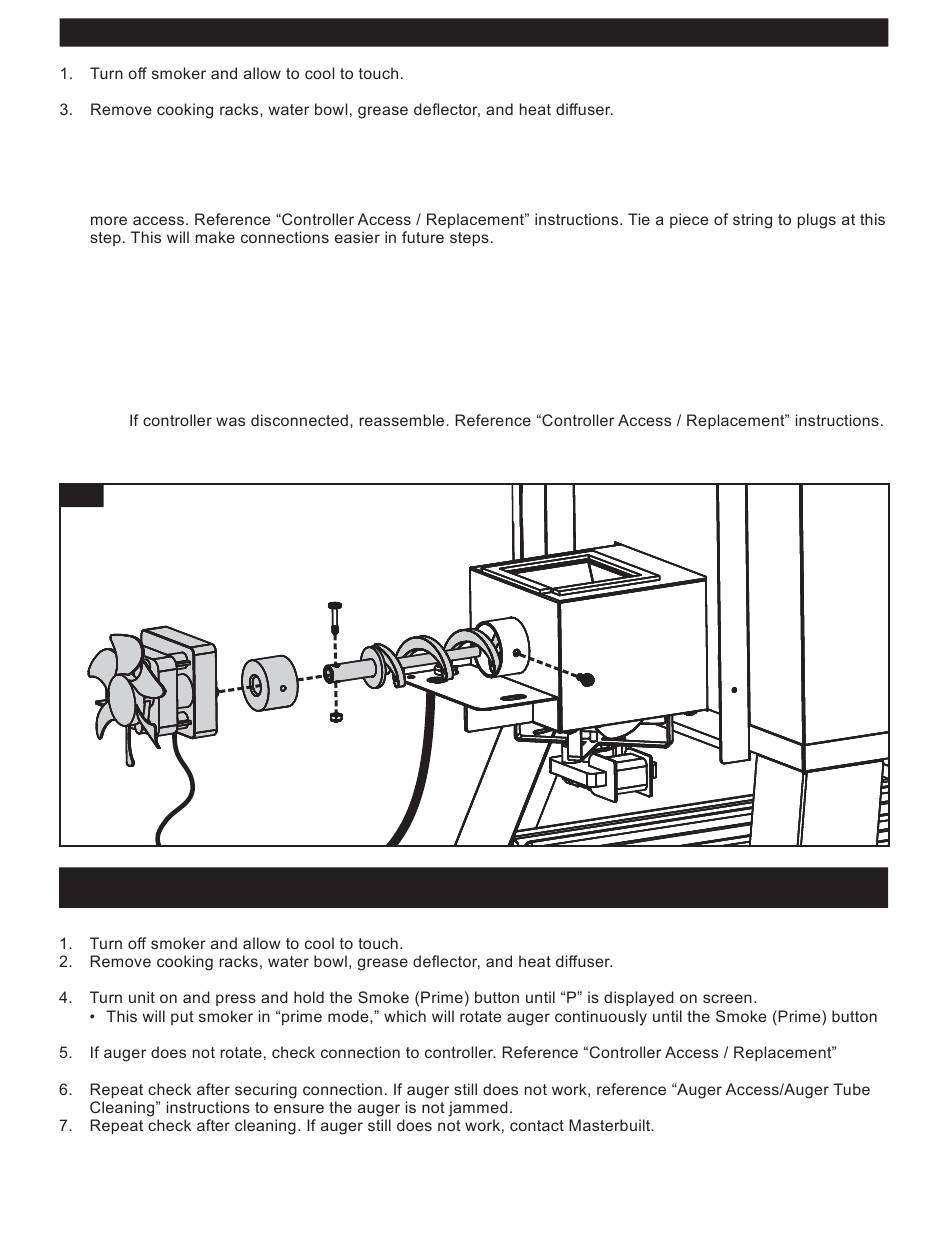

AUGER ACCESS / AUGER TUBE CLEANING
Auger
Auger
Bushing

AUGER CHECK
