Summary of Contents for JVC LT-24CM69BE

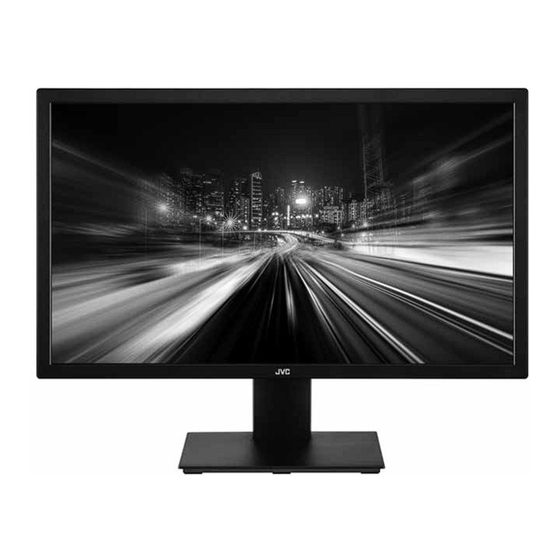

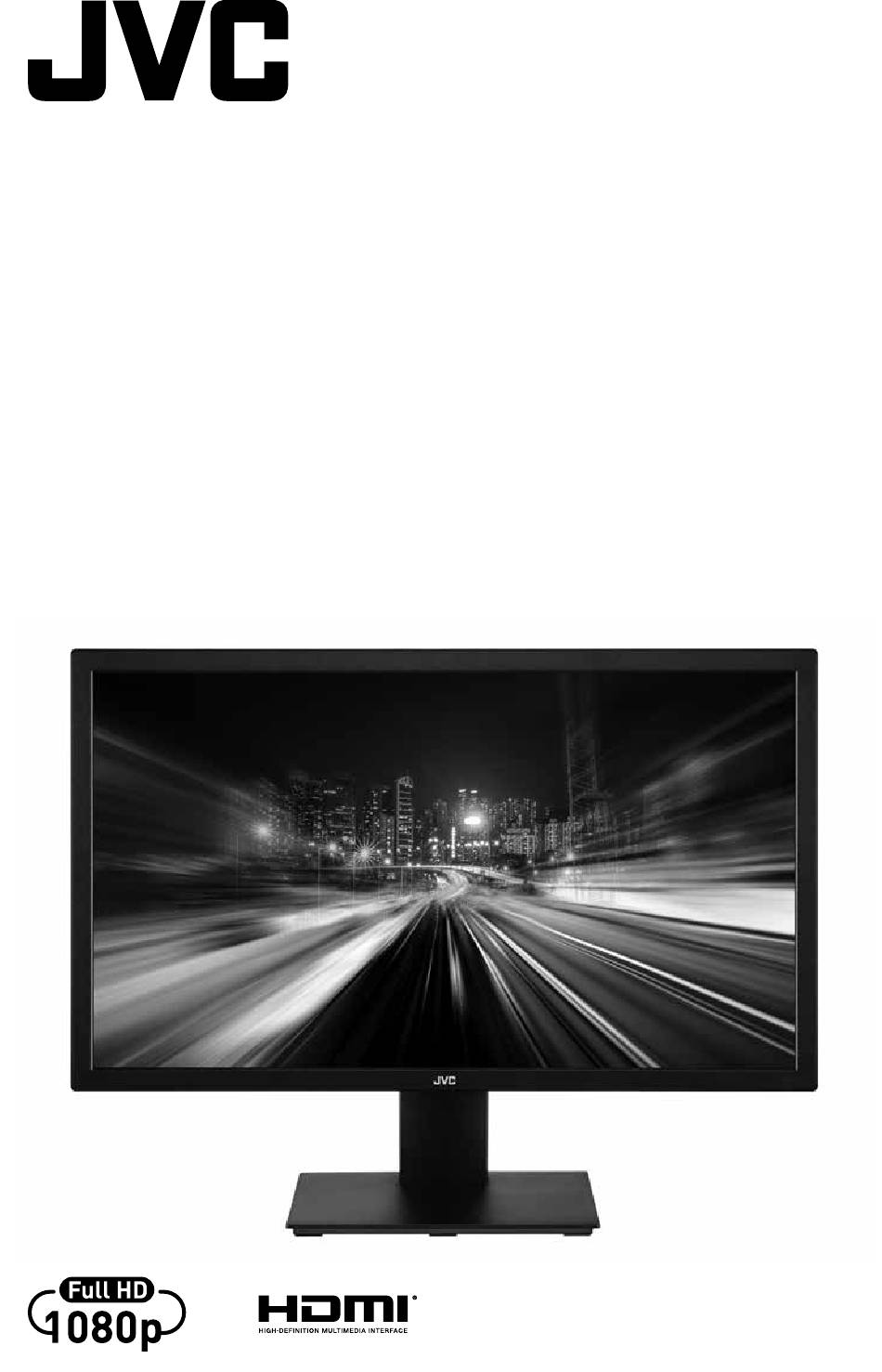

- Page 1 Instruction Manual 24" FULL HD LED MONITOR LT-24CM69BE...
-
Page 2: Table Of Contents
Contents Safety Warnings ......................1 Unpacking ........................4 Installing / Removing the Base Stand ................5 Assembling the Stand Base....................... 5 Mounting the Monitor ........................6 Detaching the Stand Base ......................... 6 Product Overview ......................7 Main Unit ..............................7 Connection ........................8 Adjusting the Angle ......................9 Basic Operating ...................... -
Page 3: Safety Warnings
Safety Warnings • Read all the instructions carefully before • Do not install the monitor on a ceiling or using the unit and keep them for future an inclined wall. reference. • Only use the screws supplied with the • Retain the manual. If you pass the unit wall mount bracket when attaching the onto a third party make sure to include monitor to the bracket. - Page 4 LCD screen • In the interests of safety and to avoid unnecessary energy consumption, • The LCD screen is manufactured using never leave the unit switched on while high-precision technology. However, unattended for long periods of time, e.g. some tiny black points and / or bright overnight, while on holiday or while out points (red, blue or green in colour) may of the house.
- Page 5 Maintenance CAUTION • Ensure to unplug the unit from the mains RISK OF ELECTRIC SHOCK socket before cleaning. DO NOT OPEN • Do not use any type of abrasive pad or The lightning flash with abrasive cleaning solutions as these may arrowhead symbol, within an damage the unit’s surface.
-
Page 6: Unpacking
Thank you for purchasing your new JVC LED Monitor. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Installing / Removing The Base Stand
Installing / Removing the Base Stand The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it. -
Page 8: Mounting The Monitor
Mount this monitor according to the instructions included in the mounting kit. Due to space restrictions, we recommend that you make all connections before mounting on to the wall. 100 mm Monitor Weight (Without Stand): LT-24CM69BE: 2.38 kg Four mounting holes (size M4-8mm screw) -
Page 9: Product Overview
Product Overview Main Unit Front View 1. Power LED • Illuminates when the monitor is in On mode. • Flash when the monitor is On but haven’t received any signal (Standby mode). • Light will go off when the monitor is in Off mode. -
Page 10: Connection
Connection 1. Insert the desired cable into the matching connector on your computer. HDMI Connect the input signal cable and tighten it by turning the screws clockwise. To prevent HDMI Cable VGA Cable disconnection secure the cable firmly, do not (included) (not included) over tighten. -
Page 11: Adjusting The Angle
Adjusting the Angle 1. Place the monitor in an upright position, mounted –5° 15° on the stand base. 2. Adjust the angle of the screen. The angle of the screen can be adjusted forwards or backwards from -5° to 15° for a comfortable viewing experience. Front Rear side... -
Page 12: Basic Operating
Basic Operating Monitor Controls 1. Press the desired button at the rear of the monitor. 2. Press the buttons to change the value of the menu then press the E button to confirm the selection. 3. To return to the upper menu or exit the OSD menu, press the M button. -
Page 13: Auto Adjust Image
Auto Adjust Image This function provides the user with optimal display settings. • When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. • When you encounter problems such as blurry screen, blurred letters, screen flicker or tilted screen while using the device or after changing screen resolution, press the E button to improve resolution. - Page 14 Allows you to watch the screen in various picture formats: Auto / 16:9 / 4:3. Select the input source: VGA / HDMI. Auto Adjust Automatically adjust the horizontal / vertical location, focusing and clock of pictures. (VGA signal only) Auto Colour Adjust the white balance of picture.
-
Page 15: Maintenance
Maintenance Cleaning the Unit Ensure the unit is fully unplugged from the mains socket before cleaning. • Use a soft dry cloth to wipe away the dust from the screen and surfaces. • If the surfaces are extremely dirty, clean the monitor with a cloth which has been dipped in a slightly soapy water. - Page 16 Flashing Screen • The power is insufficient to connect the monitor or is too weak. • To avoid a magnetic field around the monitor, move devices like speakers, flourescent lights, AC transformers, table fans, etc. farther away. • By pressing the E button, the Auto Adjust Image function will automatically apply optimized settings to the display.
- Page 17 Product Fiche and Specifications Brand Model LT-24CM69BE Energy Efficiency Class Screen Size (measured diagonally) Approx. 60 cm (23.6 inch) Power Consumption 24.0 W Average Annual Energy 35 kWh Consumption * (Please refer to *1 under this table) Standby Power Consumption 0.40 W...
- Page 18 LT-24CM69BE kWh/annum Watt 23.6 inch 2020 2010/1062 -...
-
Page 19: Useful Information And Licences
Useful Information and Licences Whether it’s a tech emergency or you need plain good advice, All the support you need. Currys.co.uk we’re always on hand to help, call (UK) 0344 5611234 or (Ireland) 1 890 818 575. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. - Page 20 Click on SEARCH and enter the model number. The product is distributed and warranted exclusive by DSG Retail Ltd. “JVC” is the trademark of JVCKENWOOD Corporation, used by DSG Retail Ltd. under license. (IB-LT-24CM69BE-190920V4)
