20 Installation RVON+

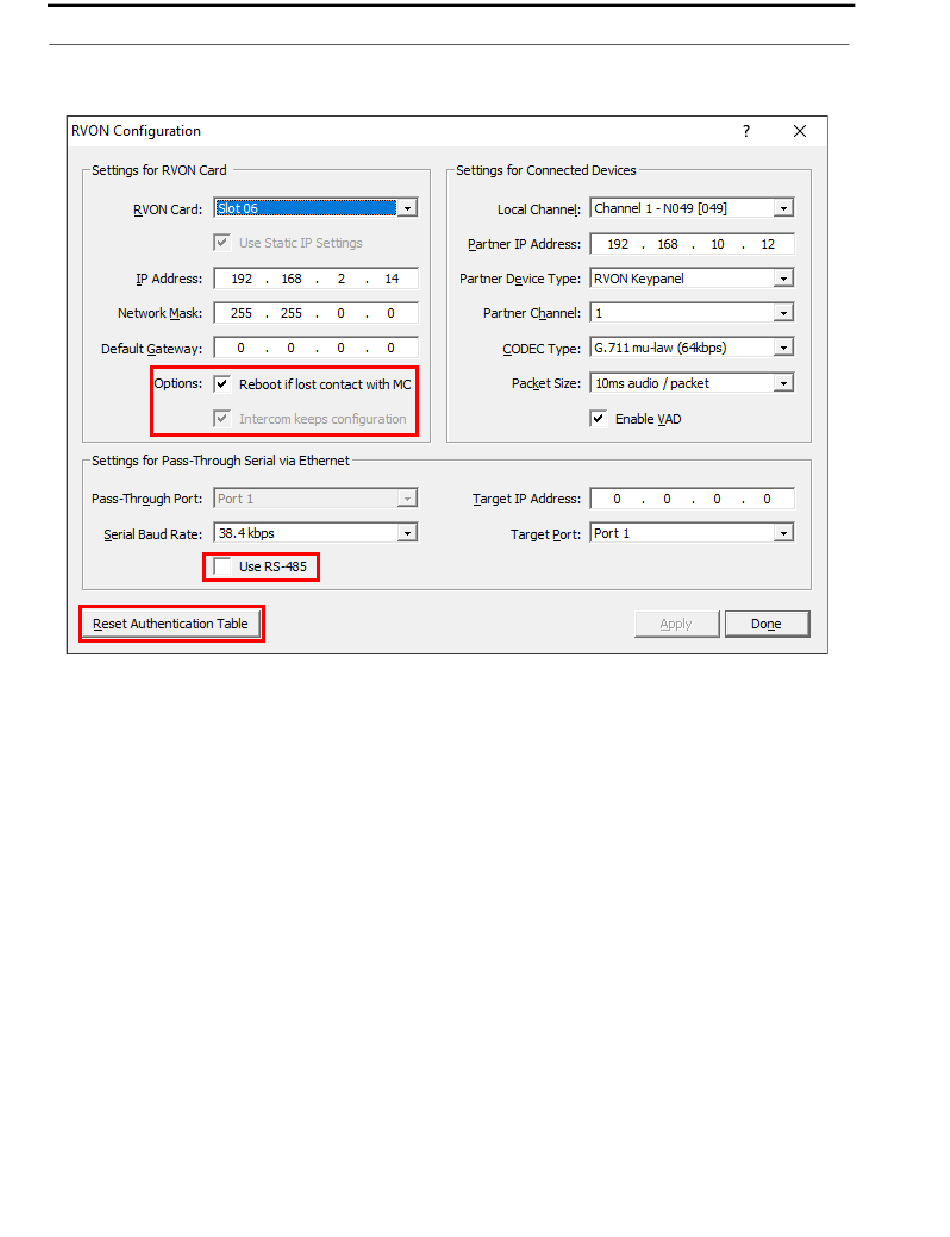

AZedit - RVON Configuration Options
FIGURE 8.

Reboot if lost contact with MC check box

The Reboot if lost contact with MC check box determines if the RVON+ card reboots after 30 seconds of no communication
with the Master Controller.
When this option is not selected, pass-through serial data continues when the intercom is otherwise down (for example, when
upgrades are being made).
NOTE: This option can be configured in AZedit or IPedit.

Intercom keeps configuration check box (Read Only)

The Intercom keeps configuration check box displays the state of the J1 jumper physically located on the RVON+ front card.
In AZedit, this option is greyed out and used for status purposes only. For more information on the J1, see "J1 Configuration
File Save Location" on page 18.

Use RS-485 check box

The Use RS-485 check box indicates the card is running RS-485 serial operation on the debug/serial pass through port. When
the check box is not populated, the card is running RS-232 serial operation. On legacy RVON devices (RVON-16 and earlier)
this configuration is controlled by a dip switch.
