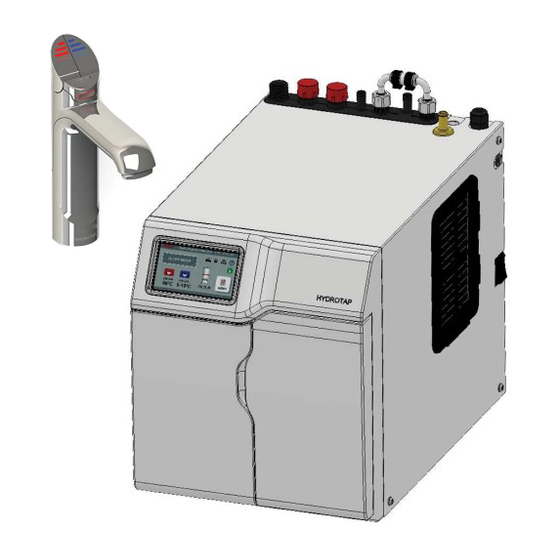

Installation Instructions ® Zenith HydroTap G4 Filtered Chilled drinking water for residential kitchens and tea rooms. Affix Model Number Label Here 802261NZ 802261NZ - Residential HydroTap - CO Installation Instructions - 11.16 - v2.01 Page 1 of 20... -
Page 2: Step
Notes Page 2 of 20 802261NZ - Residential HydroTap - CO Installation Instructions - 11.16 - v2.01... -
Page 3: Table Of Contents
Index HydroTap Specifications Installation check list ........................4 General Product Features ......................5 Important Safety Instructions ....................... 6 Warnings and Regulatory Information ..................7 Major components and Accessories .................... 7 Technical Specification ........................ 8 Before installation and site requirements ..................8 Installation Instructions - Measure and cut all the tap holes before fitting the taps STEP 1... -
Page 4: Installation Checklist
Installation checklist Before Installation: Read the instructions and check if there is adequate space to mount all of the components. Note: Not all fittings are supplied with the appliance kit. Isolation valves are not supplied. Check the mains water pressure is between 172 - 700kPa Check the water quality to determine if extra filtration will be required. -
Page 5: General Product Features
Braille caps for the visually impaired. Usage: The Zenith HydroTap is intended for use in residential household and similar applications such as, rural and urban residential Kitchens, Hotels, Motels, Bed and Breakfast and other residential type environments. -
Page 6: Important Safety Instructions
Lifting Take care when lifting the Zenith HydroTap unit. Some units may exceed safe lifting limits. If you feel this is beyond your personal capabilities, please seek assistance with the lift. The weights of the units are marked on the packaging. -
Page 7: Warnings And Regulatory Information
Major components and accessories Parts supplied Description Accessories Description HydroTaps with Font Kit for hoses. Arc & Cube Models (Classic tap shown) 1 off Font Kit for Classic & HydroTap Elite Models Undersink Unit with water filter 1 off Mains water connection hose Replacement Filter 1 x Inlet vent... -
Page 8: Technical Specification
Technical Specifications Residential models: C = Chilled filtered D = Disabled lever controls, (Order as an option) Note: the standard Glass measurement =200ml Product covered by these instruction: Boost GPO's Power Unit Dimensions **Dry (10A) Required Rating W x D x H (mm) Weight (kW) (Kg) -
Page 9: Measure And Cut All The Tap Holes Before Fitting The Taps Section 1 - Tap Installation Instructions 1.1 - Hydrotap Tap Installation
Position the tap such that it dispenses into the sink bowl with ample clearance for a cup or tea pot. Alternative- ly, the tap could be mounted away from the sink using a Zenith Font, available as an accessory. Recommended... - Page 10 HydroTap & Elite Installation EliteTap HydroTap Classic Clearance ALL THREAD STAINLESS STEEL BLACK PLASTIC SPACER SPACER SPIDER CLAMP Tap assembly exploded view and kitchen layout side view. BENCH TOP Apply a light smearing of silicon sealant on the Ø35mm underside of the spacer to ensure a watertight fit. Cut a 35mm hole in the bench / sink top.
-
Page 11: Installation Instructions
Installation Instructions BLACK PLASTIC STAINLESS SPACER STEEL WASHER Fit the STAINLESS STEEL WASHER, SPIDER CLAMP SPIDER CLAMP, AND 6mm NUT. 6mm NUT 35mm hole feed each of the three tubes and Note Note electrical cable evenly in between the legs of Pass all the hoses, tubes and USB lead the SPIDER CLAMP when installing. - Page 12 HydroTap Arc/Cube The HydroTap Arc/Cube has a spout that may be fixed in one of 6 angular positions (depending on the position of the rotary control) and fixed in one of two height positions. The spout is fixed and does not swivel. NOTE: The tube kit must be fitted after the HydroTap has been mounted on the benchtop or sink.
- Page 13 Installation Instructions Height adjustment (Fixed position options) 50mm Angular adjustment (Fixed position options) Left Hand Control Right Hand Control NOTE: Position A is not recommended with Boiling water units Mounting (See table on Page 11 ) O-RING BENCH TOP LOWER Ø35mm RUBBER WASHER...
-
Page 14: Section 2 - Ventilation
Section 2 Ventilation When installing air flow ducts, the following tools will be required: • Jigsaw and 12mm Drill • Keyhole or Wall Board saw. Ventilation for All Models Proper air circulation must be provided for all Boiling and Chilled models. The system will operate correctly only if the recommended air gaps are achieved during Installation. -
Page 15: Details
Ventilation The following instructions are critical if there is insufficient cupboard air circulation. If the air flow, using the silicon door buffers, is insufficient, it will be necessary to fit a standard HydroTap vent kit, which ensures heat dissipation through natural convection via installed vents. For high use applications, where the cupboard space temperature is near 35°C, or higher, the inlet vent (See Item B below) and silicon buffers, need to be fitted. -
Page 16: Section 3 - Undersink Unit Installation
Section 3 Undersink Unit Installation Hose and tube fitting. (Do not overtighten) - Remove all caps from the top of the undersink unit ; - Install the mains water braided hoses to the undersink unit before locating the unit in place. - Fit the foam insulation to the Blue tube after trimming to length Note: All silicon All silicon... -
Page 17: Section 4 - Commissioning
Section 4 Commissioning • Turn the power ON at the GPO and at the side of the undersink unit • Turn ON the water and check for any leaks. • At first commissioning, the screen will prompt you to select a language. •... -
Page 18: Trouble Shooting
Internal fault Call Zenith Service Call an electrician, a plumber, or Zenith on 0800 558055 for assistance, service, spare parts or enquiries. NOTE: For any subsequent fi lter changes or any operational procedures, please refer to the HydroTap user guide, located inside the fi lter housing access door. -
Page 19: End Of Life Disposal
End of Life Disposal In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details. 802261NZ - Residential HydroTap - CO Installation Instructions - 11.16 - v2.01 Page 19 of 20... -
Page 20: Contact Details
WMKA00099 AS 3498 The standard glass is 200 ml (7 fl oz). The terms “Zenith” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd. Zenith products described in this publication are manufactured under one or more of the following patents: AU675601, AU637412, AU635979, GB0422305, GB2065848, US4354049, US5103859, US5099825 and SA2006/08043.
