- Page 1 ® 8808A Digital Multimeter Getting Started Manual Specifications PN 2716412 July 2007 © 2007 Fluke Corporation, All rights reserved. Printed in China All product names are trademarks of their respective companies.
- Page 2 Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available only if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price.
-
Page 3: Table Of Contents
Table of Contents Title Page Introduction......................1 Manual Set ......................2 Contacting Fluke....................2 Safety Information ..................... 2 General Safety Summary................2 Symbols ......................4 Unpacking and Inspecting the Meter ..............4 Storing and Shipping the Meter ................. 4 Power Considerations ..................5 Selecting the Line Voltage ................ - Page 5 Table Title Page Safety Information ....................3 Safety and Electrical Symbols................4 Line Voltage to Fuse Rating................... 6 Line-Power Cord Types Available from Fluke............8 Factory Settings of RS-232 Communication Parameters........11 Accessories......................11 List of Figures Figure Title Page Replacing the Line-Power Fuse ................
- Page 6 8808A Getting Started Manual...
-
Page 7: Introduction

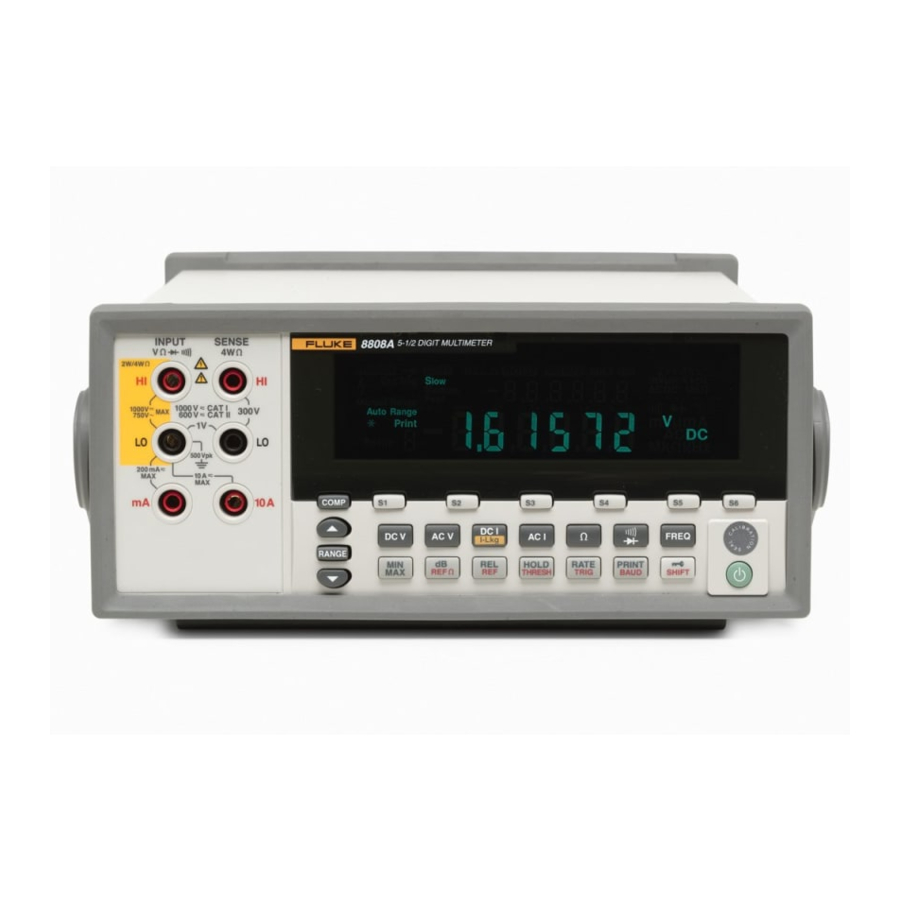

Digital Multimeter Introduction The Fluke 8808A Digital Multimeter (hereafter referred to as the Meter) is a 5-1/2 digit dual-display multimeter designed for bench-top, field service, and system applications. The multiple measurement functions, plus the RS-232 remote interface, make the Meter an ideal candidate for precision manual measurements and use in automated systems. -
Page 8: Manual Set
In addition, it contains information on using the Meter remotely from a PC or instrument controller. Contacting Fluke To order accessories, receive operating assistance, or get the location of the nearest Fluke distributor or Service Center, call: USA:... -
Page 9: Safety Information
Digital Multimeter Safety Information Table 1. Safety Information XW Warning To avoid possible electric shock, personal injury, or death, read the following before using the Meter: • Use the Meter only as specified in this manual, or the protection provided by the Meter might be impaired. -
Page 10: Symbols
Carefully unpack the Meter from its shipping container and inspect the contents for damaged or missing items. If the Meter appears damaged or something is missing, contact the carrier and Fluke immediately. Save the container and packing material in case you have to return the Meter. -
Page 11: Power Considerations
Digital Multimeter Power Considerations To store the Meter, place the box under cover in a location that complies with the storage environment specifications described in the “General Specifications” section later in this manual. Power Considerations The Meter operates on varying power distribution standards found throughout the world and must be set up to operate on the line voltage that will power it. -
Page 12: Current-Input Fuses
8808A Getting Started Manual Table 3. Line Voltage to Fuse Rating Line Voltage Selection Fuse Rating 100 / 120 0.125 A, 250 V (slow blow) 220 / 240 0.063 A, 250 V (slow blow) eue20.eps Figure 1. Replacing the Line-Power Fuse Current-Input Fuses The 200 mA and 10 A inputs are protected by user-replaceable fuses. - Page 13 Digital Multimeter Power Considerations XW Warning To avoid electric shock, remove the power cord and any test leads from the Meter before opening the current-input fuse access door. To replace the current-input fuses: 1. Unplug the power cord. 2. Turn the Meter upside down. 3.
-
Page 14: Connecting To Line Power
2. Verify that the correct fuse for the line voltage is installed. 3. Connect the power cord to a properly grounded three-prong outlet. See Figure 3 for line-power cord types available from Fluke. Refer to Table 4 for descriptions of the line-power cords. -
Page 15: Turning Power On
Digital Multimeter Turning Power On Turning Power On 1. If required, connect the Meter to line power. 2. Toggle the power switch on the rear panel so the “I” side of the switch is depressed. The Meter will turn on and briefly illuminate all LCD segments. Note To save on power consumption, the Meter can be set to a standby mode by pressing P on the front panel. -
Page 16: Preparing The Meter For Operations Via The Rs-232 Interface
Meter and a host, serial printer, or terminal. The following section describes setting up the RS-232 port. Additional information on how to communicate and control the Meter through the RS-232 port is contained in Chapter 5 of the 8808A Users Manual on the accompanying CD. -
Page 17: Options And Accessories
Digital Multimeter Options and Accessories 4. Press U or V to scroll to desired data bits (7 or 8) selection, then press R for 2 seconds to set parity. Echo appears on the secondary display, and 0n or 0FF appears on the primary display. 5. -
Page 18: Cleaning The Meter
8808A Getting Started Manual Cleaning the Meter XW Warning To avoid electric shock or damage to the Meter, never get water inside the Meter. W Caution To avoid damaging the Meter’s housing, do not apply solvents to the Meter. If the Meter requires cleaning, wipe it down with a cloth that is lightly dampened with water or a mild detergent. - Page 19 ® 8808A Digital Multimeter Specifications PN 2716412 July 2007 © 2007 Fluke Corporation, All rights reserved. Printed in China All product names are trademarks of their respective companies.
- Page 21 Table of Contents Title Page General Specifications ..................1 Voltage ......................1 Dimensions ....................1 Display......................1 Environment ....................1 Safety......................2 EMC ......................2 Triggering ...................... 2 Math Functions....................2 Electrical......................2 Remote Interfaces ..................2 Warranty ......................2 Electrical Specifications ..................
- Page 22 8808A Getting Started Manual...
-
Page 23: General Specifications
Specifications General Specifications Voltage 100V Setting ............90 V to 110 V 120V Setting ............. 108 V to 132 V 220V Setting ............. 198 V to 242 V 240V Setting ............. 216 V to 264 V Frequency............47 Hz to 440 Hz. Power Consumption ......... -
Page 24: Safety
8808A Getting Started Manual Safety Complies with IEC 61010-1:2001, ANSI/ISA 61010-1 (S82.02.01):2004, UL 61010-1:2004, CAN/CSA C22.2 No. 61010.1:2004, CAT I 1000V/CAT II 600 V. Designed to comply with IEC 61326-1:1997+A1:1998+A2:2000 Triggering Trigger Delay ............ 400 ms External Trigger Delay ........<2 ms External Trigger Jitter ........ -
Page 25: Ac Voltage Specifications
Digital Multimeter Electrical Specifications Accuracy Accuracy Temperature Coefficient/°C Range 90 days 1 year Outside 18 – 28 °C 23 °C ± 5 °C 23 °C ± 5°C 200 mV 0.01 + 0.003 0.015 + 0.004 0.0015 + 0.0005 0.01 + 0.002 0.015 + 0.003 0.001 + 0.0005 0.0020 + 0.0005... -
Page 26: Resistance
8808A Getting Started Manual Accuracy (cont.) Accuracy Temperature Range Frequency 90 days 1 year Coefficient/°C Outside 18 – 28 °C 23 °C ± 5 °C 23 °C ± 5 °C 200 V 20 Hz – 45Hz 0.8 + 0.05 0.9 + 0.05 0.01 + 0.005... -
Page 27: Dc Current
Digital Multimeter Electrical Specifications DC Current Input Protection ..........Tool accessible 11 A / 1000 V and 440 mA / 1000 V fuses. Shunt Resistance..........0.01 Ω for 2 A and 10 A ranges 1 Ω for 20 mA and 200 mA Burden voltage <... -
Page 28: Frequency
8808A Getting Started Manual Accuracy Accuracy Temperature Range Frequency 90 days 1 year Coefficient/°C Outside 18 – 28 °C 23 °C ± 5 °C 23 °C ± 5 °C 20 mA 20 Hz - 45Hz 1 + 0.05 1.25 + 0.06 0.015 + 0.005...
