Summary of Contents for Blaupunkt HEIDELBERG Heidelberg CD51

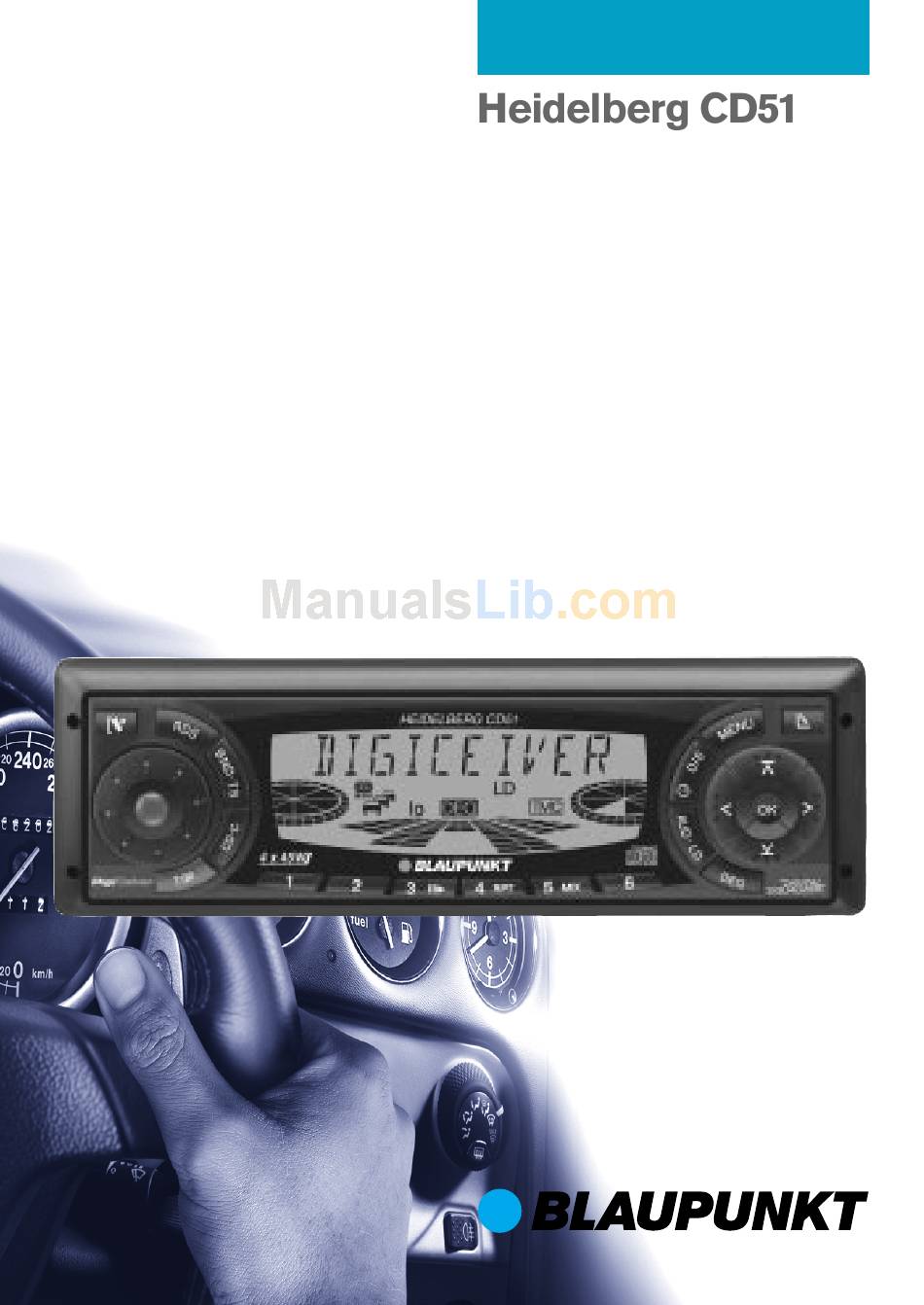

- Page 1 Radio / CD Operating instructions...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir...
- Page 4 button - unlatches the flip/ release panel Volume control Button - switches the radio and mute function on/off RDS button - switches RDS con- venience function on/off (radio data system). Selects variable radio texts. BND button (band), source se- lection for radio mode, selection of FM memory levels and the wavebands MW and LW TS, starts the Travelstore func-...
-
Page 5: Table Of Contents
Notes and accessories ... 33 Road safety ... 33 Installation ... 33 Accessories ... 33 International telephone information . 33 Flip/release panel ... 34 Switching on/off ... 35 Volume adjustment ... 36 Radio mode ... 38 Switching to radio mode ... 38 RDS function (AF, REG) ... -
Page 6: Road Safety
Thank you for deciding in favour of a Blaupunkt product. We wish you a great deal of pleasure with your new car ra- dio. Before using your car radio, please read these instructions carefully. The Blau- punkt editors are constantly working to make our instruction manuals as clear and easy to understand as possible. -
Page 7: Flip/Release Panel
Your car radio is fitted with a flip/release panel to guard against theft. Without this panel, the unit is worthless to the thief. Protect your unit from theft by taking the flip/release panel with you every time you leave the car. Do not leave the panel behind in the car, even if it is out of sight. - Page 8 There are various ways of switching the car radio on and off, as described be- low. If the car radio is correctly connected to the ignition and has not been switched off using the button 3, it is switched on/off simultaneously with the ignition. You can also switch on your car radio when the vehicle ignition is off.
- Page 9 To find out which navigation systems are compatible with your car radio, please consult your Blaupunkt dealer. If a traffic announcement is received during a telephone call or navigation- system voice output, the traffic an-...
- Page 10 nouncement will not be heard until the conversation/voice output is over. If, during a traffic announcement, a call is received or there is voice output from the navigation system, the traffic an- nouncement is relayed. The telephone conversation/voice output can then be heard when the traffic announcement is over.
- Page 11 This unit is equipped with an RDS radio receiver. Many of the receivable FM sta- tions transmit a signal that not only car- ries the programme but also additional information such as the station name and programme type (PTY). The station name appears on the dis- play as soon as it is received.
- Page 12 There are various methods available for tuning into a station. button :. Press the The unit tunes into the next receivable station. You can also tune into stations manual- Press either the Note: You can only tune into stations manual- ly if the RDS function has first been de- activated.
- Page 13 You can store the six stations with the strongest reception in the region auto- matically (only FM). The stations are stored in the FMT memory. Note: Stations that were previously stored in this memory are deleted in the process. Hold down the BND / TS button 5 for more than two seconds.
- Page 14 As soon as a station of the selected pro- gramme type is received, the unit auto- matically switches from the current sta- tion, CD or CD changer mode to the station with the selected programme type. Press the MENU button 8. button : repeatedly Press the until “PTY ON”...
-
Page 15: Radio Mode
The HiCut function improves the sound during poor radio reception (only FM). If interference occurs, the treble is au- tomatically reduced and thus also the interference level. Press the MENU button 8. button : repeatedly Press the until “HICUT” appears on the dis- play. - Page 16 Your car radio is equipped with an RDS- EON reception system. EON stands for Enhanced Other Network. When a traffic announcement (TA) is broadcast, your unit will automatically switch, within a broadcasting network, from a station which does not transmit traffic information to one that does.
- Page 17 This car radio unit has a digital voice memory in which up to four traffic an- nouncements are stored. Traffic an- nouncements are also recorded when the car radio is switched off. The TIM function must be activated. Danger of damage to the remote antenna at the car wash.
- Page 18 TIM standby continues for two hours after the car radio has been switched off and can be extended to 24 hours. Activate the TIM function. Switch the car radio off using but- ton 3. “TIM 2H” appears on the display. Hold down the TIM button @ for more than two seconds while “TIM 2H”...
-
Page 19: Setting The Scanning Time
Press one of the buttons on the ar- row block : to select the next or previous track. button : is pressed once, If the the current track is played again from the beginning. For a fast search backwards or forwards buttons : pressed keep the until the fast search backwards or... - Page 20 more than two seconds until the desired elements appear on the display. If you want to receive traffic an- nouncements whilst listening to a CD, press the TIM @ button for more than two seconds. Traffic announcement priority is active when the traffic-jam symbol lights up on the display.
- Page 21 Note: Information on handling CDs, inserting CDs and operating the CD changer can be found in the operating instructions accompanying your CD changer. Press the CD•C button ? repeat- edly until “CHANGER” appears on the display. Playback begins with the first CD the CD changer recognises.
- Page 22 ers first play all the tracks on a CD in random selection before moving to the next CD in the changer. Press the button 5 MIX > until “MIX OFF” appears briefly on the display and MIX goes out. To listen in briefly to all the tracks on all inserted CDs in ascending order, hold down the OK button ;...
- Page 23 buttons : to select Use the “CDC NAME”. button :. Press the Hold down the MENU button 8. A beep sounds at the end of four sec- onds and “DELETE NAME” ap- pears on the display. Release the MENU button 8. The CD name is now deleted.
- Page 24 button :. Press the The time appears on the display. The minutes flash and can now be set. Set the minutes using the tons :. Once the minutes have been set, button :. The hours press the now flash. Set the hours using the tons :.
-
Page 25: Tone And Volume Balance
You can adjust the tone and volume balance separately for every audio source (radio, CD, CD changer, Aux and traffic announcements). Note: Adjustments to tone and volume bal- ance for traffic announcements can only be made during a traffic announcement. Press the AUD / LD = button. -
Page 26: Loudness
Loudness means the bass and treble are increased to a comfortable level at lower volume levels. Press the AUD / LD = button for approx two seconds. When loudness is activated, LD lights up on the display. The loudness level can be raised in steps of one to six. - Page 27 In order to switch on the equalizer, hold down the DEQ < button until EQ lights up on the display and “EQ ON” appears briefly. To switch off the equalizer, hold down the DEQ < button until EQ goes out on the display and “EQ OFF”...
- Page 28 Commence settings at mid and treble section and complete them in the bass section. Sound impression/problem Bass reproduction too weak Impure bass Booming Disagreeable pressure Sound very dominant, aggressive, no stereo effect Muffled reproduction Low transparency No instrumental brilliance What to do Raise bass with frequency: 50 to 100 Hz, level: +4 to +6...
-
Page 29: External Audio Sources
Your car radio has one TMC output for connection to Blaupunkt navigation systems. Your Blaupunkt dealer will tell you which nav- igation systems can be used with your car radio. When a navigation system is connect- ed and a TMC station received, “TMC”... -
Page 30: Guarantee
Not covered by such guar- antee are damage caused by wear and tear, improper use or commercial use. In order to claim the Blaupunkt manu- facturer's guarantee, please send in the defective unit along with proof of pur- chase to the central Blaupunkt after- sales department in your country.
