Controls & Components - Grizzly G0890 Owner's Manual

Controls &
Components
To reduce your risk of
serious injury, read this
entire
using machine.
Refer to Figure 1 and the following descriptions to
become familiar with the basic controls and com-
ponents of this machine. Understanding these
items and how they work will help you understand
the rest of the manual and stay safe when operat-
ing this machine.
E
D

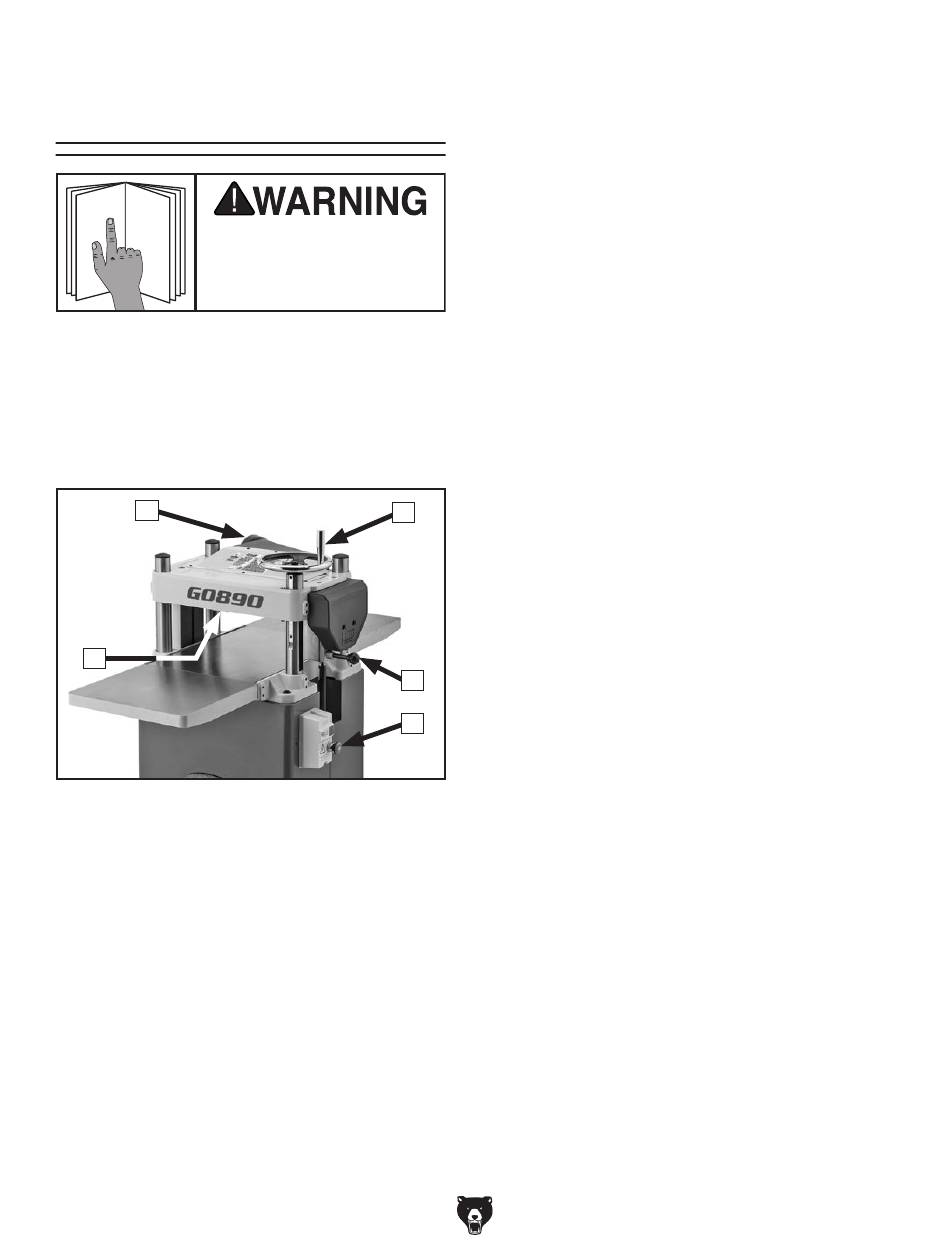

Figure 1. Main controls and components.
-4-
manual BEFORE
A
B
C
A. Headstock Height Handwheel: Raises and
lowers headstock to accommodate different
workpiece thicknesses. One complete revolu-
tion moves the headstock approximately
(4mm).
B. Feed Rate Control Knob: Selects 28 FPM
feed rate when pushed in and 16 FPM feed
rate when pulled out.
C. Magnetic ON/OFF Switch:
— Green start button turns motor ON when
pressed.
— Red Stop button turns motor OFF when
pressed; for safety purposes, this button
will remain depressed and prevent restart-
ing until reset. Reset by rotating clockwise
until it pops out.
D. Depth Limiter: Limits depth of cut to a maxi-
mum of ⁄ " at full width.
1
8
E. Dust Port: Connects to a dust collection
system to extract shavings and dust during
operation. Dust port size 4".
G0890/G0891 (Mfd. Since 06/19)
⁄ "
5
32
