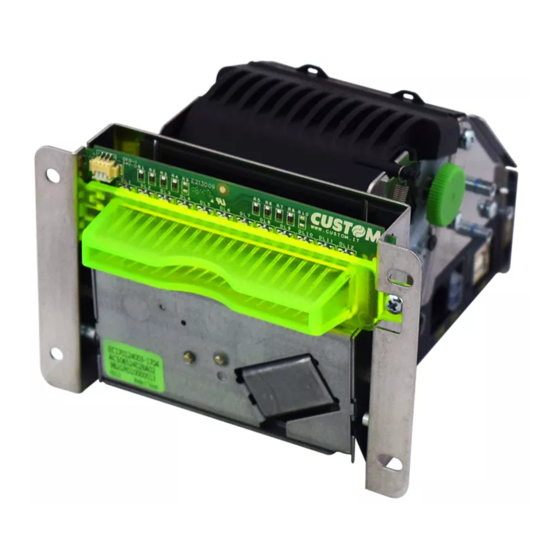

Custom Audio Electronics TG2460H Command Manual

Hide thumbs Also See for TG2460H:

Advertisement

Quick Links

Download this manual
TG2460H
TG2480H
TL60
TL80
COMMANDS MANUAL

Advertisement

loading

Related Manuals for Custom Audio Electronics TG2460H

Summary of Contents for Custom Audio Electronics TG2460H

  • Page 1 COMMANDS MANUAL TG2460H TG2480H TL60 TL80...
  • Page 2 CUSTOM S.p.A. GENERAL SAFETy INFORMATION THE CE MARK AFFIXED TO your attention is drawn to the following THE PRODUCT CERTIFy Via Berettine 2/B actions that could compromise the char- THAT THE PRODUCT SAT- 43010 Fontevivo (PARMA) - Italy acteristics of the product: ISFIES THE BASIC SAFETy Tel.
  • Page 3 INTRODUCTION TG2460 EMULATION ESC/POS™ EMULATION ALIGNMENT...
  • Page 5 INTRODUCTION Each command reported in this manual is described as shown in the following picture. In the irst heading ield is reported the hexadecimal command value and the ASCII command value. In the second heading ield reported the command func- tion.
  • Page 6 The ields shown in the scheme of the previous igure have the following meaning: [Format] ASCII, hexadecimal and decimal command value. [Range] Limits of the values the command and its variables can take [Description] Description of command function [Notes] Additional information about command use and settings . [Default] Default value of the command and its variables.
  • Page 7 PAPER SPECIFICATIONS NOTE: All the dimensions shown in the following igures are in millimetres. TG2460H TG2480H 10,5 12,5 PAPER WIDTH = 60 PAPER WIDTH = 80 │ 7 Introduction...
  • Page 8 TL60 TL80 16,5 PAPER WIDTH = 60 PAPER WIDTH = 80 8 │ Introduction...
  • Page 9 TG2460 EMULATION...
  • Page 10 COMMANDS LISTED IN ALPHANUMERIC ORDER 0x08 ......<BS>........59 0x09 .
  • Page 11 0x1B 0x69......<ESC i> ........73 0x1B 0x74.
  • Page 12 0x1D 0x72 ......<GS r> ........54 0x1D 0x77 .
  • Page 13 COMMANDS LISTED By FUNCTION BARCODE COMMANDS 0x1D 0x48 ......<GS H>........19 Select printing position of Human Readable Interpretation (HRI) 0x1D 0x66 .
  • Page 14 0x1D 0x21 ......<GS !> ........38 Select character size 0x1D 0x42 .
  • Page 15 0x1B 0x32......<ESC 2> ........56 Select 1/6-inch line spacing 0x1B 0x33.
  • Page 16 0x1D 0x5E ......<GS ^> ........72 Execute macro MECHANISM CONTROL COMMANDS 0x1B...
  • Page 17 0x1D 0x49 ......<GS I> ........86 Transmit printer ID 0x1D 0x50 .
  • Page 18 18 │ TG2460 emulation...
  • Page 19 BARCODE COMMANDS <GS H> 0x1D 0x48 Select printing position of Human Readable Interpretation (HRI) Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 3 48 ≤ n ≤ 51 [Description] Selects the printing position of HRI characters when printing bar code.
  • Page 20 <GS f> 0x1D 0x66 Select font for HRI characters Valid for TG2460H TL60 [Format] ASCII Decimal [Range] n = 0, 1, 48, 49 [Description] Selects a font for the HRI characters used when printing a bar code. n selects a font from the following table:...
  • Page 21 <GS h> 0x1D 0x68 Set bar code height Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 1 ≤ n ≤ 255 [Description] Sets the height of the bar code. n speciies the number of dots in the vertical direction. [Notes]...
  • Page 22 <GS k> 0x1D 0x6B Print bar code Valid for TG2460H TL60 [Format 1] ASCII <data> NUL <data> 00 Decimal <data> 0 [Format 2] ASCII <data> <data> Decimal <data> [Range] Formato 1 0 ≤ m ≤ 6 Formato 2 65 ≤ m ≤ 73 [Description] Selects a bar code system and prints the bar code.
  • Page 23 Formato 2 BARCODE No. OF REMARKS SySTEM CHARACTERS 11 ≤ n ≤ 12 48 ≤ d ≤ 57 UPC-A 11 ≤ n ≤ 12 48 ≤ d ≤ 57 UPC-E 12 ≤ n ≤ 13 48 ≤ d ≤ 57 EAN13 (JAN) 7 ≤...
  • Page 24 When to use CODE93: • The printer prints an HRI character (o) as a start character at the beginning of the HRI character string. • The printer prints an HRI character (o) as a stop character at the end of the HRI character string. •...
  • Page 25 <GS w> 0x1D 0x77 Set bar code width Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 2 ≤ n ≤ 6 [Description] Sets the horizontal size of the bar code. n speciies the bar code width as follows: MODULE WIDTH (mm) 0.25...
  • Page 26 26 │ TG2460 emulation...
  • Page 27 CHARACTERS COMMANDS <ESC SP> 0x1B 0x20 Set character right-side spacing Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Sets spacing to right of character at [ n x horizontal or vertical motion units]. [Notes] •...
  • Page 28 <ESC !> 0x1B 0x21 Set print mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Selects the print mode using n (see following tables): OFF/ON Decimal FUNCTION Character font A selected. Character font B selected.
  • Page 29 [Default] n = 0 [Reference] 0x1B 0x45, 0x1B 0x2D, 0x1B 0x34, 0x1D 0x21 [Example] │ 29 TG2460 emulation...
  • Page 30 <ESC -> 0x1B 0x2D Turn underline mode on/off Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 2 48 ≤ n ≤ 50 [Description] Turns underline mode on or off, based on the following values of n:...
  • Page 31 <ESC 4> 0x1B 0x34 Set / reset script mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 1 48 ≤ n ≤ 49 [Description] Turns script mode on or off, based on the following values of n:...
  • Page 32 <ESC E> 0x1B 0x45 Select bold mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns bold mode On or Off. • When the LSB of n is 0, bold mode is turned off.
  • Page 33 <ESC G> 0x1B 0x47 Select double-strike mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns double-strike mode On or Off. • When the LSB of n is 0, double-strike mode is turned off.
  • Page 34 <ESC R> 0x1B 0x52 Select international character set Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 12 [Description] Selects the international character set by setting n as in the following table: CHARACTERS U.S.A. “ France à...
  • Page 35 <ESC V> 0x1B 0x56 Set print mode rotated by 90° Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 1 48 ≤ n ≤ 49 [Description] Enable / disable print mode rotated by 90°. n is used as follows:...
  • Page 36 <ESC t> 0x1B 0x74 Select character code table Valid for TG2460H TL60 [Format] ASCII Decimal [Range] n = 0, 19, 255 [Description] Selects a page n from the character code table, as follows: PAGE 0 (PC437 [U.S.A., Standard Europe]) 19 (PC858 for Euro symbol at position 213) U.D.P.
  • Page 37 <ESC {> 0x1B 0x7B Select upside-down printing mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns upside-down printing mode on/off. • When the LSB of n is 0, upside-down printing mode is turned off.
  • Page 38 <GS !> 0x1D 0x21 Select character size Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Selects character height and width, as follows: • Bits 0 to 3 : character height selection (see table 2).
  • Page 39 <GS B> 0x1D 0x42 Turn white / black reverse printing on/off Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns white/black reverse printing mode on or off. • When the LSB of n is 0, white/black reverse printing is turned off.
  • Page 40 <GS ~> 0x1D 0x7E Set superscript / subscript Valid for TG2460H TL60 [Format] ASCII Decimal [Range] n = 0, 1, 48, 49 [Description] Sets superscript or subscript character position. n speciies the position as follows: FUNCTION 0, 48 Subscript character position...
  • Page 41 PRINTING COMMANDS <LF> 0x0A Print and line feed Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Prints the data in the buffer and feeds one line, based on the current line spacing. [Notes] This command sets the print position at the beginning of the line.
  • Page 42 <CR> 0x0D Print and line feed Valid for TG2460H TL60 [Format] ASCII Decimal [Description] When autofeed is 0x0D enabled, this command functions in the same way as 0x0A, otherwise it is ignored. [Notes] This command sets the print position at the beginning of the line.
  • Page 43 <ESC J> 0x1B 0x4A Print and feed paper Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Prints the data in the print buffer and feeds the paper [ n * (vertical or horizontal motion unit) inches.
  • Page 44 <ESC d> 0x1B 0x64 Print and feed paper n lines Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Prints the data in the print buffer and feeds the paper n lines. [Notes] • This command sets the print starting position at the beginning of the line.
  • Page 45 <ESC x> 0x1B 0x78 Select speed / quality mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 2 [Description] Selects speed / quality mode. FUNCTION Draft mode (high speed) Normal mode High quality (low speed) [Notes] •...
  • Page 46 <GS |> 0x1D 0x7C Set printing density Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 4 48 ≤ n ≤ 52 [Description] Sets the printing density. n speciies the printing density as follows: PRINTING DENSITy 0, 48...
  • Page 47 STATUS COMMANDS <DLE EOT> 0x10 0x04 Transmission of status in real time Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 1 ≤ n ≤ 4 n =17 20 ≤ n ≤ 21 [Description] Transmits in real time the selected status of the printer speciied by n according to the following...
  • Page 48 [Example] n=1: Printer status OFF/ON Decimal FUNCTION RESERVED RESERVED RESERVED On-line Off-line RESERVED RESERVED RESERVED RESERVED n=2: Off-line status OFF/ON Decimal FUNCTION RESERVED RESERVED Print head down (no paper jam) Print head up (paper jam) Paper is not being fed by FEED button Paper is being fed by FEED button RESERVED No paper end stop...
  • Page 49 n=3: Error status Off/On Decimal FUNCTION RESERVED RESERVED RESERVED No auto-cutter error Auto-cutter error RESERVED No irreversible error Irreversible error No auto-recoverable error Auto-recoverable error RESERVED n=4: Paper roll sensor status OFF/ON Decimal FUNCTION RESERVED RESERVED Paper is detected by the near paper end sensor 2, 3 Paper end sensor not present or near paper end RESERVED...
  • Page 50 n=17: Paper status OFF/ON Decimal FUNCTION RESERVED RESERVED Motor not running Motor running RESERVED RESERVED Paper in Paper end RESERVED RESERVED n=20: Full Status ( 6 bytes) 1° Byte = 0x10 (DLE) 2° Byte = 0x0F 3° Byte = Paper Status OFF/ON Decimal FUNCTION...
  • Page 51 4° Byte = User Status OFF/ON Decimal FUNCTION Print head down Print head up Cover down Cover up RESERVED Motor running (paper run) Motor not running (paper stand still) RESERVED FEED key not pressed FEED key pressed PRINT key not pressed PRINT key pressed RESERVED 5°...
  • Page 52 6° Byte = Unrecoverable Error Status OFF/ON Decimal FUNCTION No auto-cutter error Auto-cutter error RESERVED No RAM error RAM error No EEPROM error EEPROM error RESERVED RESERVED RESERVED RESERVED 52 │ TG2460 emulation...
  • Page 53 <ESC v> 0x1B 0x76 Transmit paper status Valid for TG2460H TL60 [Format] ASCII Decimal [Range] [Description] Transmits the current paper sensor status upon receiving this command. [Notes] This command is executed immediately, even when the reception buffer is full (Busy ).
  • Page 54 <GS r> 0x1D 0x72 Transmit status Valid for TG2460H TL60 [Format] ASCII Decimal [Range] n = 1, n = 49 [Description] Transmits the status speciied by n as follows: FUNCTION 1, 49 Transmits paper sensor status (same as 0x1B 0x76)
  • Page 55 LINE SPACING COMMANDS <ESC 0> 0x1B 0x30 Select 1/8-inch line spacing Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Selects 1/8-inch line spacing. [Notes] [Default] [Reference] 0x1B 0x32, 0x1B 0x33 [Example] │ 55 TG2460 emulation...
  • Page 56 <ESC 2> 0x1B 0x32 Select 1/6-inch line spacing Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Selects 1/6 inch line spacing. [Notes] [Default] [Reference] 0x1B 0x30, 0x1B 0x33 [Example] 56 │ TG2460 emulation...
  • Page 57 <ESC 3> 0x1B 0x33 Set line spacing using minimum units Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Sets the line spacing at [ n * (vertical or horizontal motion unit)] inches. [Notes] • Horizontal and vertical motion units are speciied by the command 0x1D 0x50. Changing the hori- zontal or vertical motion unit does not affect the current line spacing.
  • Page 58 58 │ TG2460 emulation...
  • Page 59 PRINTING POSITION COMMANDS <BS> 0x08 Moving back of one character Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Moves print position to previous character. [Notes] This command can put two characters at the same position. [Default] [Reference] [Example] │ 59...
  • Page 60 <HT> 0x09 Horizontal tabs Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Moves the print position to the next horizontal tab position. [Notes] • This command is ignored if the next horizontal tab position has not been set. • If the next horizontal tab is outside the print area, the printer will print the entire contents of the print buffer, then proceed with the processing of the horizontal tabs from the beginning of the following line.
  • Page 61 <CAN> 0x18 Cancel print data buffer Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Deletes all the print data in the current print buffer. [Notes] This command sets the print position at the beginning of the line. [Default] [Reference] [Example] │...
  • Page 62 <ESC D> 0x1B 0x44 Set horizontal tab position Valid for TG2460H TL60 [Format] ASCII n1...nk NUL n1...nk 00 Decimal n1...nk 0 [Range] 1 ≤ n ≤ 255 0 ≤ k ≤ 32 [Description] Sets the horizontal tabs. • n speciies the number of columns for setting a horizontal tab from the beginning of the line.
  • Page 63 <ESC \> 0x1B 0x5C Set relative print position Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ nL ≤ 255 0 ≤ nH ≤ 255 [Description] Sets the print starting position based on the current position by using the horizontal or vertical motion unit.
  • Page 64 <ESC a> 0x1B 0x61 Select justiication Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 2 48 ≤ n ≤ 50 [Description] Aligns all the data in one line in the position speciied. n selects the type of justiication as follows:...
  • Page 65 <GS L> 0x1D 0x4C Set left margin Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ nL, nH ≤ 255 [Description] Sets the left margin. The left margin is set at [(nL + nH * 256) * (horizontal motion unit)] inches.
  • Page 66 <GS W> 0x1D 0x57 Set printing area width Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ nL, nH ≤ 255 [Description] Sets the printing area width to the area speciied by nL and nH. The left margin is set at [(nL + nH * 256) * (horizontal motion unit)] inches.
  • Page 67 BIT-IMAGE COMMANDS <ESC *> 0x1B 0x2A Set bit image mode Valid for TG2460H TL60 [Format] ASCII d1...dk d1...dk Decimal d1...dk [Range] m = 0, 1, 32, 33 0 ≤ nL ≤ 255 0 ≤ nH ≤ 1 0 ≤ d ≤ 255...
  • Page 68 The relationship between the bit image and the dots to be printed is as follows: 8 dot image 24 dot image Bit- Bit- image image data data Print data Print data [Default] [Reference] [Example] 68 │ TG2460 emulation...
  • Page 69 0x1B 0xFA Print graphic bank (448 * 584 dots) Valid for TG2460H TL60 [Format] ASCII 0xFA Decimal [Range] 1 ≤ n ≤ 2 0 ≤ xH, xL, yH, yL ≤ 255 [Description] Prints the graphics bank from lash or ram.
  • Page 70 70 │ TG2460 emulation...
  • Page 71 MACRO FUNCTION COMMANDS <GS :> 0x1D 0x3A Start / end macro of deinition Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Starts or ends macro deinition. [Notes] • Macro deinition starts when this command is received during normal operation. • When the command 0x1D 0x5E is received during macro deinition, the printer ends the macro deinitions and clears all deinitions.
  • Page 72 <GS ^> 0x1D 0x5E Execute macro Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ r, t ≤ 255 0 ≤ m ≤ 1 [Description] Executes a macro. • r speciies the number of times to execute the macro.
  • Page 73 MECHANISM CONTROL COMMANDS <ESC i> 0x1B 0x69 Total cut Valid for TG2460H TL60 [Format] ASCII Decimal [Description] This command enables cutter operation; if there is no cutter, a disabling lag is set any subsequent cutting commands will be ignored. [Notes] The printer waits until all the paper movement commands have been completed before executing total cut.
  • Page 74 0x1C 0xC0 0x34 Total cut and automatic paper moving back Valid for TG2460H TL60 [Format] ASCII 0xC0 Decimal [Description] This command enables cutter operation and executes a total cut and automatic paper moving back; if there is no cutter, a disabling lag is set any subsequent cutting commands will be ignored.
  • Page 75 ANTI-JAMMING COMMANDS 0x1C 0xC1 Enable/disable automatic anti-jamming movement Valid for TG2460H [Format] ASCII 0xC1 Decimal [Range] n = 0x00, 0x01, 0x30, 0x31 [Description] This command enables or disables the automatic anti-jamming movement that must be performed when the inspection door is lifted.
  • Page 76 0x1D 0xDC Perform the anti-jamming movement Valid for TG2460H [Format] ASCII 0xDC Decimal [Range] [Description] This command performs the anti-jamming movement regardless of the settings of the command 0x1C 0xC1 and the position of the inspection door. [Notes] [Default] [Reference]...
  • Page 77 MISCELLANEOUS COMMANDS <ESC => 0x1B 0x3D Select device Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Selects the device to which the host computer sends data, using n as follows: OFF/ON Decimal FUNCTION Printer disabled...
  • Page 78 <ESC @> 0x1B 0x40 Inizialize the printer Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Clears the data in the print buffer and resets the printer mode to the mode that was in effect when the power was turned on.
  • Page 79 <ESC c 5> 0x1B 0x63 0x35 Enable / disable panel keys Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Enables or disables the front panel keys. • When the LSB of n is 0, the panel keys are enabled.
  • Page 80 0x1B 0xFF Receive and store logos in lash Valid for TG2460H TL60 [Format] ASCII d0...dn d0...dn Decimal d0...dn [Range] 0 ≤ nL, nH ≤ 255 1 ≤ m ≤ 2 0 ≤ d0, dn ≤ 255 [Description] • Received [nL + (nH * 256)] * 2 bytes and store in the lash.
  • Page 81 In the following igure is reproduced the logotype enlargement in the zone indicated by the arrow to deine d0...dn In this example; d0=FF; d1=03; d2=FC; d3=0F; ... Then send this command to the printer: 0x1B 0xFF 0x02 0xF8 0x7F 0xFF 0 x 03 0xFC 0x0F...
  • Page 82 <GS C 0> 0x1D 0x43 0x30 Select counter print mode Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 5 m = 0, 1, 2, 48, 49, 50 [Description] Selects a print mode for the serial number counter.
  • Page 83 <GS C 1> 0x1D 0x43 0x31 Select count mode (A) Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ aL, aH ≤ 255 0 ≤ bL, bH ≤ 255 0 ≤ n, r ≤ 255 [Description] Selects a count mode for the serial number counter.
  • Page 84 <GS C 2> 0x1D 0x43 0x32 Select counter Valid for TG2460H TL60 [Format] ASCII Decimal [Range] 0 ≤ nL, nH ≤ 255 [Description] Sets the serial number counter value. • nL and nH determine the value of the serial number counter set by [nL + (nH * 256)].
  • Page 85 <GS C ;> 0x1D 0x43 0x3B Select count mode (B) Valid for TG2460H TL60 [Format] ASCII ; sb Decimal [Range] 0 ≤ sa, sb, sc ≤ 65535 0 ≤ sn, sr ≤ 255 These values are all character strings. [Description] Selects a count mode for the serial number counter and speciies the value of the counter.
  • Page 86 [Range] 1 ≤ n ≤ 3, 49 ≤ n ≤ 51 [Description] Transmits the printer ID speciied by n as follows: PRINTER ID SPECIFICATION 0xA7 (TG2460H) 1, 49 Printer model ID 0xAD (TL60) 2, 50 Type ID Refer to table below...
  • Page 87 [Default] [Reference] [Example] │ 87 TG2460 emulation...
  • Page 88 <GS P> 0x1D 0x50 Set horizontal and vertical motion units Valid for TG2460H TL60 [Format] ASCII Decimal [Range] x = 100, 200 y = 100, 200 [Description] Sets the horizontal and vertical motion units at 1/x inches and 1/y inches, respectively.
  • Page 89 <GS c> 0x1D 0x63 Print counter Valid for TG2460H TL60 [Format] ASCII Decimal [Description] Sets the serial counter value in the print buffer and increments or decrements the counter value. [Notes] • After setting the current counter value in the print buffer as print data (a character string), the printer counts up or down based on the count mode set.
  • Page 90 90 │ TG2460 emulation...
  • Page 91 ESC/POS™ EMULATION...
  • Page 92 COMMANDS LISTED IN ALPHANUMERIC ORDER 0x09 ......<HT>........151 0x0A .
  • Page 93 0x1B 0x69......<ESC i> ........159 0x1B 0x6D .
  • Page 94 0x1D 0x50 ......<GS P>........174 0x1D 0x57 .
  • Page 95 COMMANDS LISTED By FUNCTION BARCODE COMMANDS 0x1D 0x28 0x6B .....<GS (> ........101 Print two-dimensional barcode 0x1D 0x28 0x6B [fn 065] .
  • Page 96 0x1B 0x45......<ESC E>........120 Select emphasized mode 0x1B 0x47.
  • Page 97 0x1B 0x64......<ESC d> ........136 Print and feed paper n rows 0x1D 0x7C .
  • Page 98 0x1D 0x4C ......<GS L> ........157 Set left margin 0x1D 0x57 .
  • Page 99 0x1C 0xB0 ..............170 Ticket length reading 0x1C 0xC0 0x34 .
  • Page 100 100 │ ESC/POS™ emulation...
  • Page 101 BARCODE COMMANDS <GS (> 0x1D 0x28 0x6B Print two-dimensional barcode TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312) TL80 (model without simpliied chinese font GB2312)
  • Page 102 <GS (> 0x1D 0x28 0x6B [fn 065] Specify encoding scheme of QRcode barcode TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312) TL80 (model without simpliied chinese font GB2312)
  • Page 103 <GS (> 0x1D 0x28 0x6B [fn 066] Specify dot size of the module of the QRcode barcode TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312)
  • Page 104 <GS (> 0x1D 0x28 0x6B [fn 067] Specify QRcode barcode size TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312) TL80 (model without simpliied chinese font GB2312)
  • Page 105 <GS (> 0x1D 0x28 0x6B [fn 069] Specify the error correction level of the QRcode barocde TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312) TL80 (model without simpliied chinese font GB2312)
  • Page 106 <GS (> 0x1D 0x28 0x6B [fn 080] Store the QRcode barcode data in the barcode save area TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312)
  • Page 107 <GS (> 0x1D 0x28 0x6B [fn 081] Prints the QRcode barcode data TG2460H (model without simpliied chinese font GB2312) Valid for TG2480H (model without simpliied chinese font GB2312) TL60 (model without simpliied chinese font GB2312) TL80 (model without simpliied chinese font GB2312)
  • Page 108 <GS H> 0x1D 0x48 Select printing position of Human Readable Interpretation (HRI) characters Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 3 48 ≤ n ≤ 51 [Description] Selects the printing position of HRI characters when printing bar codes. n selects the printing posi-...
  • Page 109 <GS h> 0x1D 0x68 Set bar code height Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 1 ≤ n ≤ 255 [Description] Sets the height of the bar code. n speciies the number of vertical dots. [Notes] [Default] n = 162 (20.25 mm)
  • Page 110 <GS k> 0x1D 0x6B Print barcode Valid for TG2460H TG2480H TL60 TL80 [Format 1] ASCII Decimal [Format 2] ASCII Decimal [Range] Formato 1 0 ≤ m ≤ 20 Formato 2 65 ≤ m ≤ 90 [Description] Selects a bar code system and prints the bar code. m selects a bar code system as follows:...
  • Page 111 Formato 2 BARCODE No. OF REMARKS SySTEM CHARACTERS 11 ≤ n ≤ 12 48 ≤ d ≤ 57 UPC-A 11 ≤ n ≤ 12 48 ≤ d ≤ 57 UPC-E 12 ≤ n ≤ 13 48 ≤ d ≤ 57 EAN13 (JAN) 7 ≤...
  • Page 112 When CODE93 is used the printer : • prints an HRI character ( o ) as a start character at the beginning of the HRI character string • prints an HRI character ( o ) as a stop character at the end of the HRI character string. •...
  • Page 113 <GS w> 0x1D 0x77 Set barcode width Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0x1 ≤ n ≤ 0x6 0x81 ≤ n ≤ 0x86 [Description] Sets the horizontal size of the bar code. n speciies the bar code width (referred to the narrow bar)
  • Page 114 114 │ ESC/POS™ emulation...
  • Page 115 CHARACTERS COMMANDS <ESC SP> 0x1B 0x20 Set right-side character spacing Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Sets the character spacing for the right side of the character to [n x horizontal or vertical motion units].
  • Page 116 <ESC !> 0x1B 0x21 Select print modes Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Selects print modes using n (see table below): 11/15 15/20 OFF/ON Decimal FUNCTION Character font A selected...
  • Page 117 [Default] n = 0 [Reference] 0x1B 0x2D, 0x1B 0x34, 0x1B 0x45, 0x1D 0x21 [Example] │ 117 ESC/POS™ emulation...
  • Page 118 <ESC -> 0x1B 0x2D Turn underline mode on/off Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 2 48 ≤ n ≤ 50 [Description] Turns underline mode on or off, based on the following values of n:...
  • Page 119 <ESC 4> 0x1B 0x34 Set / reset italic mode Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 1 48 ≤ n ≤ 49 [Description] Turns italic mode on or off, based on the following values of n:...
  • Page 120 <ESC E> 0x1B 0x45 Select emphasized mode Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns emphasized mode on/off. • When the LSB of n is 0, the emphasized mode is off.
  • Page 121 <ESC G> 0x1B 0x47 Select double-strike mode Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns double-strike mode on or off. • When the LSB of n is 0, the double-strike mode is off.
  • Page 122 <ESC R> 0x1B 0x52 Select international character set Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 10 [Description] Selects the international character set n according to the table below: CHARACTERS U.S.A. “ France à...
  • Page 123 <ESC V> 0x1B 0x56 Select print mode 90° turned Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 1 48 ≤ n ≤ 49 [Description] Turns 90° rotation mode on/off. n is used as follows:...
  • Page 124 <ESC t> 0x1B 0x74 Select character code table Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] n = 0, 2, 3, 4, 5, 17, 18, 19, 255 [Description] Selects a page n from the character code table, as follows: PAGE 0 (PC437 [U.S.A., Standard Europe])
  • Page 125 <ESC {> 0x1B 0x7B Set/cancel upside-down character printing Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns upside-down printing mode on or off. • When the LSB of n is 0, the upside-down printing mode is off.
  • Page 126 TL60 TL80 [Format] ASCII 0xC1 Decimal [Range] TL60, TG2460H n = 0, 1, 2, 48, 49, 50 TL80, TG2480H n = 0, 1, 48, 49 [Description] Sets cpi mode based on the following values of n: TL60, TG2460H PRINTING MODE...
  • Page 127 <GS !> 0x1D 0x21 Select character size Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Selects character height and width, as follows: • Bits 0 to 3: to select character height (see table 2).
  • Page 128 <GS B> 0x1D 0x42 Turn white/black reverse printing mode on/off Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Turns white/black reverse printing mode on or off. • When the LSB of n is 0, white/black reverse printing is turned off.
  • Page 129 LINE SPACING COMMANDS <ESC 0> 0x1B 0x30 Select 1/8-inch line spacing Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] Selects 1/8-inch line spacing. [Notes] [Default] [Reference] 0x1B 0x32, 0x1B 0x33 [Example] │ 129 ESC/POS™ emulation...
  • Page 130 <ESC 2> 0x1B 0x32 Select 1/6-inch line spacing Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] Selects 1/6-inch line spacing. [Notes] [Default] [Reference] 0x1B 0x33 [Example] 130 │ ESC/POS™ emulation...
  • Page 131 <ESC 3> 0x1B 0x33 Set line spacing Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Sets line spacing to [ n × (vertical or horizontal motion unit)] inches. [Notes] • The horizontal and vertical motion unit are speciied by 0x1D 0x50. Changing the horizontal or vertical motion unit does not affect the current line spacing.
  • Page 132 132 │ ESC/POS™ emulation...
  • Page 133 PRINTING COMMANDS <LF> 0x0A Print and line feed Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] Prints the data in the buffer and feeds one line based on the current line spacing. [Notes] • Sets the print position to the beginning of the line.
  • Page 134 <CR> 0x0D Print and carriage return Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] When autofeed is “CR enabled”, this command functions in the same way as 0x0A, otherwise it is disregarded. [Notes] Sets the print position to the beginning of the line.
  • Page 135 <ESC J> 0x1B 0x4A Print and feed paper Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Prints the data in the print buffer and feeds the paper [ n × (vertical or horizontal motion unit)] inches.
  • Page 136 <ESC d> 0x1B 0x64 Print and feed paper n rows Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 255 [Description] Prints the data in the print buffer and feeds the paper n rows. [Notes] •...
  • Page 137 <GS |> 0x1D 0x7C Set printing density Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 8 48 ≤ n ≤ 56 [Description] Sets printing density. n speciies printing density as follows: PRINTING DENSITy 0, 48...
  • Page 138 138 │ ESC/POS™ emulation...
  • Page 139 STATUS COMMANDS <DLE EOT> 0x10 0x04 Real-time status transmission Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 1 ≤ n ≤ 4 n = 17, 20, 21 [Description] Transmits the selected printer status speciied by n in real time according to the following parameters:...
  • Page 140 [Example] n=1: Printer status OFF/ON Decimal FUNCTION Not used. Fixed to Off Not used. Fixed to On Not used. Fixed to Off On-line Off-line Not used. Fixed to On RESERVED FEED key released FEED key pressed Not used. Fixed to Off n=2: Off-line status OFF/ON Decimal...
  • Page 141 n=3: Error status OFF/ON Decimal FUNCTION Not used. Fixed to Off Not used. Fixed to On Not used. Fixed to Off No auto-cutter error Auto-cutter error Not used. Fixed to On No unrecoverable error Unrecoverable error No auto-recoverable error Auto-recoverable error Not used.

  • Page 142: Reserved

    n=17: Print status OFF/ON Decimal FUNCTION RESERVED RESERVED Paper drag motor off Paper drag motor on RESERVED RESERVED Paper present Paper absent RESERVED RESERVED n=20: FULL status (6 bytes) 1st Byte = 0x10 (DLE); 2nd Byte = 0x0F 3rd Byte = Paper status OFF/ON Decimal FUNCTION...
  • Page 143 4th Byte = User status OFF/ON Decimal FUNCTION No error printing head down Printing head up error Cover closed Cover opened No spooling Spooling Drag paper motor off Drag paper motor on RESERVED FEED key released FEED key pressed PRINT key released PRINT key pressed RESERVED 5th Byte = Recoverable error status...

  • Page 144: Ram Error

    Cutter error (*) RESERVED RAM ok RAM error RESERVED RESERVED RESERVED RESERVED RESERVED * This bit is not set in the TG2460H printers without cutter. n=21: transmit printer ID 1st byte= (refer to command 0x1D 0x49) 144 │ ESC/POS™ emulation...
  • Page 145 <ESC v> 0x1B 0x76 Transmit paper sensor status Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] When this command is received, transmit the current status of the paper sensor. The status to be transmitted is shown in the table below:...
  • Page 146 <GS r> 0x1D 0x72 Transmit status Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] n =1, 49 [Description] Transmits the status speciied by n as follows: FUNCTION 1, 49 Transmits paper sensor status (as for 0x1B 0x76). Paper sensor status (n = 1, 49)
  • Page 147 BIT-IMAGE COMMANDS <ESC *> 0x1B 0x2A Select bit image mode Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII d1...dk d1...dk Decimal d1...dk [Range] m = 0, 1, 32, 33 0 ≤ nL ≤ 255 0 ≤ nH ≤ 3 0 ≤ d ≤ 255...
  • Page 148 • The relationship between the image data and the dots to be printed is as follows: 8-dot bit image 24-dot bit image Bit- Bit- image image data data Print data Print data [Default] [Reference] [Example] 148 │ ESC/POS™ emulation...
  • Page 149 <GS *> 0x1D 0x2A Dowload logo extra Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII monochromatic BMP monochromatic BMP Decimal monochromatic BMP [Range] 0 ≤ m ≤ 1 [Description] Storages a logo in memory place speciied by m. The following table contains a description of the contents of a BMP ile.
  • Page 150 Bitmap data Size of the bitmap data in bytes. This number must be 0022h 1 dword Size rounded to the next 4 byte boundary. 0026h HResolution 1 dword Horizontal resolution expressed in pixel per meter. 002Ah VResolution 1 dword Vertical resolution expressed in pixels per meter. Number of colours used by this bitmap.
  • Page 151 PRINTING POSITION COMMANDS <HT> 0x09 Horizontal tab Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] Moves the print position to the next horizontal tab position. [Notes] • Ignored unless the next horizontal tab position has been set..
  • Page 152 <ESC $> 0x1B 0x24 Set absolute print position Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ nL ≤ 255 0 ≤ nH ≤ 255 [Description] Sets the distance from the beginning of the line to the position at which subsequent characters are to be printed.
  • Page 153 <ESC D> 0x1B 0x44 Set horizontal tab position Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII n1...nk n1...nk Decimal n1...nk [Range] 1 ≤ n ≤ 255 0 ≤ k ≤ 32 [Description] Sets horizontal tab positions • n speciies the column number for setting a horizontal tab position calculated from the beginning of the line.
  • Page 154 <ESC \> 0x1B 0x5C Set relative print position Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ nL ≤ 255 0 ≤ nH ≤ 255 [Description] Sets the print starting position based on the current position by using the horizontal or vertical motion unit.
  • Page 155 <ESC a> 0x1B 0x61 Select justiication Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ n ≤ 2 48 ≤ n ≤ 50 [Description] Aligns all data in one line to the speciied position. n selects the type of justiication as follows:...
  • Page 156 <GS $> 0x1D 0x24 Set absolute vertical print position in page mode Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ nL ≤ 255 0 ≤ nH ≤ 255 [Description] Set the absolute vertical print starting position for buffer character data in page mode.
  • Page 157 <GS L> 0x1D 0x4C Set left margin Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ nL, nH ≤ 255 [Description] Sets the left margin. • The left margin is set to [(nL + nH × 256) × (horizontal motion unit)] inches.
  • Page 158 <GS W> 0x1D 0x57 Set printing area width Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ nL, nH ≤ 255 0 ≤ nL + nH × 256) ≤ 640 [Description] Sets the printing area width to the area speciied by nL and nH.
  • Page 159 MECHANISM CONTROL COMMANDS <ESC i> 0x1B 0x69 Total cut Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Description] This command enables cutter operation. If there is no cutter, a disabling lag is set and any subse- quent cut commands will be ignored.
  • Page 160 <ESC m> 0x1B 0x6D Partial cut Valid for TL60 TL80 [Format] ASCII Decimal [Range] [Description] This command enables cutter operation. [Notes] The printer waits to complete all paper movement commands before it executes a partial cut. [Default] [Reference] [Example] 160 │ ESC/POS™...
  • Page 161 EJECTOR COMMANDS <FS P> 0x1C 0x50 Ejector management Valid for TG2480H (model with motorized ejector) TL60 (model with ejector) [Format] ASCII Decimal [Range] a = 0, 1 0 ≤ b ≤ 255 [Description] This command cuts the paper and present/retract the ticket according to a value as described in the following table: FUNZIONE Eject printed ticket...
  • Page 162 162 │ ESC/POS™ emulation...
  • Page 163 ANTI-JAMMING COMMANDS 0x1C 0xC1 Enable/disable automatic anti-jamming movement Valid for TG2460H [Format] ASCII 0xC1 Decimal [Range] n = 0x00, 0x01, 0x30, 0x31 [Description] This command enables or disables the automatic anti-jamming movement that must be performed when the inspection door is lifted.
  • Page 164 0x1D 0xDC Perform the anti-jamming movement Valid for TG2460H [Format] ASCII 0xDC Decimal [Range] [Description] This command performs the anti-jamming movement regardless of the settings of the command 0x1C 0xC1 and the position of the inspection door. [Notes] [Default] [Reference]...
  • Page 165 MISCELLANEOUS COMMANDS <ESC => 0x1B 0x3D Select peripheral device Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 1 ≤ n ≤ 3 [Description] Select the device to which the host computer sends data, using n as follows: FUNCTION...
  • Page 166 <ESC @> 0x1B 0x40 Initialize printer Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] Clears the data in the print buffer and resets the printer mode to that in effect when power was turned [Notes] • Same as hardware reset.
  • Page 167 <ESC K> 0x1B 0x4B Power ON / OFF led bar Valid for TG2460H (with illuminated paper mouth) TG2480H (with illuminated paper mouth) [Format] ASCII Decimal [Range] n = 0, 1, 2 [Description] Power on / off the led bar, using n as follows:...
  • Page 168 <ESC c 5> 0x1B 0x63 0x35 Enable/Disable front panel keys Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] n = 0, 1 [Description] Enables/disables the keys of the front panel: FUNCTION Disables front panel keys Enables front panel keys...
  • Page 169 <ESC x> 0x1B 0x78 Select speed / quality mode Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] [Description] Selects speed / quality mode based on the following values of n: FUNCTION Normal mode High speed [Notes] [Default] [Reference] [Example] │...
  • Page 170 0x1C 0xB0 Ticket length reading Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII 0xB0 Decimal [Range] [Description] Send this command to read the ticket length in millimeters. The device replies with 2 bytes that identify the length as follows: nH = tens...
  • Page 171 0x1C 0xC0 0x34 Total cut and automatic paper moving back Valid for TG2460H TL60 [Format] ASCII 0xC0 Decimal [Range] [Description] This command enables cutter operation and executes a total cut and automatic paper moving back; if there is no cutter, a disabling lag is set any subsequent cutting commands will be ignored.
  • Page 172 0x1C 0xC0 0xAA 0x0F 0xEE 0x0B 0x34 Total cut and automatic paper moving back Valid for TG2480H TL80 [Format] ASCII 0xC0 0xAA 0X0F 0XEE 0X0B 4 Decimal [Range] [Description] This command enables cutter operation and executes a total cut and automatic paper moving back; if there is no cutter, a disabling lag is set any subsequent cutting commands will be ignored.
  • Page 173 Decimal [Range] 1 ≤ n ≤ 3 49 ≤ n ≤ 51 [Description] Transmits the printer ID speciied by n follows: PRINTER ID SPECIFICATION 0xA7 (TG2460H) 0xA8 (TG2480H) 1, 49 Printer model ID 0xAC (TL80) 0xAD (TL60) Undeined 2, 50...
  • Page 174 <GS P> 0x1D 0x50 Set horizontal and vertical motion units Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ x, y ≤ 255 [Description] Sets the horizontal and vertical motion units to 1/x inch and 1/y inch respectively.
  • Page 175 <GS p> 0x1D 0x70 Print logo Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII Decimal [Range] 0 ≤ m ≤ 3 (No. logo) n = 0, 1, 2, 3 [Description] Print bit image speciied by m if stored in lash :...
  • Page 176 0x1D 0xE8 Setting minimum ticket length Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII 0xE8 Decimal [Range] 0 ≤ nL, nH ≤ 255 [Description] Thic command set the minimum ticket length as (nH * 256) + nL. [Notes] [Default] TG2460H...
  • Page 177 ALIGNMENT COMMANDS 0x1D 0xE7 Set notch distance Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII 0xE7 Decimal [Range] 0 ≤ nH ≤ 255 0 ≤ nL ≤ 255 [Description] Sets the distance in tenths of a mm of alignment point from the start of the notch.
  • Page 178 The following image shows a ticket with “Alignment Point” positioned at 8 mm from the notch. PRINTING DIRECTION Point of alignment Edge of the bleck mark Inter-notch distance 178 │ ESC/POS™ emulation...
  • Page 179 0x1D 0xF6 Align the ticket Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII 0xF6 Decimal [Descrizione] This command aligns the edge of the black mark at the point of alignment (see chapter Alignment for further explanation). [Notes] • Use the command 0x1D 0xE7 to set an offset between the black mark and the point of alignment •...
  • Page 180 0x1D 0xF8 Align at cut Valid for TG2460H TG2480H TL60 TL80 [Format] ASCII 0xF8 Decimal [Range] [Description] This command aligns the edge of the black mark at the point of alignment (see chapter Alignment for further explanation). [Notes] • Use the command 0x1D 0xE7 to set an offset between the black mark and the point of alignment •...
  • Page 181 ALIGNMENT │ 181 ALIGNMENT...
  • Page 183 ALIGNMENT COMMANDS The devices are equipped with a sensor that allows the use of alignment notch to handle rolls of tickets with pre-printed and ixed length ields; For further information, refer to the User Manual of each device. The commands available for managing the alignment of the ticket are the following: •...
  • Page 184 EXAMPLE 1 Commands sequence to print tickets with “alignment point” over the edge of the black mark (Notch Distance = 0mm set from SETUP). Cutting Line Cutting Line Printing Line Printing Line Sensor Sensor Command for text printing ‘TICKET 1’, 0x0A,’FIRST LINE’, 0x0A, ’SECOND LINE’, 0x0A Inizio Carta con tacca non allineata...
  • Page 185 Cutting Line Printing Line Sensor Cut command 0x1B 0x69 Paper is fed until the black mark is not aligned under the cutting line ... Cutting Line Printing Line Sensor ... The paper is cut. The paper is retracted under the printing. │...
  • Page 186 EXAMPLE 2 Commands sequence to print tickets with “alignment point” moved 10mm compared to the edge of the black mark (Notch Distance = 5mm set from SETUP). Cutting Line Cutting Line Printing Line Printing Line Sensor Sensor Command for text printing ‘TICKET 1’, 0x0A,’FIRST LINE’, 0x0A, ’SECOND LINE’, 0x0A Start...
  • Page 187 Cutting Line Printing Line Sensor Cut command 0x1B 0x69 Paper is fed until the black mark is not aligned at a distance of 5mm (notch distance) from the cutting line ... Cutting Line Printing Line Sensor ... The paper is cut. The paper is retracted under the printing.
