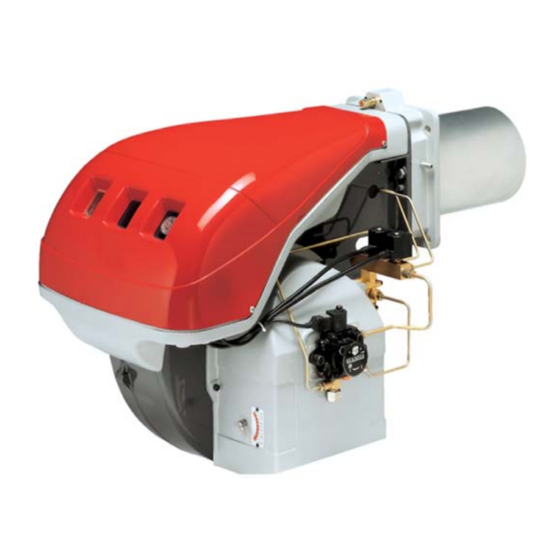

Light oil burner
Hide thumbs Also See for RL 130:
Table of Contents

Advertisement

Quick Links

Installation, use and maintenance instructions
Light oil burner
GB
Two stage operation
CODE
MODEL
TYPE
20057368
RL 130
57368X
20058178 (1) - 08/2012
