Metra Electronics 95-6551 Installation Instructions

Dodge ram 1998-2001

Download this manual

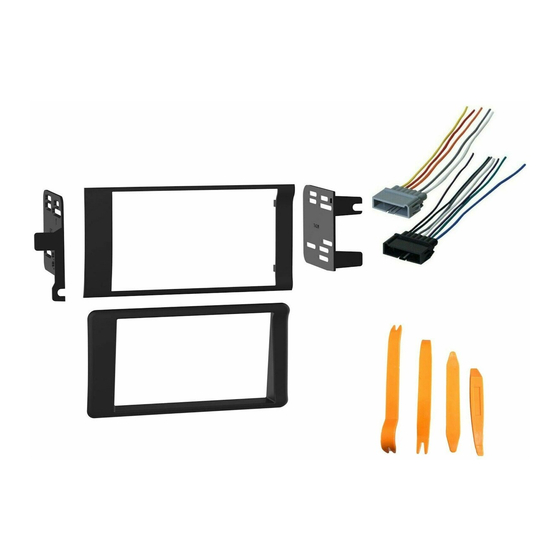

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Cut template

Metra. The World's Best Kits.

Dodge Ram

Visit

MetraOnline.com

specific applications

KIT FEATURES

• ISO DDIN radio provision

MetraOnline.com

1998-2001

for more detailed information about the product and up-to-date vehicle

95-6551

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation ....................................................2-3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1817

Antenna Adapter: Not required

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 3/8" Socket wrench • Cutting tool • Scribe tool

Attention!

Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

REV. 1/30/19 INST95-6551

Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/30/19 INST95-6551...
Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Open the power outlet cover and 1. Place the cut template over the remove (1) Phillips screw. (Figure A) dashboard trim panel. (Figure A) Note: No screw present for year 2000 2. Using a scribe tool, score the area in the models.
Page 3 KIT PREPARATION KIT ASSEMBLY (CONT.) 4. Clip the radio trim panel onto the 1. Secure the radio brackets to the radio dashboard trim panel. (Figure C) using the screws supplied with the radio. (Figure A) 5. Cut the sub-dash to allow room for the 2.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 1/30/19 INST95-6551...
