Metra Electronics 95-6518B Installation Instructions

Ram trucks 2013-up (without 8.4 inch touchscreen)

Download this manual

INSTALLATION INSTRUCTIONS FOR PART 95-6518B

Ram Trucks 2013-up

Modifications to factory radio cavity required for this installation

KIT FEATURES

• Double DIN radio provision

• Painted matte black

KIT COMPONENTS

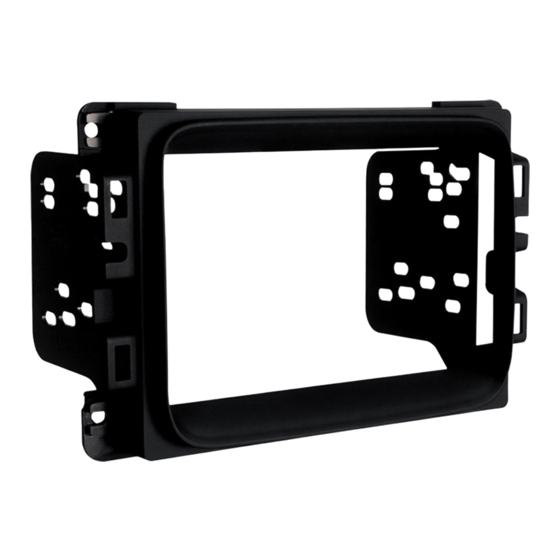

• A) Radio housing • B) Brackets

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: • XSVI-6523-NAV Chrysler interface 2013-up

Antenna Adapter: • 40-EU55 – amplified antenna adapter

APPLICATIONS

(without 8.4 inch touchscreen)

95-6518B

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Socket Wrench

CAUTION: Metra recommends disconnecting the

negative battery terminal before beginning any

installation. All accessories, switches, and especially

air bag indicator lights must be plugged in before

reconnecting the battery or cycling the ignition.

NOTE: Refer to the instructions included with the

aftermarket radio.

Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-6518B APPLICATIONS Ram Trucks 2013-up (without 8.4 inch touchscreen) Modifications to factory radio cavity required for this installation 95-6518B KIT FEATURES • Double DIN radio provision • Painted matte black KIT COMPONENTS • A) Radio housing • B) Brackets TOOLS REQUIRED •...
Page 2: Dash Disassembly
95-6518B Dash Disassembly 1. Remove liner inside tray at the top center of the dash and remove two torx screws. (Figure A) 2. Unsnap and remove radio panel. (Figure B) 3. Remove four screws and remove radio. (Figure C) 4. The factory rear support will need...
Page 3: Kit Assembly
95-6518B Kit Assembly Double DIN radio provisions Note: For proper orientation, the Top of housing locating tabs on the Radio Housing are more to the top of the kit than bottom. (Figure A 1. Rotate the brackets into the radio housing. (Figure B) 2.
