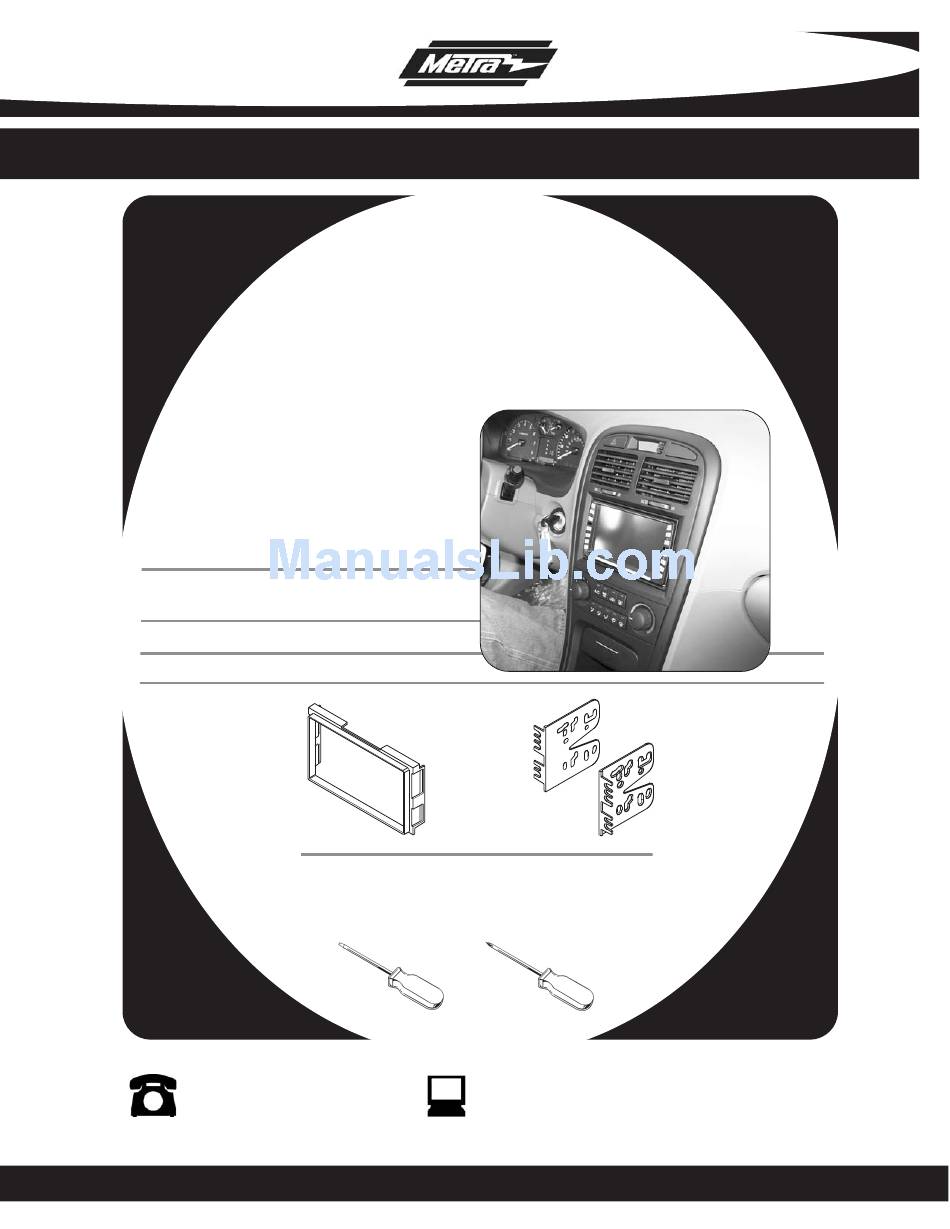

INSTALLATION INSTRUCTIONS FOR PART 95-7313
2001-2006 Kia Optima
95-7313
KIT FEATURES
• DDIN Head Unit Provision
• STACKED ISO DIN Head Unit Provision
KIT COMPONENTS
A) DDIN Trim Plate | B) DDIN Brackets
A
1-800-221-0932
© COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION
APPLICATIONS
2001-2006 Hyundai Elantra
2003-2008 Hyundai Tiburon
2002-2005 Hyundai Sonata
(2006 Early Production Models Only)
TOOLS REQUIRED:
Flat Blade Screwdriver I Phillips Screwdriver
www.metraonline.com
B

Advertisement

loading

Related Manuals for Metra Electronics 95-7313

Summary of Contents for Metra Electronics 95-7313

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-7313 2001-2006 Hyundai Elantra 2003-2008 Hyundai Tiburon 2002-2005 Hyundai Sonata 2001-2006 Kia Optima 95-7313 KIT FEATURES • DDIN Head Unit Provision • STACKED ISO DIN Head Unit Provision KIT COMPONENTS A) DDIN Trim Plate | B) DDIN Brackets...
  • Page 2 95-7313 Dash Disassembly ... 1-4 Kit Assembly ... 5-6 Final Assembly ... 7...
  • Page 3 95-7313 2001-2006 HYUNDAI ELANTRA Disconnect the negative battery terminal to prevent an accidental short circuit. Remove (2) Phillips screws from under the instrument cluster. Remove ashtray then remove (2) Phillips screws in ashtray cavity. Unclip and remove panel surround- ing radio. (Figure A) Remove (4) Phillips screws securing radio.
  • Page 4 95-7313 2003-2008 HYUNDAI TIBURON Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the radio trim panel starting with the bottom edge. (Figure A) Remove (2) Phillips screws securing radio.
  • Page 5 95-7313 2002-2005 HYUNDAI SONATA 2001-2005 KIA OPTIMA Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove entire panel sur- rounding radio. (Figure A) Remove (4) Phillips screws securing radio. The rear support bar in the sub dash will need to be cut and removed for aftermarket radio clearance.
  • Page 6 95-7313 2006 KIA OPTIMA Disconnect the negative battery ter- minal to prevent an accidental short circuit. Unclip and remove panel surround- ing shifter. (Figure A) Remove (2) Phillips screws at bottom of panel surrounding radio and cli- mate control then unclip and remove entire panel.

  • Page 7: Double Din Head Unit Provision

    (Figure B) NOTE: For the 2003-2008 Hyundai Tiburon applications you will need to cut and remove the bottom mount- ing tabs on the DDIN brackets. (Figure C) 95-7313...

  • Page 8: Stacked Iso Din Head Unit Provision

    95-7313 STACKED ISO DIN HEAD UNIT PROVISION Slide the appropriate bracket into the trim plate aligning the holes in the trim plate to the clips on the bracket. (Figure A) Slide the stacked ISO DIN units into the trim plate bracket assembly and secure the unit to the kit using the screws supplied with the head unit.

  • Page 9: Final Assembly

    95-7313 FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
  • Page 10 95-7313 NOTES...
  • Page 11 95-7313 NOTES...
  • Page 12 95-7313 INSTRUCTIONS 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004-08 METRA ELECTRONICS CORPORATION INST95-7313 REV. 05/20/08...
