Metra Electronics 95-6546B Installation Instructions

Jeep grand cherokee1999-2004

Download this manual

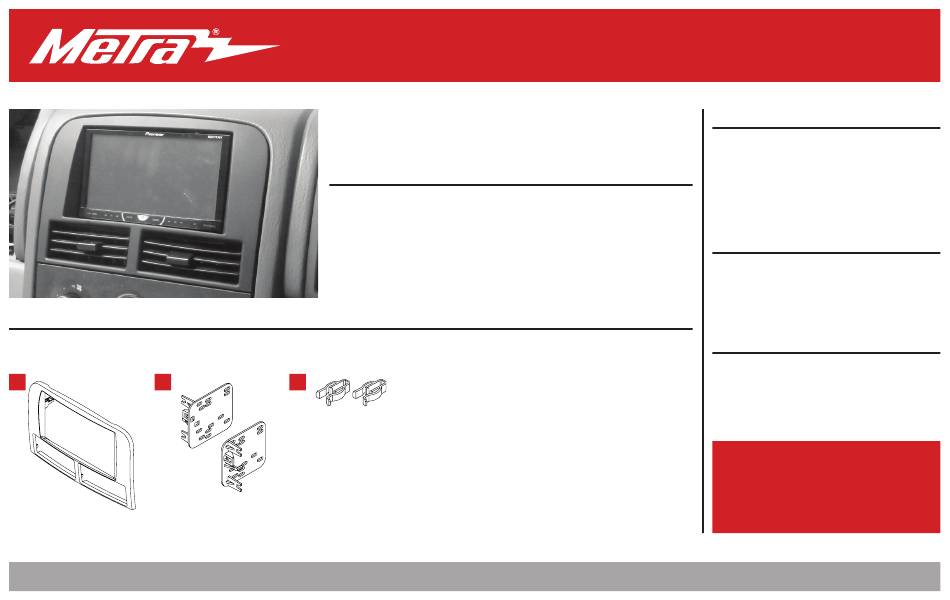

KIT COMPONENTS

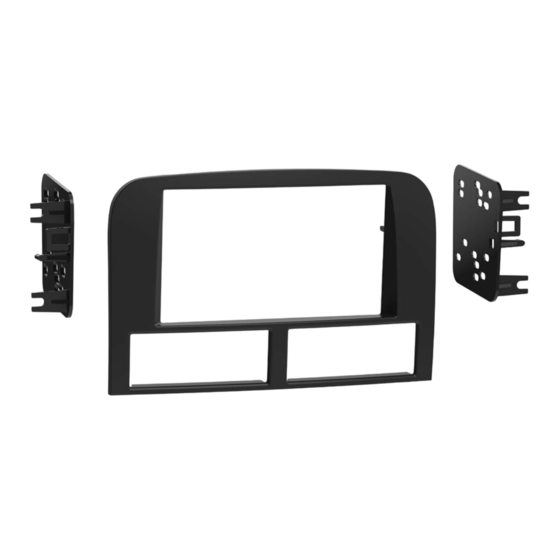

• A) Radio trim panel • B) Radio brackets • C) (2) Panel clips

Metra. The World's Best Kits.

Jeep Grand Cherokee

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

MetraOnline.com

1999-2004

95-6546B

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-1817 (99-01) • 70-6502 (02-04)

Antenna Adapter: N/A (99-01) • 40-CR10 (02-04)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Cutting tool • Grinding tool

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

REV. 4/5/18 INST95-6546B

Page 1 Also, do not remove the factory radio with the key in the on position, or while the vehicle is running. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 4/5/18 INST95-6546B...
Page 2 DASH DISASSEMBLY KIT PREPARATION 1. Unclip and remove the radio trim panel. 1. Carefully grind or cut away the (4) plastic (Figure A) welded tabs securing the a/c vents to the radio trim panel, then remove the vents. 2. Remove (4) Phillips screws securing the (Figure A) radio, then unplug and remove the radio.
Page 3 KIT ASSEMBLY 1. Secure the radio brackets to the radio using the screws supplied with the radio. (Figure A) 2. Locate the factory wiring harness and antenna connector in the dash and complete all necessary connections to the radio. Metra recommends using the proper mating adapter from Metra and/or Axxess.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2018 METRA ELECTRONICS CORPORATION REV. 4/5/18 INST95-6546B...
