DVP04PT-S
DVP04PT-S Platinum Temperature Sensors

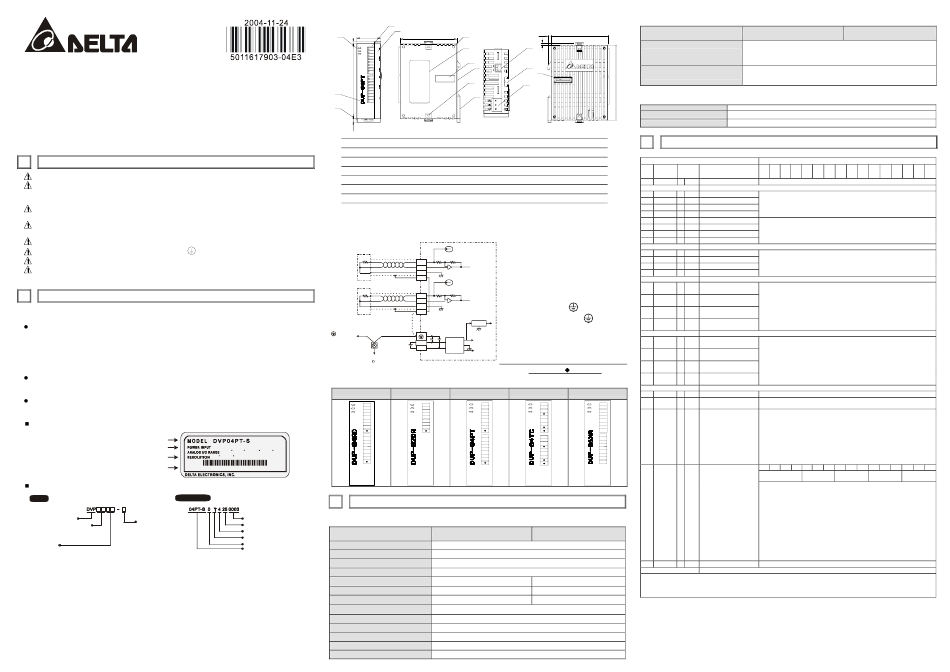

Instruction Sheet
1 WARNING
Please carefully read this instruction thoroughly prior to use the DVP04PT-S.
In order to prevent electric shock, do not touch the terminals or conduct any maintenance while
PLC power is ON. DO NOT open the PLC. Only qualified personel or Delta staff is allowed to
conduct any internal electrical work on the PLC.
This is an OPEN-TYPE device and certified to meet IEC 61131-2 (UL 508) safety requirements
when installed in an enclosure.
The DVP04PT-S must be kept under the environment away from high temperatures, high humidity,
exceessive vibration, corrosive gases, liquids, airborne dust, and metallic particles.
Do not apply AC power to any of the input/output terminals, or it may damage the DVP04PT-S.
Make sure that the DVP04PT-S is properly grounded , to prevent any electromagnetic noise.
Use wires with resistance when connecting the platinum resistance thermister (RTD) to the PLC.
Please keep the wires as short as possible when connecting RTD to PLC and keep power lead
as far away as possible from I/O wires to prevent noise interference.
2 INTRODUCTION
2.1 Model Explanation and Peripherals
Thank you for choosing DELTA DVP Series PLC. The DVP04PT-S allows the connection of four
platinum temperature sensors (PT100 3-WIRE 100Ω 3850 PPM/°C(DIN 43760 JIS C1604-1989)).
The PLC converts the sensors input to a 14-bit digital signal, which then be manipulated using TO
and FROM commands in the ladder logic program. There are 49 Controlled Registers (CR, each
register has 16-bit) in each module.
DVP04PT-S is able to share the information via RS-485 communication or by direct connect to
DVP-SS main processing unit. Power supply and main processing units are sold separately.
DVP04PT-S displays both Centigrade and Fahrenheit. The input resolution for Centigrade is 0.1
degrees and for Fahrenheit is 0.18 degrees.
Nameplate Explanation
P L C m o d e l
Input power Supply Spec.
Analog Input /Output Module Spec.
Barcode, series and version
V X .X
Model Explanation
Model Serial Number
Product Series
Input + Output points
S: for SS series MPU
P: for EP series MPU
H: for EH series MPU
Model type
AD: Analog input module XA: Analog input/output mixed module
RT: Resistor Thermocouple
DA: Analog output module
HC: Input module of high-speed counter
PT: Platinum temperature sensors (PT-100)
PU: single axis positioning unit
TC: Thermocouple sensors (Type J/K)
2.2 Product Profile and Outline
4
1
25.20
3.00
L+
L- C
H
I+ 1
FG
L+
C
L-
H
I+ 2
FG
●
L+
C
L-
H
90.00
I+ 3
FG
L+
2
L- C
H
I+
4
FG
●
3
4.00
1. Status indicator (Power, RUN and ERROR)
2. Model Number
3. DIN rail clip
4. I/O terminals
5. I/O point indicator
6. Mounting holes
7. Specification Label
2.3 External wiring
PT100
Shielded*1
PT100
Shielded*1
terminal of
power module
*3
System
Grounding
Class 3 Grounding
(100 of less)
2.4 Terminals of analog module
DVP04AD-S
V+
I+
COM
FG
V+
I+
COM
FG
V+
I+
COM
FG
20.4VDC ~ 26.4VDC
V+
-200 C ~ 600 C or -328 F ~ 1112 F I+
COM
0.1 C or 0.18 F
FG
0 4 P T - S 0 T 3 2 5 0 0 0 3
MADE I N XXXXX X
3
Production series 3.1 Function Specifications
Production week
Production year (2004)
Platinum Temperature Module (04PT)
Production place (Taoyuan)
Serial number of version
Power supply voltage
Production Model
Analog input channel
Sensors type
Current excitation
Temperature input range
Digital conversion range
Resolution
Overall accuracy
Response time
Isolation method
Digital data format
Average function
Self diagnostic function
5
3.4
6
60.00 60.00
3.00
11
7
8
12
10
14
9
13
3
Unit : mm
8. Extension port
9. Extension Clip
10. DIN rail location (35mm)
11. RS-485 Communication port
12. Extension Clip
13. DC Power input
14. Extension port
Note 1: Use only the wires that are packed
with the temperature sensor (PT
1mA
100) for analog input and separate
from other power line or any wire
CH1
L+
that may cause noise. Please use
L-
I-
3-wire for PT 100.
1mA
FG
AG
Note 2: Terminal FG is grounded for noise
CH4
suppression.
L+
L-
I-
Note 3: Please connect
FG
AG
module terminal and
5V
*2
DVP-04PT-S platinum temperature
AG
sensors module terminal to system
+15V
DC/ DC
24+
AG
24- Converter earth ground.
-15V
Warning: DO NOT connect wires to the No
Connection ( ) terminals.
DVP02DA-S DVP04PT-S DVP04TC-S
V+ L+ L+
I+ L- L-
I- SLG
COM
FG FG
V+ L+ L+
I+ L- L-
COM I- SLG
FG FG
L+
L+
L-
L-
I-
SLG
FG
L+
L+
L-
L-
I- SLG
FG
STANDARD SPECIFICATIONS
Centigrade (°C) Fahrenheit
24 VDC (20.4VDC~26.4VDC) ( –15%~+10%)
4 channels per module
3-WIRE PT100Ω 3850 PPM/°C(DIN 43760 JIS C1604-1989)
1 mA
-200°C~600°C -328°F~1112°F
K-2000~K6000 K-3280~K11120
14 bits(0.1°C) 14 bits(0.18°F)
±0.5% of full scale of 25°C(77°F), ±1% of full scale during 0~55°C (32~131°F)
200 ms ×channels
Isolation between digital and analog circuitry. There is no isolation between channels.
2's complement of 16-bit, (13 Significant Bits)
Yes (CR#2~CR#5 may be set and the range is K1~K4096)
Yes
Platinum Temperature Module (04PT)
MODBUS ASCII or RTU Mode. Communication baud rate 4800 / 9600 / 19200 / 38400 /
57600 / 115200. For ASCII mode, date format is 7Bits, even, 1 stop bit (7 E 1), while
Communication mode (RS-485)
RTU mode, date format is 8Bits, even, 1 stop bit (8 E 1). RS-485 is disabled when the
DVP04AD-S is connected in series with an MPU.
If DVP04PT-S modules are connected to MPU, the modules are numbered from 0 – 7. 0
Connection to a DVP-PLC MPU in series is the closest and 7 is the furthest to the MPU. 8 modules is the max and they do not
occupy any digital I/O points of the MPU.
90.00
3.2 Other Specification
Maximum Power Consumption 2W at 24 VDC (20.4VDC~28.8VDC) ( -15 % ~ +20 %)
Environment Condition and Wiring Follow the DVP-PLC MPU.
Static Electricity Prevention All places between terminals and ground comply with the spec.
4 CR (Controlled Register)
DVP04PT-S platinum temperature sensors
RS-485
CR
Latched Register name b15 b14 b13 b12 b11 b10 b9
Parameter
No.
address
#0 R Model type
H 4064 ○
#1 Reserved
#2 H 4066 ○ R/W CH1 average number
#3 ○ R/W CH2 average number
H 4067
#4 H 4068 ○ R/W CH3 average number
#5 H 4069 ○ R/W CH4 average number
#6 R CH1 average degrees(°C)
H 406A ╳
#7 H 406B ╳ R CH2 average degrees(°C)
#8 R
H 406C ╳ CH3 average degrees(°C)
#9 H 406D ╳ R CH4 average degrees(°C)
#10~ #11 Reserved
#12 H 4070 ╳ R CH1 average degrees(°F)
#13 R CH2 average degrees(°F)
H 4071 ╳
#14 H 4072 ╳ R CH3 average degrees(°F)
#15 R
H 4073 ╳ CH4 average degrees(°F)
#16~ #17 Reserved
Present temperature of
#18 H 4076 ╳ R
CH1 (°C)
Present temperature of
#19 H 4077 ╳ R
CH2 (°C)
power supply Present temperature of
#20 H 4078 R
╳
CH3 (°C)
Present temperature of
#21 H 4079 R
╳
CH4 (°C)
#22~ #23 Reserved
Present temperature of
#24 H 407C ╳ R
CH1 (°F)
Present temperature of
#25 H 407D ╳ R
CH2 (°F)
Present temperature of
#26 H 407E ╳ R
CH3 (°F)
Present temperature of
#27 H 407F ╳ R
CH4 (°F)
#28~ #29 Reserved
DVP06XA-S #30 H 4082 ╳ R Error status
○ R/W Communication address
#31 H 4083
V+
setting
I+
COM
#32 H 4084 ○ R/W Communication baud rate
V+
setting
I+
COM
V+
I+
COM
V+
I+
COM
V+
I+
COM
V+
I+
COM
#33 H 4085 ○ R/W Reset to factory setting b15 b14 b13 b12 b11 b10 b9
(°F)
#34 H 4086 ○ R Software version
#35~#48 System used
○ means latched.
╳ means not latched.
R means read data by using FROM command or RS-485.
W means write data by using TO command or RS-485.
Explanation:
1. CR#0: PLC model type.
2. CR#1, CR#10, CR#11, CR#16, CR#17, CR#22, CR#23, CR#28, CR#29 are reserved.
3. CR#2 ~ CR#5: Used to set the number piece of input readings used for the calculation of average
temperature. The available range is K1~K4096 and factory setting is K10.
Centigrade Fahrenheit
(°C) (°F)
Explanation
b8 b7 b6 b5 b4 b3 b2 b1 b0
System used, data length is 8bits (b7~b0). DVP-04PT model code = H 8A
Number piece of readings used for the calculation of "average" temperature on
channels CH1~CH4.
Setting range is K1~K4096 and factory setting is K10.
Average degrees for channels CH1~CH4. (unit: 0.1 degrees C)
Average degrees for channels CH1~CH4. (unit: 0.1 degrees F)
Present temperature of channels CH1~CH4. (unit: 0.1 degrees C)
Present temperature of channels CH1~CH4. (unit: 0.1degrees F)
Data register stores the error status. Refer to the fault code chart for details.
RS-485 communication address.
Setting range is 01~255 and factory setting is K1
Communication baud rate (4800, 9600, 19200, 38400, 57600 and 115200 bps).
b0: 4800 bps (bit/sec).
b1: 9600 bps (bit/sec). (factory setting)
b2: 19200 bps (bit/sec).
b3: 38400 bps (bit/sec).
b4: 57600 bps (bit/sec).
b5: 115200 bps (bit/sec).
b6~b13: Reserved.
b14: switch between low bit and high bit of CRC code (RTU mode only)
b15: RTU mode.
b8 b7 b6 b5 b4 b3 b2 b1 b0
Definition of ERR CH4 CH3 CH2 CH1
LED
Example: Setting of CH1
1. b0 Reserved
2. b1 Reserved
3. b2: Set to 1 and PLC will be reset to factory settings.
Definition of ERR LED: b12~b15=1111(factory settings)
1. b12 corresponds to CH1: when b12=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
2. b13 corresponds to CH2: when b13=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
3. b14 corresponds to CH3: when b14=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
4. b15 corresponds to CH4: when b15=1, scale exceeds the range or external
contact has no connection, ERR LED flashes.
Display the software version in hexadecimal. Example: H 010A = version 1.0A.
