Metra Electronics 95-7376B Installation Instructions

Hyundai elantra 2017-2018

Download this manual

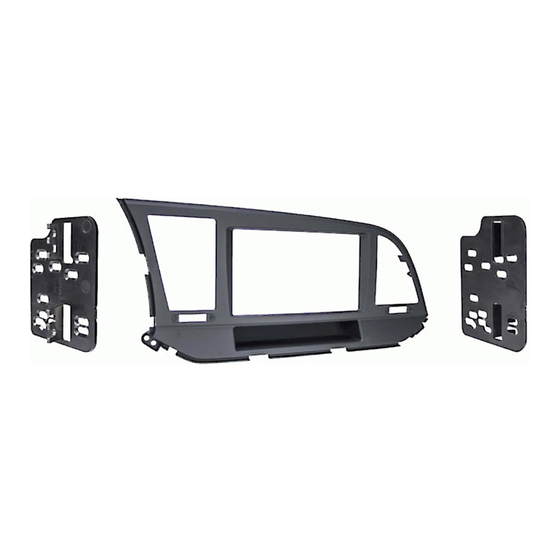

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets

Metra. The World's Best Kits.

Hyundai Elantra

Visit

MetraOnline.com

for more detailed information about the product and up-to-date vehicle

specific applications

KIT FEATURES

• ISO DDIN radio provision

• Painted matte black

MetraOnline.com

2017-2018

95-7376B

I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................3

Kit Assembly ..........................................................3

WIRING & ANTENNA CONNECTIONS (sold separately)

Wiring Harness: 70-7304 (w/o 7-inch display radio)

• 70-7306 (with 7-inch display radio)

Antenna Adapter: N/A (w/o 7-inch display radio)

• 40-KI11 (with 7-inch display radio)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

Attention!

Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

REV. 10/27/19 INST95-7376B

Page 1 When testing the aftermarket equipment, ensure that all factory equipment is connected before cycling the key to ignition. Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/27/19 INST95-7376B...
Page 2 DASH DISASSEMBLY 1. Open the passenger front door, then unclip 4. Unclip and remove the silver trim panel and remove the trim panel from the side from under the driver’s side A/C vent. of dashboard. Remove the (1) Phillips (Figure D) screw securing the silver trim panel.
Page 3 KIT PREPARATION KIT ASSEMBLY 1. Remove the (3) Phillips screws securing 1. Attach the radio brackets to the radio the A/C vents to the factory radio trim using the screws supplied with the radio. panel and then remove. (Figure A) (Figure A) 2.
Page 4 Log onto www.installerinstitute.com or call 800-354-6782 for more information and take steps toward a better tomorrow. Metra recommends MECP certified technicians Metra. The World’s Best Kits. MetraOnline.com ® © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/27/19 INST95-7376B...
