ECHNICAL INFORMATION
Models No.
Description
C
ONCEPTION AND MAIN APPLICATIONS

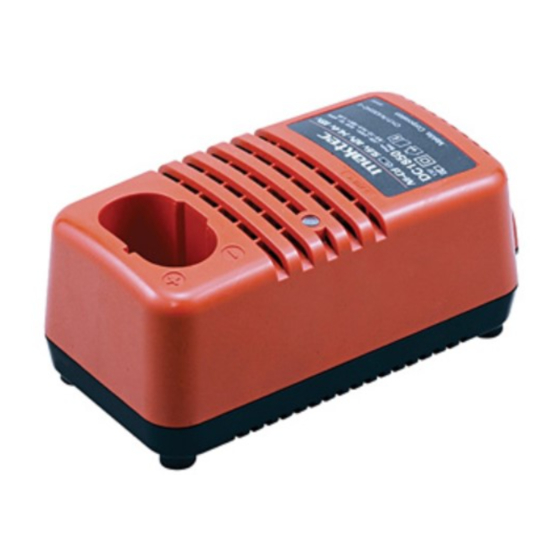

DC1850 has been developed for charging 9.6V - 18V MAKTEC
series batteries of 1.3Ah, namely for charging the following
batteries.
* Battery 9050 9.6V/1.3Ah for model MT060 and MT062
* Battery 1250 12V/1.3Ah for model MT061 and MT063
* Battery 1450 14.4V/1.3Ah for model MT064
* Battery 1850 18V/1.3Ah for model MT065
The finish of charging process is sensed by thermostat.
<Note>
The batteries to be charged with DC1850 are limited to
1.3Ah Ni-Cd batteries.
S
pecification
Voltage (V)
110 - 120
220
230 - 240
Output voltage (D/C)
Output current (D/C)
Charging time
Net weight: kg (lbs)
Cord length: m (ft)
DC1850
Charger
Current (A)
Cycle (Hz)
50 - 60
50 - 60
50 - 60
9.6 V, 12 V, 14.4 V, 18 V
1.4 A
Approx. * 60 min.
1.3 (2.9)
2.0 (6.6)
H
Continuous Rating (W)
Input
45
45
45
Approx.* 60 min.: This figure may be changed depending
on the condition of battery or room temperature.

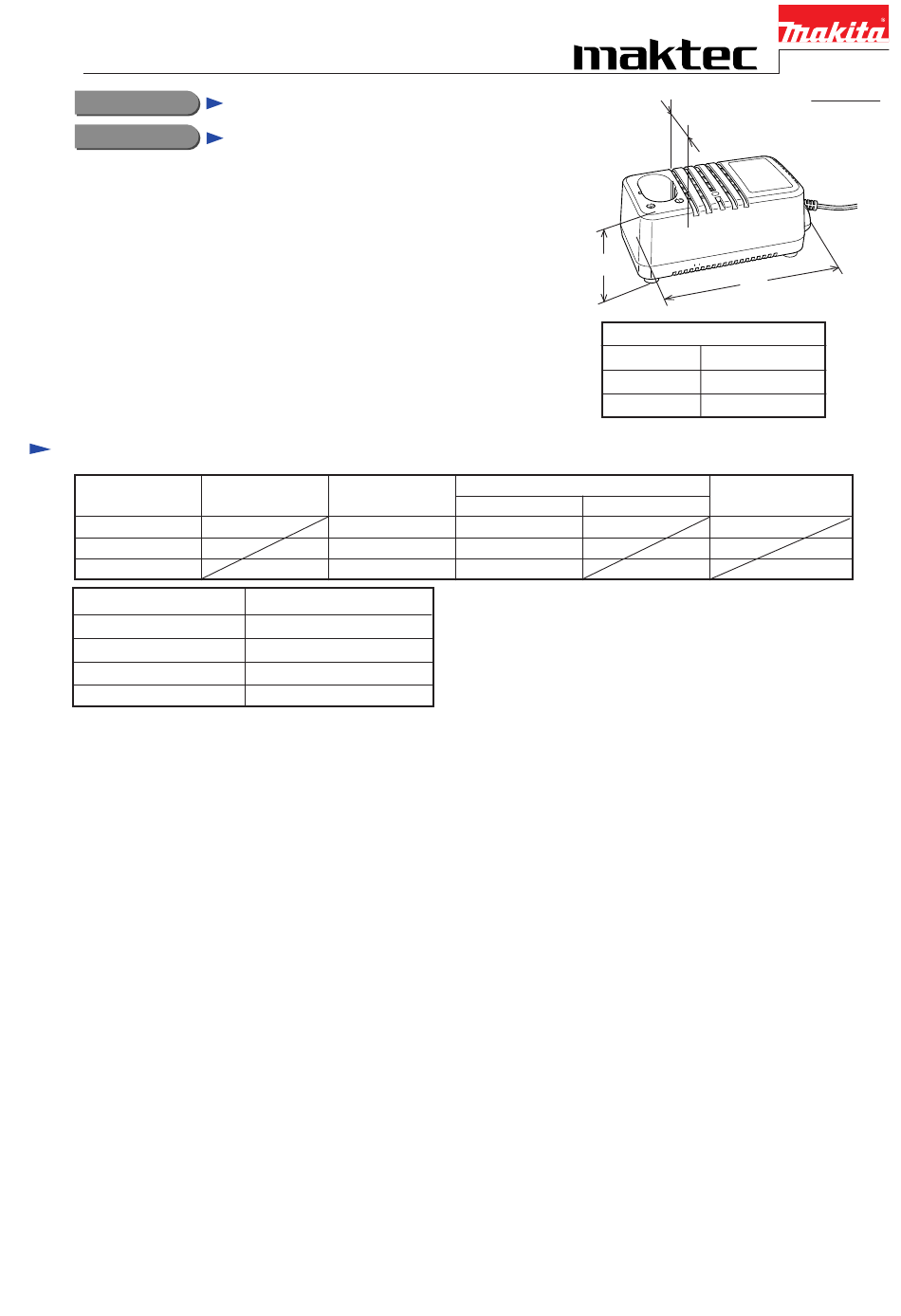

PRODUCT
W
L
Dimensions : mm ( " )
Length (L)
169 (6-5/8)
Width (W)
86 (3-3/8)
Height (H)
75 ( 2-15/16 )
Max. Output (W)
Output
P 1 / 3
