ASSEMBLY (cont.)
5

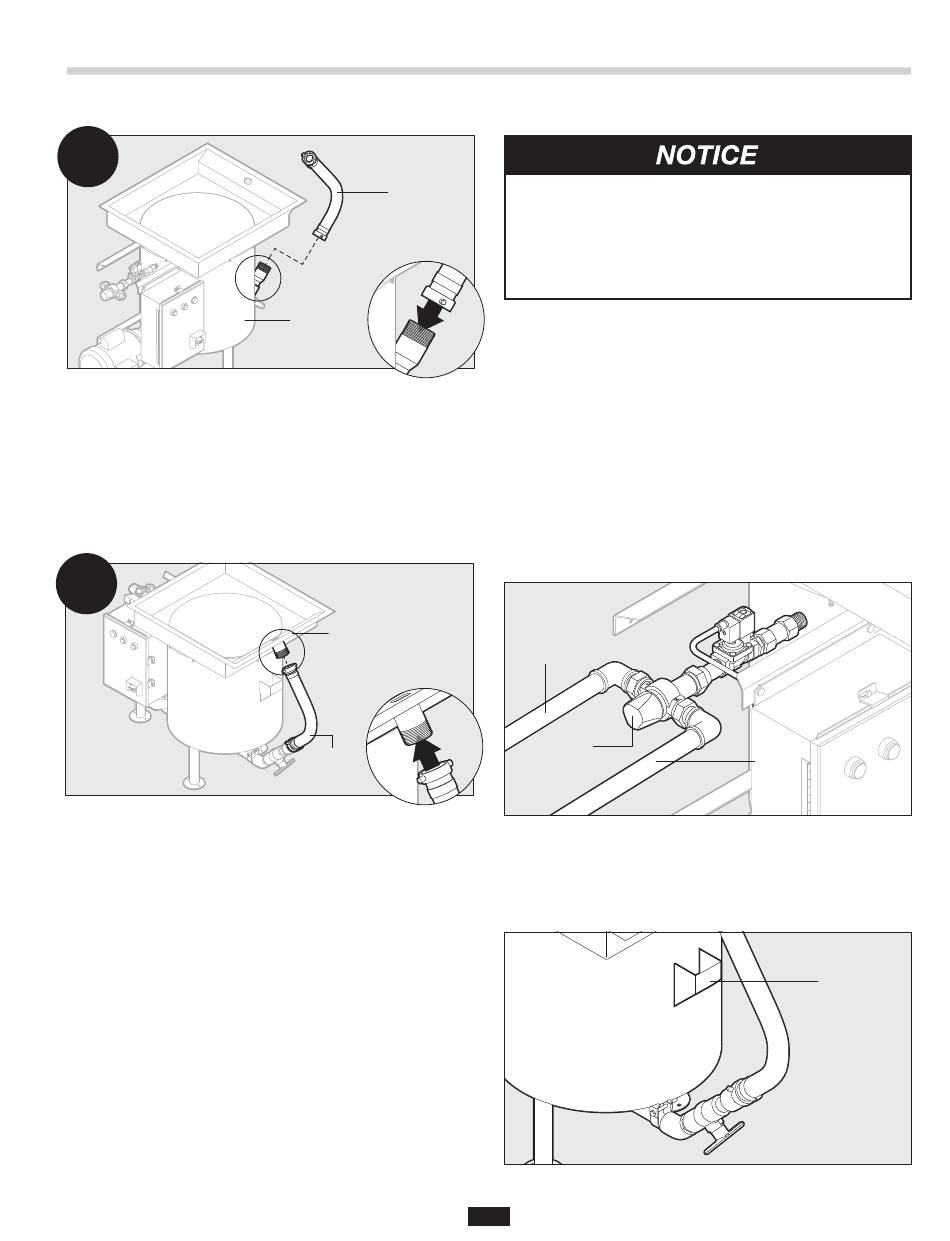

Connect plume hose to collector tank. Turn brass
coupling clockwise to secure.
IMPORTANT NOTES:
• DO NOT cross thread brass fitting onto plastic

plumbing.

• For ease of installation, connect plume hose first to
waste collector tank then to waste collector tray.
6
Connect plume hose to waste collector tray.
Installation Instructions
Plume
Hose
Waste
Collector
Tank
Waste
Collector
Tray
Plume
Hose
PLUMBING
PROPERTY DAMAGE
• Installation must comply with all local plumbing
codes.
• If water pressure exceeds the recommended
80 psi, pressure regulators should be used.

WATER CONNECTIONS

Plumb a hot and a cold water supply line to mixer valve
(see Figure 8). Connections are 1/2" NPT.
IMPORTANT NOTES:
• Mixing valve can be relocated.
• Hot and cold water lines must match the markings on
mixer valve. If lines are reversed, mixer valve will not
operate properly after adjustment.
• It is recommended that ball type shutoff valves be
installed in line with the cold and hot water lines.
• A minimum of 30 psi at the mixer valve is needed for
the waste collector to operate correctly.
Cold Water
Supply Line
Mixer
Valve
Figure 8. Water Connections
IMPORTANT NOTE: This air gap meets ASME
A112.1.2-2012 standard and eliminates the need for a
vacuum breaker installed with the system (see Figure 9).
Figure 9. Air Gap
7
Hot
Water
Supply
Line
Air Gap
