Cooper Lighting Corelite Class R2R Installation Instructions

Class R2R -
1, 2, or 3 lamp T5/T5HO recessed retrofit
WARNINGS
1). WARNING! Risk of Electric Shock. Disconnect power at fuse or circuit breaker before
installing or servicing.
2). WARNING! - Risk of Fire/Electric Shock. If not qualified, consult an electrician.
3). WARNING! – Risk of fire or electric shock. Luminaires wiring, ballasts, or other electrical
parts may be damaged when drilling for installation of reflector kit hardware. Check for
enclosed wiring and components.

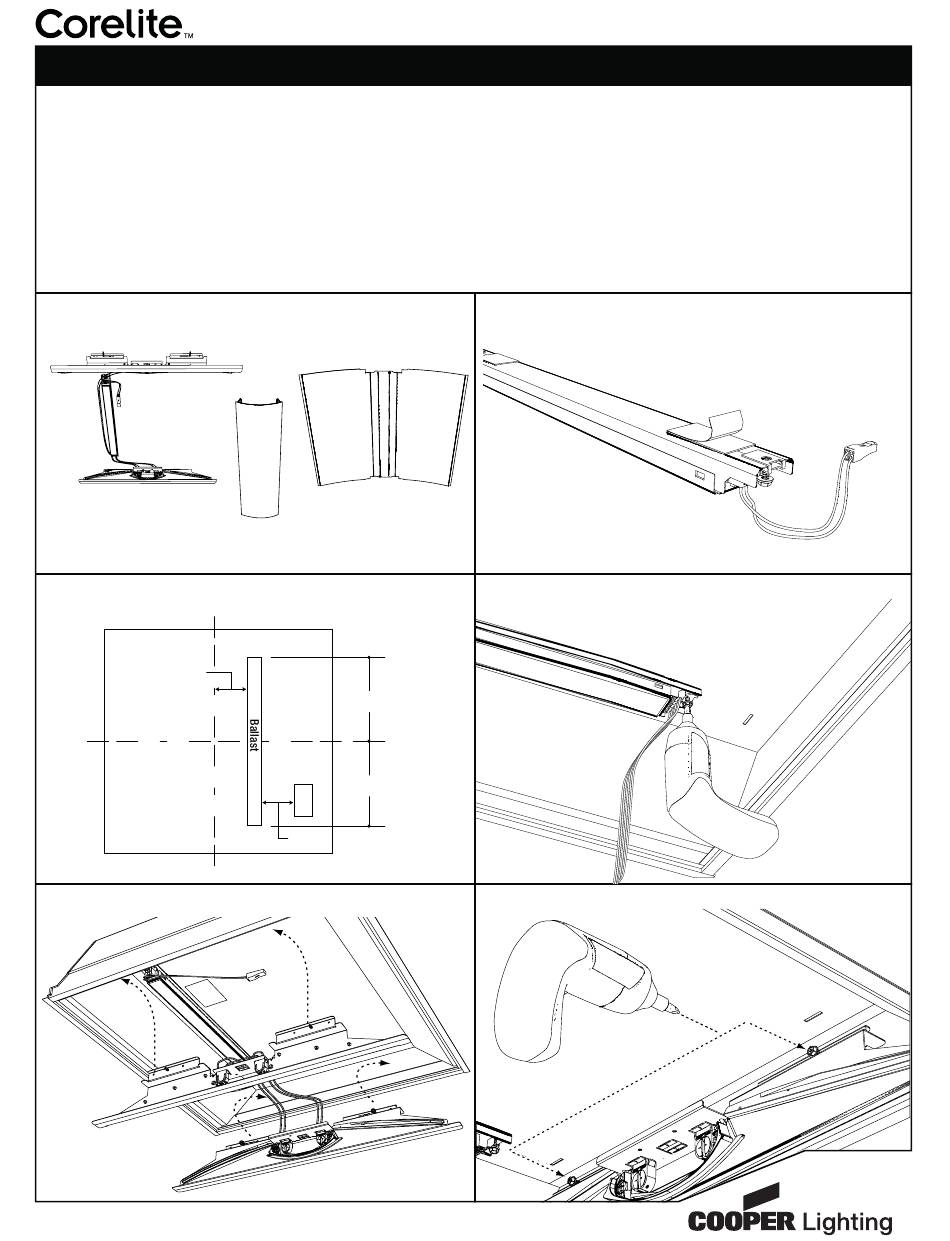

1. Unpack Class R2R Retrofit components.
Ballast / Bracket Assembly
3. Affix ballast to the housing at least 4" from center of fixture and 4" from power
line input location.
4" min.
5. Prepare to install end brackets by sliding them into the ends of the housing.
Corelite 4675 Holly St. Denver, CO 80216 Ph. (303) 393-1522 Fax (303) 393-1477
ADE100076 rev 050410
Reflector
Lens
EQ
EQ
4" max.
INSTALLATION INSTRUCTIONS - page 1 of 2
NOTES
1). NOTE! - Reflector kit installation requires knowledge of fluorescent lighting systems and
electrical systems. Install this kit only in the luminaires that have the construction features and
dimensions shown in the photographs and/or drawings.
2). NOTE! - This product must be installed in accordance with the applicable installation
code by a certified electrician, familiar with the construction and operation of the product
and hazards involved.
3). NOTE! - Only those open holes indicated in the photographs and/or drawings may be made
or altered as a result of kit installation. Do not leave any other open holes in an enclosure of
wiring or electrical components.
4). NOTE! - To prevent wiring damage or abrasion, do not expose wiring to edges of sheet
metal or any sharp objects.
5). NOTE! - DRY LOCATIONS ONLY
6). NOTE! - Disconnect all power before proceeding.
7). NOTE! - Remove all internal components from existing luminaire to be retrofitted - louvers,
lamps, ballast cover, ballast, socket tracks, lamp holders, and reflector from the housing.
Please dispose of lamps and ballasts properly, and recycle the other components, if possible.
2. After removing existing fixture & components, remove backing from double-
stick adhesive on the R2R ballast.
4. Secure the ballast with the two captive self-drilling screws at each end.
6. Secure the end brackets with the two captive self-drilling screws at each end.
2'x2' / 2'x4'
